1448x1072 high definition, 6inch E-Ink display HAT for Raspberry Pi, black/white, 16 gray scale
- 1000 Piece / Pieces per Month
You May Like
-

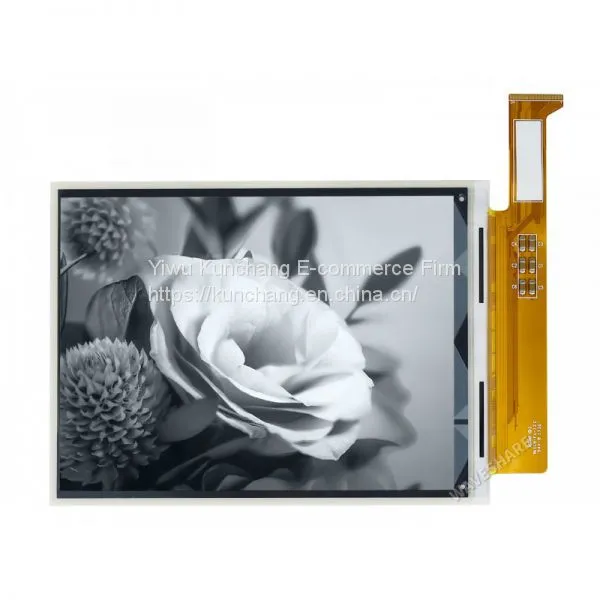

1448 x 1072 high definition, 6inch E-Ink raw display, black/white, 16 gray scale, without PCB
-
800x600, 6inch E-Ink display HAT for Raspberry Pi, IT8951 controller, USB/SPI/I80/I2C interface
-
Compute Module IO Board with PoE Feature, for Raspberry Pi CM3 / CM3L / CM3+ / CM3+L
-
13.3inch Magic Mirror, Voice Assistant, Touch Control computer panel
-
EVK407I, STM32F4 Development Board
-
XCore407I, STM32F4 Core Board
Product Description

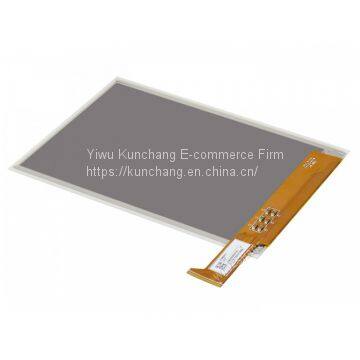

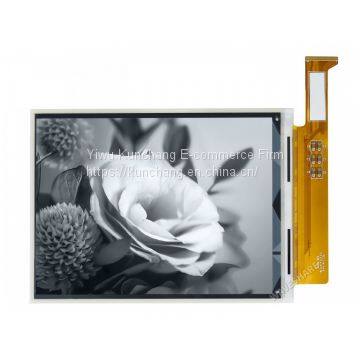

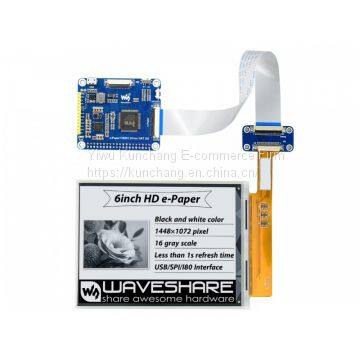

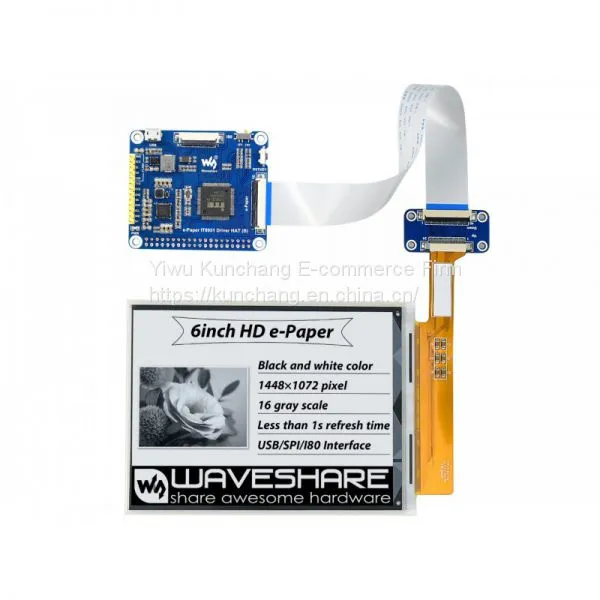

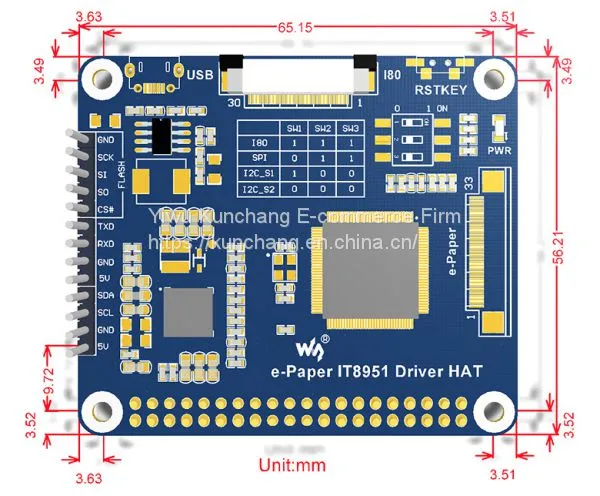

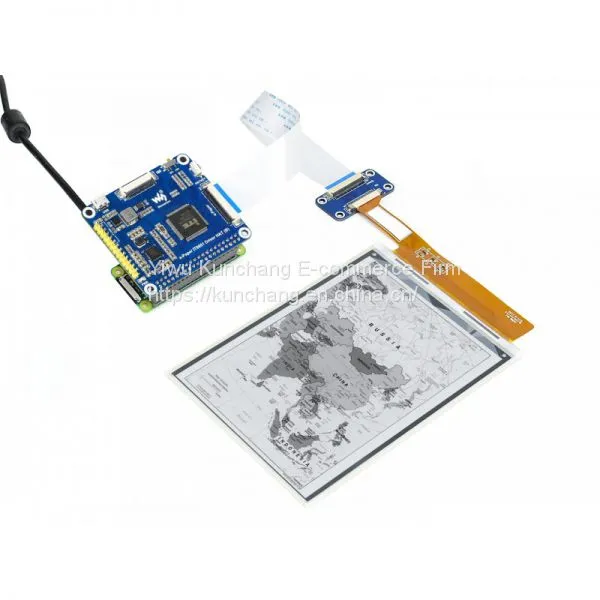

This is an E-Ink display HAT for Raspberry Pi, 6inch, 1448×1072 high definition, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
FeaturesNo backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry Pi/STM32)
Operating voltage: 5V
Interface: USB/SPI/I80

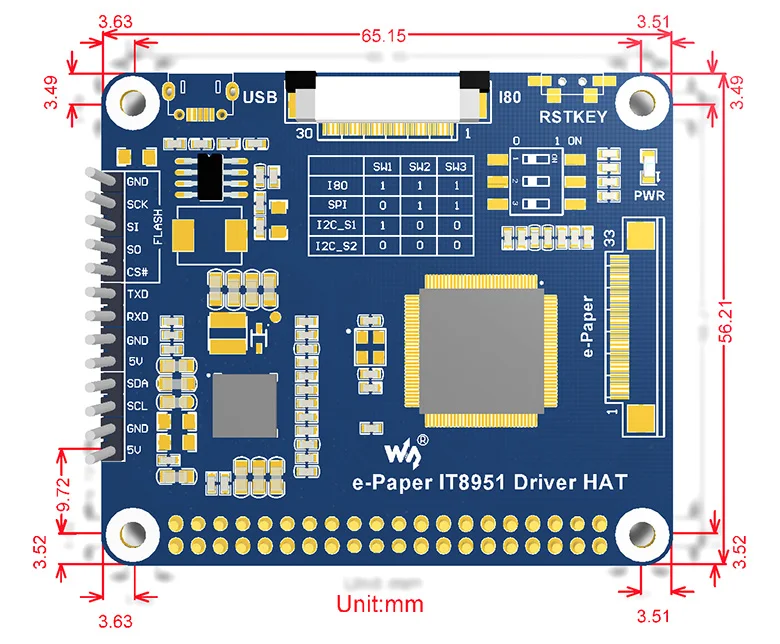

Outline dimension: 138.4mm × 101.8mm × 1.01mm
Display size: 122.4mm × 90.6mm
Dot pitch: 0.0845mm × 0.0845mm
Resolution: 1448 × 1072
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: <1s
Total refresh power: 0.88W(typ.)
Total standby power: 0.3W(typ.)
Viewing angle: >170°
| SYMBOL | DESCRIPTION |
|---|---|
| 5V | Power input |
| GND | Ground |
| MISO | SPI MISO pin |
| MOSI | SPI MOSI pin |
| SCK | SPI SCK pin |
| CS | SPI chip selection, low active |
| RST | External reset, low active |
| HRDY | Busy status output, low active |

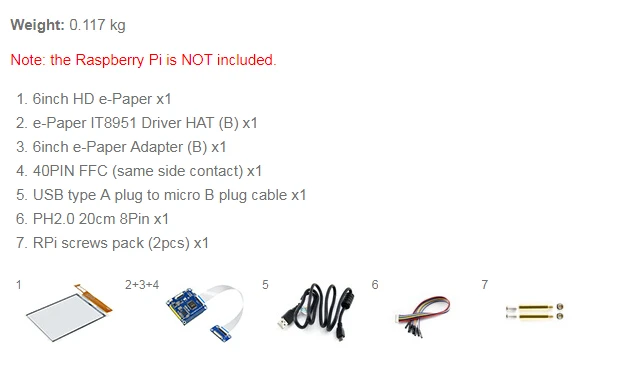

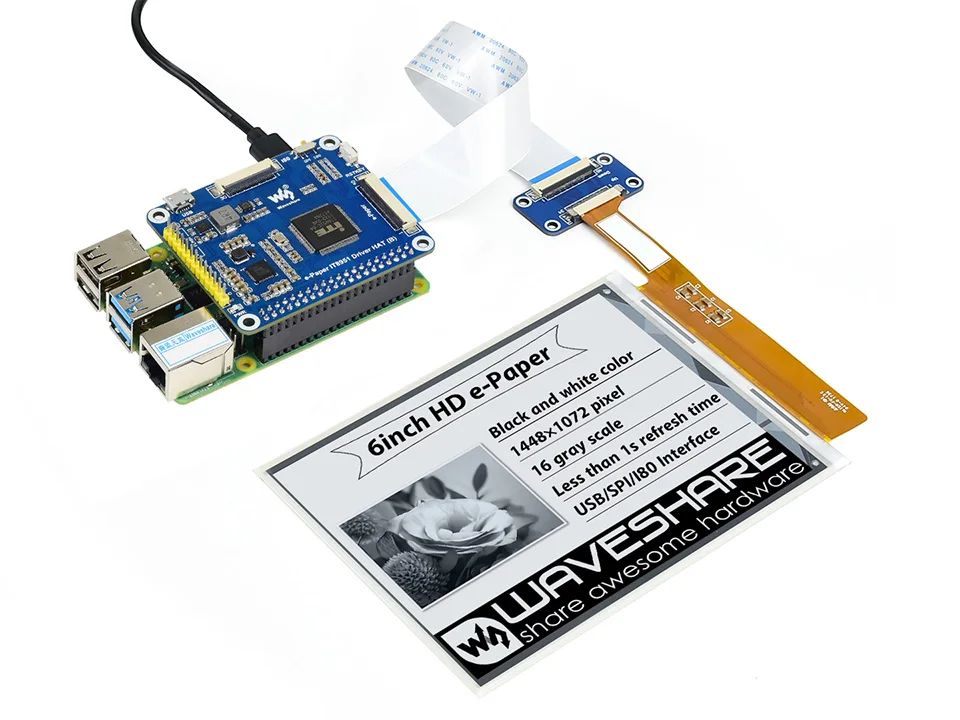

6inch HD e-Paper HAT
