Architectural Aluminum Crimped Mesh Grilll in Theater, Stadium, Zoo, Exhibition Center
Aluminum is largely considered the most popular non-ferrous metal in the world, and as such, aluminum alloys are commonly used in the wire mesh industry. Aluminum alloys are composed primarily of aluminum, and also contain other elements like copper, magnesium, manganese, or silicon.
Aluminum woven wire mesh is lightweight; in fact, a good rule of thumb is that, when compared to its stainless steel counterpart, aluminum mesh is approximately 1/3rd the weight of stainless. Aluminum wire mesh is also corrosion resistant in most normal environments but will corrode quickly in the presence of alkaline solutions and hydrochloric and hydrofluoric acids. With an estimated melting point of 1218°F, aluminum has many benefits, including a relatively low cost compared to other meshes. Aluminum woven wire mesh is a popular choice for a wide array of industries including aerospace and automotive, as well as marine and electrical conductivity applications.
As a large supplier of aluminum woven wire mesh, Darby specializes in stocking many of the standard or market grades of aluminum in alloy 5052. As indicated in the chart below, the 5000 series of aluminum contains magnesium which is the main secondary element. This inclusion of magnesium serves as a hardener and offers good corrosion resistance in marine atmospheres.
Alloys 1350, 5056 and 6061 are largely considered special order items in aluminum wire mesh. There are times that these aluminum alloys are on the floor or can be readily manufactured. The chemical composition limits chart for the various alloys of aluminum wire mesh is presented below:
| Chemical Composition Limits for Various Aluminum Wire Mesh Alloys (in %) | |||||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Ga | V | Other | Aluminum |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1350 | 0.10 | 0.40 | 0.05 | 0.01 | … | 0.01 | … | 0.05 | … | 0.03 | … | Trace | 99.50 |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | … | 0.10 | … | … | … | … | Remainder |
| 5056 | 0.3 | 0.40 | 0.1 | 0.05-0.20 | 4.5-5.6 | 0.05-0.20 | … | 0.10 | … | … | … | … | Remainder |
| 6061 | 0.40-0.8 | 0.70 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | … | 0.25 | 0.15 | … | … | … | Remainder |
Specification of wire cloth infill panel:
Materials: stainless steel, mild steel, aluminum, iron, copper.
Hole shapes: square, rectangular.
Surface treatment: prime painted, galvanized, powder coated.
Colors: sliver, gray, white, black, blue, yellow, or other RAL colors.
Wire diameter: 0.02–2 mm.
Open area: 45% – 65%.
Technique: woven or welded.
Width of wire panel: 0.6–1.5 m.
Specification of stainless steel crimped wire mesh:
| Material | Stainless steel | Opening Area | 74% |
| Warp Diameter | 2.75mm | Mesh Thickness | 4.8mm |
| Warp Pitch | 19.75mm | Surface | clean &free oil |
| Weft Diameter | 2.75mm | Max Length | 12mm |
| Weft Pitch | 19.75mm | Max Width | 4m |
| Weight | 4.86kgs/m2 | Application | Interior / Exterior |
| wire | aperture | open area | weight kg | |||
| mm | inch | mm | inch | % | stainless | copper |
| 1.5 | 0.059 | 10 | 0.394 | 75.61 | 2.48 | 2.80 |
| 1.5 | 0.059 | 12 | 0.472 | 79.01 | 2.12 | 2.39 |
| 1.6 | 0.063 | 10 | 0.394 | 74.32 | 2.80 | 3.16 |
| 2.0 | 0.079 | 10 | 0.394 | 69.44 | 4.23 | 4.77 |
| 2.0 | 0.079 | 15 | 0.591 | 77.85 | 2.99 | 3.37 |
| 2.6 | 0.102 | 15 | 0.591 | 72.64 | 4.88 | 5.51 |
| 3.0 | 0.118 | 25 | 0.984 | 79.72 | 4.08 | 4.61 |
| 3.5 | 0.138 | 25 | 0.984 | 76.95 | 5.46 | 6.16 |
| 4.0 | 0.157 | 19 | 0.748 | 68.24 | 8.83 | 9.97 |
| 4.7 | 0.185 | 25 | 0.984 | 70.85 | 9.45 | 10.67 |
| 4.8 | 0.189 | 19 | 0.748 | 63.73 | 12.29 | 13.88 |
| 4.8 | 0.189 | 25 | 0.984 | 70.38 | 9.82 | 11.09 |
Crimped wire mesh is used in the waste water, oil refining, mining, construction, safety and food processing industries for applications that require strength and large-hole filtering and screening. Pre-crimped wire cloth is also used in architectural and industrial design applications.
Application Of Crimped Square Wire Mesh
Used as fencing
Used as filter

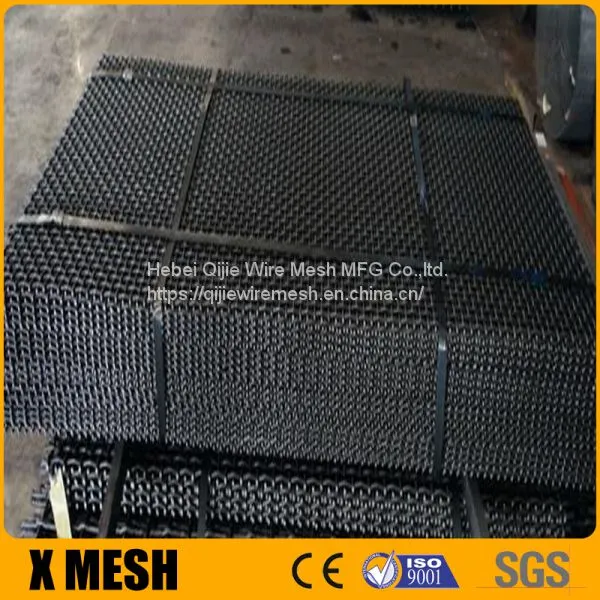

As screen in mine, coal factory, construction, etc.
As BBQ wire mesh to roast for food or meat

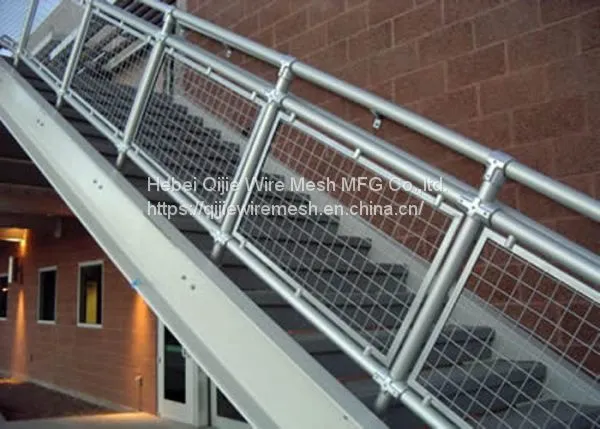

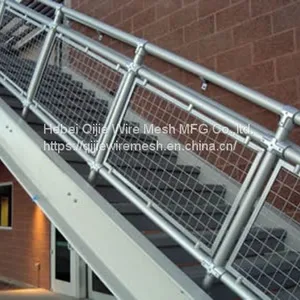

Features of wire cloth infill panel:
Durability. It has sound structure due to lots of woven methods.
Attractive appearance. With various colors and crimp styles.
Safety. With high strength and loading capacity.
Anti-corrosion. It is made of corrosion resistance material and with anti-corrosion surface treatments.
Easy to install and maintenance-free.
