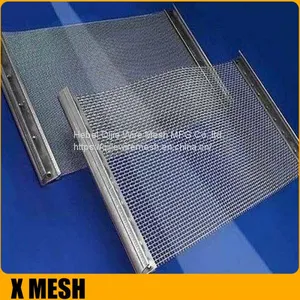

Metal Decorative Lock Crimped Stainless Woven Wire Mesh For Interior Design
Product Description
Crimped Wire Mesh
Architectural Flat Wire Mesh Crimped Woven Wire Mesh Brass Bronze Stainless Steel Woven Metal Decorative Mesh
Crimped Wire Mesh 4 6 8 10 12 15 Mesh Ss 304 316 316L Stainless Steel Crimped Wire Mesh
304 316 316L 321 Stainless Steel Crimped Wire Mesh for Coal Mine Screen
Small Aperture Steel Wire Rope Mesh Hexagon Hole Hot-dip Galvanized Fence Protective Net Model 003 Crimped Technique
304 304L 316 316L Double Crimped Stainless Steel Wire Mesh 3 Mesh for Metal Building Materials for Machine Use
High Manganese Steel Mine Sieving Sand Vibrating Screen Crimp Wire Mesh With Hook
High Manganese Steel Crimped Wire Mesh Crusher Screen Mesh Vibrating Sieve Shaker Sieve
High Tensile Strength 65 Mn Crimped Vibrating Screen Mesh for Mine
Crimped Wire Mesh Vibrating Screen Stainless Steel 304 310S Quarry Mesh for Mineral
High Quality Square Aperture Electro Galvanized Crimped Wire Mesh for Vibrating and Filtration
Stainless Steel Architectural Mining Screen Mesh Woven Wire Locked Crimped Mesh
1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.
Technical Specifications
(Custom configurations available upon request.)
Product Type |
Key Features |
Primary Applications |
358 Security Mesh |
9.5mmx3.15mm aperture pattern, anti-climb design |
Prisons,facilities, high-security zones |
358 Anti-Scale Mesh |
Reinforced 6mm thick wires, tamper-resistant connections |
Airport perimeters, critical infrastructure |
Workshop Partition Panels |
Modular design, easy installation, transparent or solid options |
Factory floors, warehouse divisions, equipment zones |
Elevator Protection Doors |
Interlocking mechanism, safety sensors, reinforced frames |
Construction sites, industrial elevator shafts |
Anti-Glare Highway Barriers |
Wave-shaped design, 85% visibility maintenance, UV resistant |
Expressways, viaducts, traffic separation areas |
Airport Perimeter Fencing |
358 mesh standard, 3.0m height, anti-dig base design |
Airfield boundaries, restricted access areas |
Prison Security Fencing |
76.2mmx12.7mm mesh, 6mm diameter wires, anti-climb topping |
Correctional facilities, detention centers |
In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.
| MATERIALS & PARAMETERS |
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire
| Grade | Chemical Composition(%) | ||
| C | Si | Mn | |
| 45 | 0.42-0.50 |
0.52-0.60 |
0.50-0.80 |
| 50 | 0.47-0.55 | ||
| 55 | 0.52-0.60 | ||
| 60 | 0.57-0.65 | ||
| 65 | 0.62-0.70 | ||
| 70 | 0.67-0.75 | ||
| 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 72A | 0.15-0.75 | 0.15-0.75 | 0.30-0.60 |
Technical Parameters of Stainless Steel Wire
| Grade | Chemical Composition(%) | |||
| C | Si | Mn | Cr | |
| 304 | ≤0.08 | 8.0-10.5 | ≤2.0 | 18.0-20.0 |
| 321 | ≤0.08 | 9.0-12.0 | ≤2.0 | 17.0-19.0 |
| 316 | ≤0.08 | 10.0-14.0 | ≤2.0 | 16.0-18.0 |
| 2205 | ≤0.03 | 4.5-6.5 | ≤2.0 | 21.0-23.0 |
| 2207 | ≤0.03 | 6-8 | ≤1.2 | 24.0-26.0 |
| Aperture Square Weave |
Light duty Wire Dia kg/m²OA% |
Medium Wire Dia kg/m OA% |
Heavy Duty Wire Dia kg/m²OA% |
||||||
| 2.00 | 1.37 | 7.1 | 35 | ||||||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 | |||
| 4.0 | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 2.50 | 9.80 | 48 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 2.50 | 8.89 | 51 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 2.50 | 9.00 | 51 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 2.50 | 8.80 | 55 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 2.50 | 10.80 | 54 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 3.05 | 9.80 | 55 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 3.05 | 10.40 | 54 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 4.00 | 12.30 | 57 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
| 14 | 4.00 | 16.70 | 54 | 5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
| 16 | 5.00 | 15.10 | 58 | 5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 5.00 | 14.50 | 58 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 5.60 | 14.00 | 61 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 5.60 | 17.60 | 61 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 6.80 | 16.10 | 64 | 7.10 | 20..1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 7.00 | 14.70 | 63 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 8.00 | 20.60 | 64 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 8.00 | 18.70 | 67 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 9.00 | 21.00 | 67 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 9.00 | 19.50 | 69 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 10.00 | 23.20 | 69 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 10.00 | 19.20 | 72 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 10.00 | 17.40 | 75 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 10.00 | 14.80 | 78 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 10.00 | 16.00 | 79 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 10.00 | 14.00 | 81 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 10.00 | 10.00 | 82 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
