65mn Crimped Wire Mesh Woven Screen Crusher Vibrating Screen Mesh Customized Hook Vibrating Sieve
Product Description
65Mn Crimped Wire Mesh Woven Screen for Crusher and Vibrating Sieve with Customized Hooks
The 65Mn Crimped Wire Mesh Woven Screen is engineered for high-performance crusher and vibrating sieve applications in mining, quarrying, and aggregate processing. Made from premium 65Mn spring steel, this woven screen mesh delivers exceptional tensile strength, abrasion resistance, and long service life, ensuring reliable performance under continuous vibration and heavy-duty material handling.
Designed with a crimped wire structure, the mesh maintains stable spacing and prevents sagging or deformation, providing precise particle separation and consistent screening efficiency. The woven design ensures superior durability against impact from sharp, abrasive materials commonly found in mining and aggregate operations.

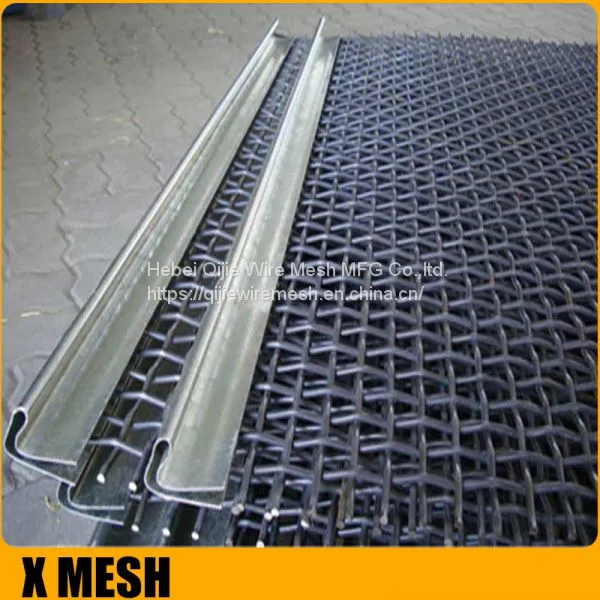

Equipped with customized hooks, the vibrating sieve mesh allows for secure and easy installation on a variety of screen decks, reducing installation errors and operational downtime. The robust construction and high elasticity of 65Mn steel provide excellent anti-blinding and anti-pegging performance, especially when handling wet, sticky, or fine materials, ensuring smooth material flow and maximum throughput.
Available in various aperture sizes, wire diameters, mesh dimensions, and hook configurations, the crimped wire mesh can be tailored to meet different vibrating sieve and crusher models, as well as specific operational requirements. The durable design minimizes maintenance, extends service life, and improves overall productivity.
Widely applied in ore screening, coal processing, stone crushing, sand and gravel separation, and aggregate classification, the 65Mn Crimped Wire Mesh Woven Screen with Customized Hooks provides a high-performance, cost-effective, and reliable solution for modern mining and quarry operations seeking durability, precise screening, and reduced downtime.
1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.
| Products | 65MN crimped wire mesh screen (45#,50#,55#,60#,70#, and 72A material grade also can be made) | |
| Feature | 65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying, and aggregating industries. Compared with carbon steel,45#,50#,55#,60#,70#, and 72A material grade, 65mn Material has the highest Manganese content and high carbon, which lets it have High Wear resistance and Tensile strength. Stainless steel is also a fine material, but the price is too expensive for batch quantity uses. So 65mn crimped wire mesh is a great screen for the mining, quarrying, and vibrating industry. | |
| Material grade | 65Mn Steel | |
| Aperture/opening | 1.0mm-150mm | |
| Wire diameter | 0.5-12.7mm | |
| standard sheet size | 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm. | |
| Weaving type | Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommended for Mining Screen Usage | |
| Width | width up to 6 meters | |
| Length | length up to 100 meters. | |
| surface finish | Mill finish, Anti-rust oil spraying, PVC coating | |
| Application | Heavy Screening & Sieving Of Coal Mines. Stone Quarry Works Wire Mesh For Pig Breeding Coal Mine Cement Plant The Cement Factory Petroleum Glass Factory Hardware Products |
|
| Standards | Material GBT 1222-2016 Quality GBT 13307-2012 GBT 13307-2012 ISO 4783-3 |
