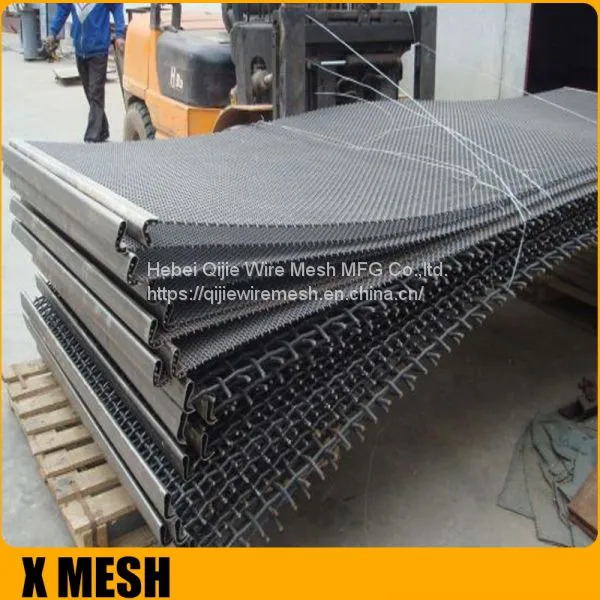

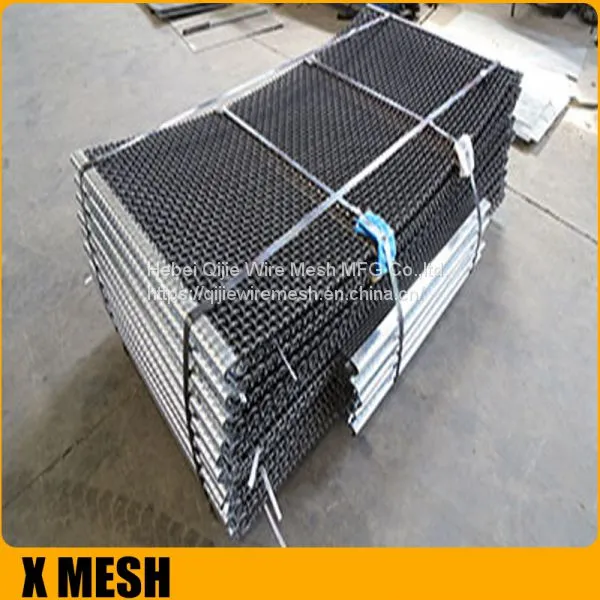

65mn Steel Woven Wire Mesh Mining Screen Mesh for Crusher and Vibrating Screen
Product Description
Our 65Mn woven vibrating screen mesh is specially engineered for heavy-duty mining and aggregate screening applications. Made of high-quality 65Mn spring steel with heat treatment process, it achieves a hardness of 55-62 HRC, ensuring superior wear resistance and long service life. Compliant with GOST, GB and AISI standards, it is fully customizable in mesh size, wire diameter and sheet size to meet the specific needs of Russian and Central Asian customers.
Typical Applications:
Mining: Ore extraction, coal washing, and mineral processing.
Quarry & Aggregate: Stone crushing, sand screening, and gravel classification.
Construction: Demolition waste sorting and construction material screening.
Industrial: Chemical processing, grain handling, and waste management.
1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.
Technical Specifications
(Custom configurations available upon request.)
Product Type |
Key Features |
Primary Applications |
358 Security Mesh |
9.5mmx3.15mm aperture pattern, anti-climb design |
Prisons,facilities, high-security zones |
358 Anti-Scale Mesh |
Reinforced 6mm thick wires, tamper-resistant connections |
Airport perimeters, critical infrastructure |
Workshop Partition Panels |
Modular design, easy installation, transparent or solid options |
Factory floors, warehouse divisions, equipment zones |
Elevator Protection Doors |
Interlocking mechanism, safety sensors, reinforced frames |
Construction sites, industrial elevator shafts |
Anti-Glare Highway Barriers |
Wave-shaped design, 85% visibility maintenance, UV resistant |
Expressways, viaducts, traffic separation areas |
Airport Perimeter Fencing |
358 mesh standard, 3.0m height, anti-dig base design |
Airfield boundaries, restricted access areas |
Prison Security Fencing |
76.2mmx12.7mm mesh, 6mm diameter wires, anti-climb topping |
Correctional facilities, detention centers |
In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.
| MATERIALS & PARAMETERS |
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire
| Grade | Chemical Composition(%) | ||
| C | Si | Mn | |
| 45 | 0.42-0.50 |
0.52-0.60 |
0.50-0.80 |
| 50 | 0.47-0.55 | ||
| 55 | 0.52-0.60 | ||
| 60 | 0.57-0.65 | ||
| 65 | 0.62-0.70 | ||
| 70 | 0.67-0.75 | ||
| 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 72A | 0.15-0.75 | 0.15-0.75 | 0.30-0.60 |
Technical Parameters of Stainless Steel Wire
| Grade | Chemical Composition(%) | |||
| C | Si | Mn | Cr | |
| 304 | ≤0.08 | 8.0-10.5 | ≤2.0 | 18.0-20.0 |
| 321 | ≤0.08 | 9.0-12.0 | ≤2.0 | 17.0-19.0 |
| 316 | ≤0.08 | 10.0-14.0 | ≤2.0 | 16.0-18.0 |
| 2205 | ≤0.03 | 4.5-6.5 | ≤2.0 | 21.0-23.0 |
| 2207 | ≤0.03 | 6-8 | ≤1.2 | 24.0-26.0 |
| Aperture Square Weave |
Light duty Wire Dia kg/m²OA% |
Medium Wire Dia kg/m OA% |
Heavy Duty Wire Dia kg/m²OA% |
||||||
| 2.00 | 1.37 | 7.1 | 35 | ||||||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 | |||
| 4.0 | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 2.50 | 9.80 | 48 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 2.50 | 8.89 | 51 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 2.50 | 9.00 | 51 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 2.50 | 8.80 | 55 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 2.50 | 10.80 | 54 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 3.05 | 9.80 | 55 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 3.05 | 10.40 | 54 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 4.00 | 12.30 | 57 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
| 14 | 4.00 | 16.70 | 54 | 5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
| 16 | 5.00 | 15.10 | 58 | 5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 5.00 | 14.50 | 58 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 5.60 | 14.00 | 61 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 5.60 | 17.60 | 61 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 6.80 | 16.10 | 64 | 7.10 | 20..1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 7.00 | 14.70 | 63 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 8.00 | 20.60 | 64 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 8.00 | 18.70 | 67 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 9.00 | 21.00 | 67 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 9.00 | 19.50 | 69 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 10.00 | 23.20 | 69 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 10.00 | 19.20 | 72 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 10.00 | 17.40 | 75 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 10.00 | 14.80 | 78 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 10.00 | 16.00 | 79 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 10.00 | 14.00 | 81 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 10.00 | 10.00 | 82 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
