Quartz Sand Screening Machine With Large Capacity

This equipment is a super-square tumbler screen (SYT-FYBS) model developed and produced by our company with a hanging structure. It has applied for a number of national protection patents and is leading the industry. The screen mesh frame and the screen mesh installation method adopt a unique and innovative design, and the installation is very convenient. Usually 9-layer design, can be divided into 10 grades at one time, or 4 layers + 4 layers equivalent to 2 sets sieve machine, or 2 layers + 2 layers + 2 layers equivalent to 3 sets sieve machine Or designed as 1 layer +1 layer +1 layer +1 layer +1 layer is equivalent to 5  sets sieve machines.

Features of square swing screen

1,Large production capacity, unique multi-layer grading design, one machine is divided into two groups, one is used in multiple units, the production capacity doubles.
2,The fully enclosed structure, the dust is not flying, the sieve machine has low vibration and low noise, and It to meets environmental protection requirements.
3,Flexible screening, the acceleration is 4-5 times lower than that of ordinary vibrating screen, and the service life is increased, thus reducing maintenance costs.
4,Changing the screen mesh is more convenient, simple to operate, firm and reliable.
5,Large electrostatic spray molding process, the equipment is more beautiful, wear-resistant and rust-proof.
6,It has applied for a number of national protection patents and is leading the industry.

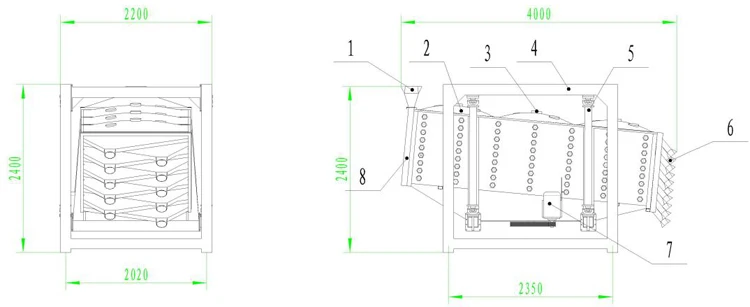

1,Feeder   2,Dust cover     3,Observation hole      4,Frame
5,Universal joint connection      6,discharge port      7,motor     8,Front operating door

Application of square tumbler screen / swing sieve

Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, etc.
Metallurgy and mining industry: quartz sand, ore, meteorite,garnet, etc.
Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder, etc.

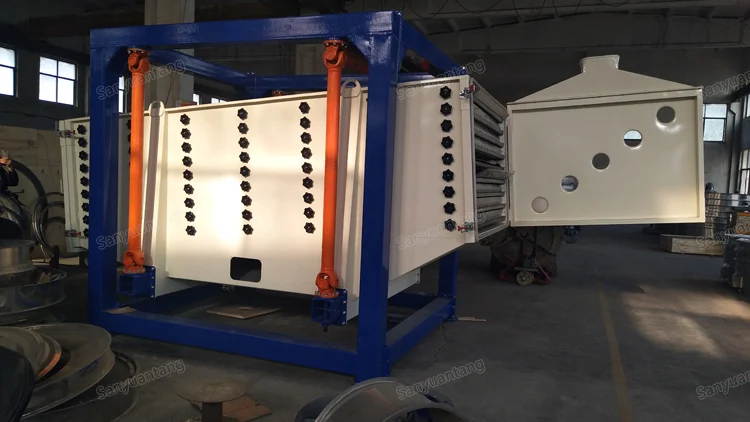

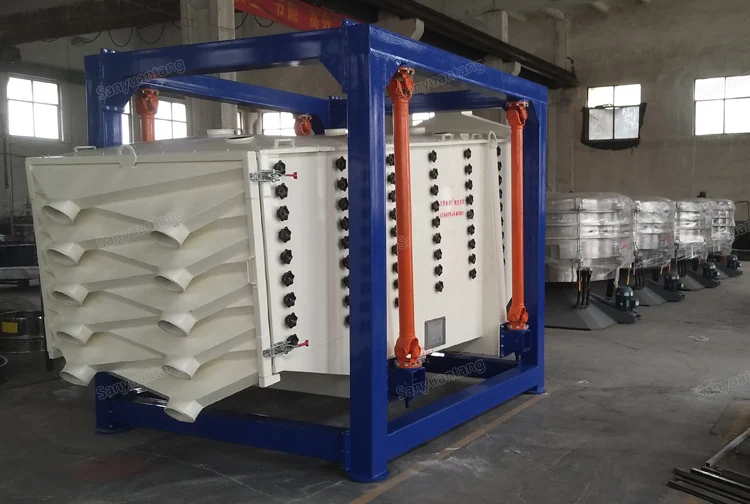

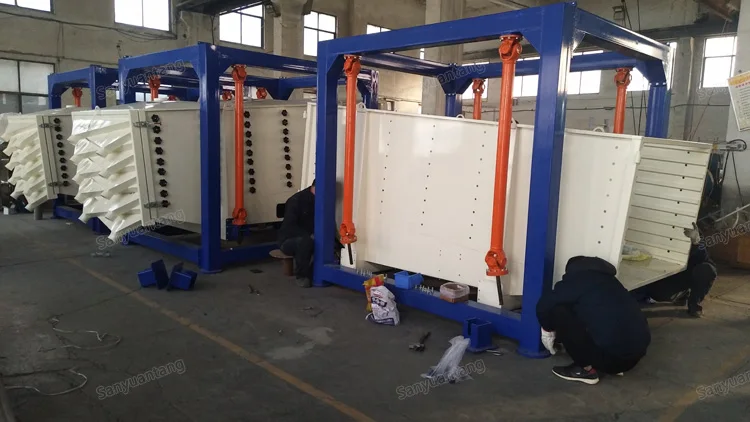

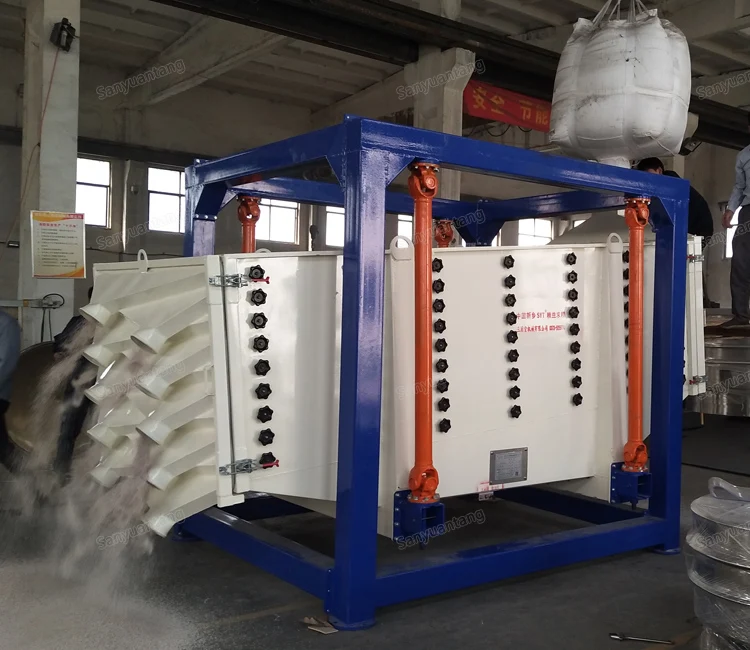

Photos of square swing screen

Mesh cleaning: Silicone bouncing balls.
