Fine powder round swinging tumbler screen sieve
|
HXSY tumbler screen machine is an efficient sieving equipment which is designed to meet the large out put, high-density sieving of the manufacturers. It is the most effective simulation of artificial sieving movement (sieving precision, efficiency, service life is 5-10 times than the common cylinder sieve), for the processing of all the fine and ultra-fine powder and special materials, particularly suitable for materials which are difficult to classify.
The number of available screen cleaning systems is particularly worth mentioning, with balls, brushes, ultrasonic, and various combinations being of these options are available to prevent blinding and maintain efficient screening.
Purity: Over 95% sieving accuracy Features of tumbler screen machine 1.Up to 5 times outlet compared with common sieving machine |
|
|
Technical Data Model Availability of screening area(m*m)Screen slope (angel)Grain size(mm)Frequency(r/min)Double amplitude(mm)Power(kw)Process capacity(t/h)HXSY-6000.2920-10≤100750 960 1500 5-80.256-10HXSY -10000.7855-81.58-15HXSY -12001.135-82.215-30HXSY -16001.835-82.225-50HXSY -20002.635-84.030-60HXSY -26005.315-85.545-60
Application of tumbler screen / swing sieve

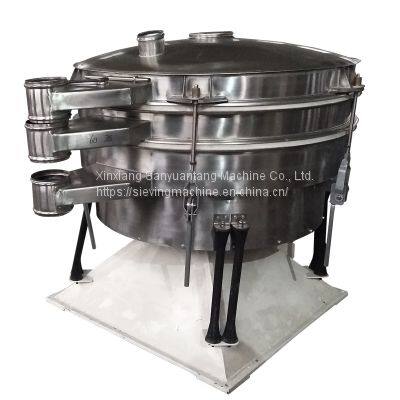

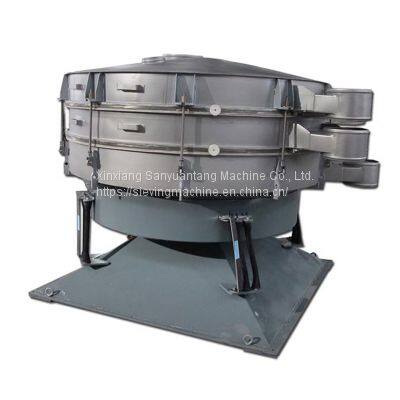

Tumbler vibrating screen / Swing sieve photos
Special spares
|
Frequently Asked Questions
The proper selection of the vibrating screen depends on the material, mesh size, output required, method of input etc:
| 1. Name of material: _____ |
| 2. Moisture:_____% |
| 3. Specific gravity:_____ [It means g/cm3 or kg/m3] |
| 4. Capacity:________kg/ hour |
| 5. Screen layers:_______ layers |
| 6. Screen mesh size:______ mm . ______ mm. ______ mm |
| 7. Voltage:______V, Frequency:______HZ, 3 phase |
| 8. SS304/316L stainless steel or Q235A carbon steel? |
