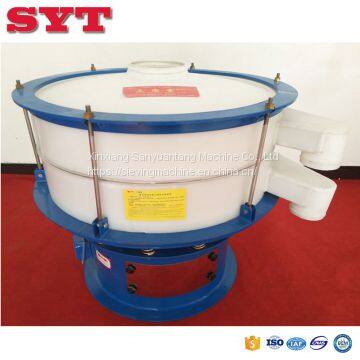

electric vibrating screen sieve shaker hemp seed powder grading machine
| Model | Screen Deck | Screen Diameter | Motor Power | Dimensions(mm) | Weight |
| SY-400 | 1 | 400mm | 0.25KW | 580×580×560 | 55kg |
| 2 | 400mm | 580×580×670 | 65kg | ||
| 3 | 400mm | 580×580×780 | 75kg | ||
| SY-600 | 1 | 600mm | 0.55KW | 800×800×750 | 98kg |
| 2 | 600mm | 4575×1546×890 | 118kg | ||
| 3 | 600mm | 4854×1549×1030 | 138kg | ||
| SY-800 | 1 | 800mm | 0.75KW | 900×900×750 | 158kg |
| 2 | 800mm | 4765×2159×890 | 196kg | ||
| 3 | 800mm | 4765×2159×1030 | 238kg | ||
| SY-1000 | 1 | 1000mm | 1.47KW | 1160×1160×810 | 245kg |
| 2 | 1000mm | 1160×1160×950 | 305kg | ||
| 3 | 1000mm | 1160×1160×1090 | 365kg | ||
| SY-1200 | 1 | 1200mm | 1.84KW | 1360×1360×885 | 330kg |
| 2 | 1200mm | 1360×1360×1050 | 408kg | ||
| 3 | 1200mm | 1360×1360×1275 | 488kg | ||
| SY-1500 | 1 | 1500mm | 2.2KW | 1850×1850×990 | 478kg |
| 2 | 1500mm | 1850×1850×1185 | 578kg | ||
| 3 | 1500mm | 1850×1850×1380 | 678kg |
What does the rotary vibrating screen doing?
Different size material is grading to big size, middle size and small size material by rotary vibrating screen.
What is the rotary vibrating sieve's advantage?
Low energy consumption, high output, simple structure, easy maintenance.
What is the vibrating sieve's functions?
Sifter,Filteration,Remove impurity
Which material can be sieved by vibrating sieve machine?
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. Rotary Vibrating Screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface.

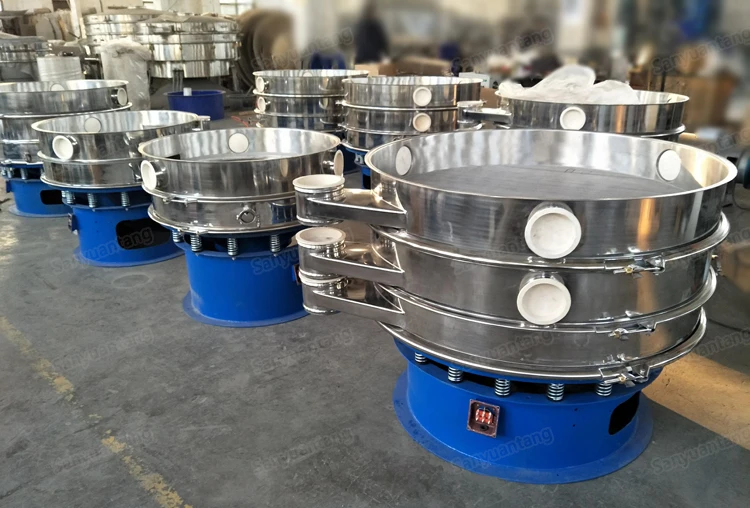

Rotary vibrating screen actually pictures
Application site of rotary vibrating screen
All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
b, Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
c, 24 hours hot line +86-18637309828
Xinxiang Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise.Our company is located in XINXIANG CITY HENAN PROVINCE CHINA, We are one of leading manufacturer who specialize
At present, the main range of products include kinds of series of Rotary Vibrating Sieve/Screen, Linear Vibrating Screen/Sieve, Tumbler Screen Machine, Lab Test Sieve Machine, 450 Filter Sieve Machine, Ultrasonic Vibrating Sieve/Screen,High Frequency Vibrating Sieve/Screen, Drum Sieve,Screw Conveyor, Flexiable Screw Conveyor, Bucket Elevator, Vertical Conveyor ,Honey Processing Machine,etc.
We have advanced manufacture equipment, abundant technology power, complete testing measures, strict management system and favorable corporation credit-standing.
Why Choose Sanyuantang
1) International high quality certification product chain
2) Manufacturer, more reasonable price
3) Solid technical support and after-sales service
4) Uphold the principle of “Customer Supreme”
5) Exports to more than 20 countries and regions, good customers feedback
6) One-stop service, customized exclusive project feasibility report.
Customers visit our company
Exhibition
Q:This is my first time to import,how can I trust your company and ensure to get the goods if I order from you.
A:We are alibaba legitimate certification company (VIP),and we support payment L/C.Escrow.T/T and so on to ensure your safty.
Q:There are too many models,i don't know which one to choose
A: Welcome to consult our online TradeManager,we will recommend according to your
demands.If during closing time or weekend,Please send mail to us,we will response within 24 hours.
