Vibrating Screen Machine for Food Powder Separating/sorting/other Processing

Description of size grading vibrating screen machine

It supports at most 5 layers. But 3 layers is highly recommended.

It has 4 available material, all stainless steel 304 or 316 or touching part sus304 or carbon steel Q235A.
The voltage is supported to be customized. 220/240/380/415/450V are all available. 50 or 60HZ.
With large capacity, small volume, high screening efficiency, easily changed screen and good safe performance.

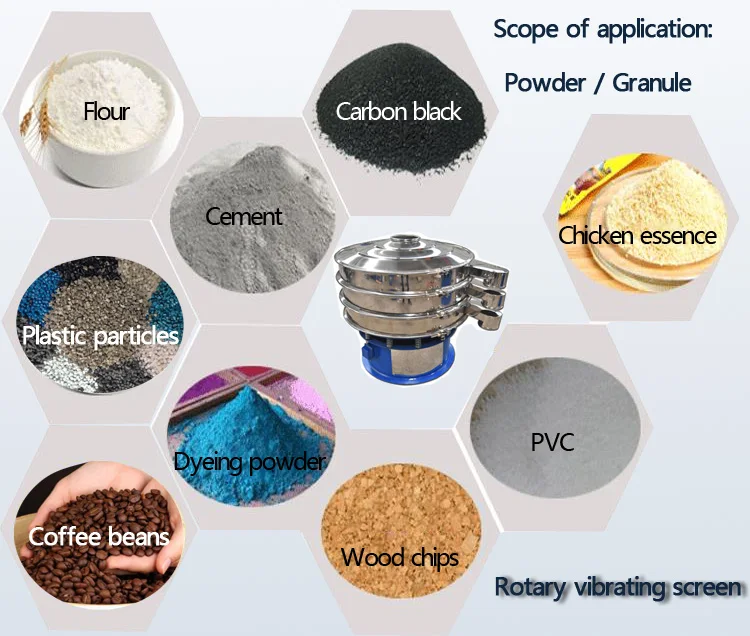

It is widely used for screening, grading and filtering, separating and classifying and sieving of powders, pellets, granule.
It has been used in Food, Chemical, Construction, Paper-making, Metallurgy and mining, Abrasive and ceramic industry etc.
It is composed of vibration motor, basement support, screen frame, inlet and outlets, dust-proof cove.

1. All- closed design of standard vibrating screen, no dust pollution.
2. High efficiency, both rough grading and fine screening can process.

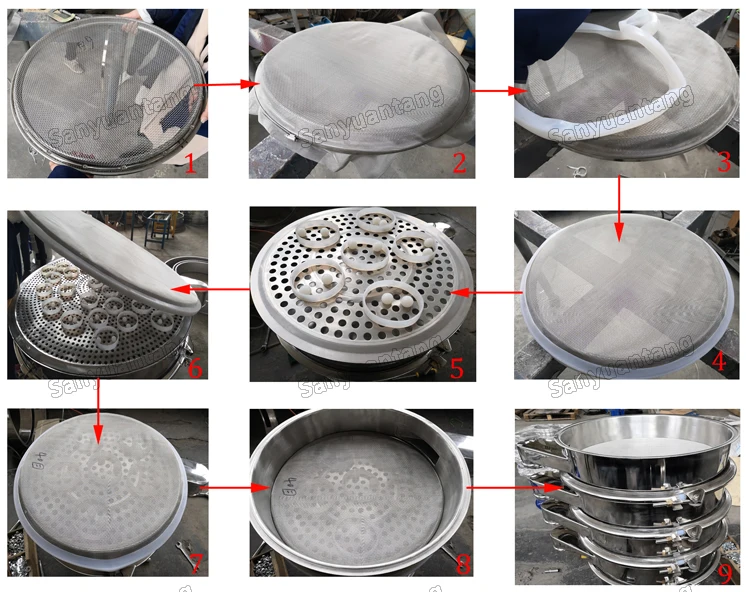

3. Special screen design, easy to change(only need 3~5 minutes); long screen life of screen mesh, easy to clean.
4. The outlet's location can be adjusted to anywhere you need.

Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

Working principle of size grading vibrating screen sieve machine

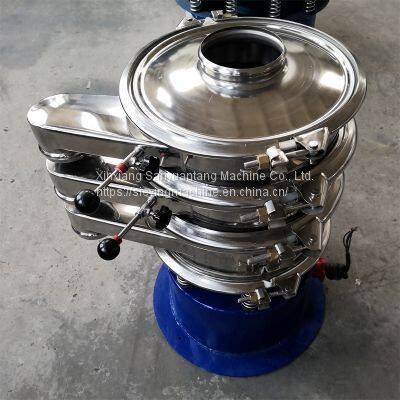

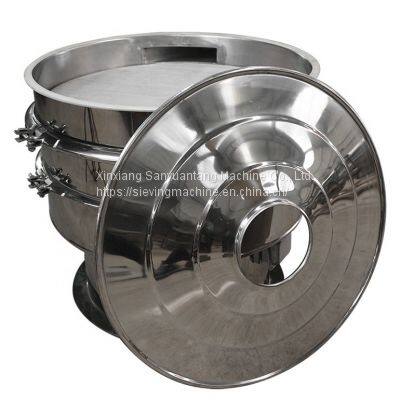

Pictures of size grading vibrating sifter machine

What is the answer to difficult-to-screen materials? (Sticky, easy to reunion, static)
Bouncing ball clearing device:Bouncing ball is the most common clearing device. Its shape is round, the material can be divided into two kinds of rubber material and silicone material. Its working principle is evenly distributed on the board.The vibrating screen machine in the vibrating at the same time bouncing the ball also will jump to hit the screen, so as to play the purpose of clear network.Bouncing ball clearing device is the most common type of rotary vibration screen.

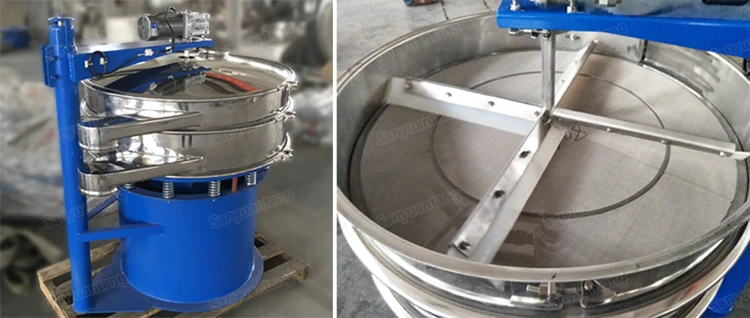

Rotary brush cleaning device: Rotary brush cleaning device is composed of cylindrical silica gel, the rotary brush installed in the center of the screen frame, a coupling connected to start the screen when the machine rotation The brush starts at the same time, thus cleaning the screen at the bottom of the screen frame. The device commonly used models for the vibrating screen.

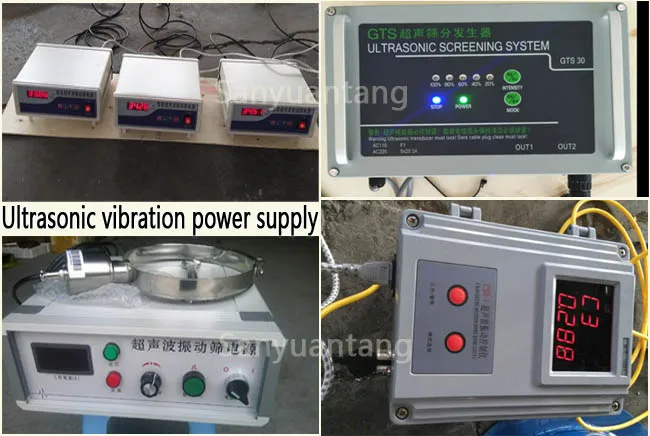

Ultrasonic cleaning device:The device is the use of ultrasonic vibration on the screen cleaning sieve work. Its main components are ultrasonic power supply, transducer and ultrasonic grid. Its principle is through the ultrasonic power will be converted to conventional high-frequency electrical power, through the role of the transducer in the grid, In order to solve the high fine material cleaning and efficient screening work. The device is mostly used in ultrasonic vibration sieve, also can be modified as needed for linear vibrating screen or swing sieve.
