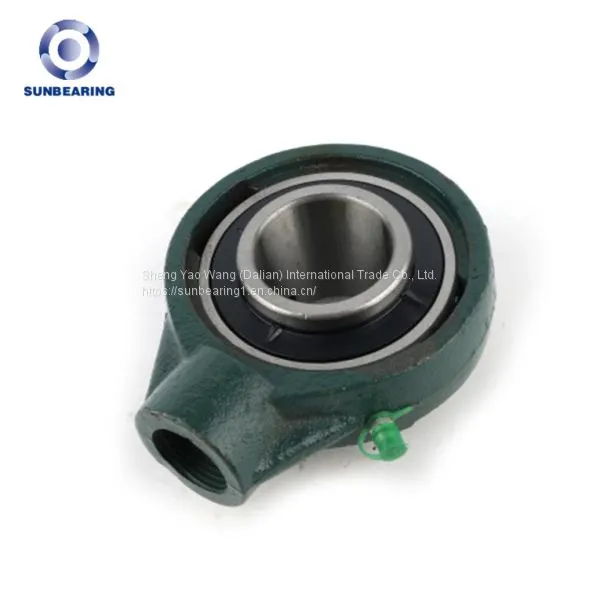

Help CenterSUNBEARING UCHA212 Green 60*142*65.1mm Chrome Steel GCR15 Pillow Block Bearing
Related Products
-
SUNBEARING UKF206 Pillow Block Bearing 25mmUS$ 2.4 - 2.8MOQ: 1 Piece -
SUNBEARING MT205 206 207 Pillow Blcok BearingUS$ 5 - 5.5MOQ: 1 Piece
-
SUNBEARING UCHA208 Pillow Block Bearing Green 40*96*121mm Chrome Steel GCR15US$ 4.71 - 5MOQ: 1 Piece
-
SUNBEARING UCFC211 Pillow Block Bearing Green 55*185*55.6mm Chrome Steel GCR15US$ 9.29 - 10MOQ: 1 Piece
-
SUNBEARING UCFC206 Pillow Block Bearing Green 30*125*38.1mm Chrome Steel GCR15US$ 3.7 - 4MOQ: 1 Piece
Product Description
Product Name |
Pillow Block Bearing UCHA212 |
||
Structure |
Pillow block Bearing |
Seals |
Rubber Seal |
Bore Size |
60mm |
Bore Type |
Round |
Outside Diameter |
142mm |
Duty Type |
Medium Duty, Heavy Duty and Others |
Width |
65.1mm |
Operating Temperature Range: |
-20 to +120°C |
Material |
Plastic; Chrome Steel, Carbon Steel, Stainless Steel |
Lubrication Type: |
Oil; Grease; |
Cage |
GCR 15, Stainless steel, etc. |
Series: |
UCHA |
Certificate |
ISO9001:2008 |
Features |
High precision, low noise, high speed, long life, high reliability, heavy load |
Colour |
Green |
Bearing Structure |
Spherical Surface Ball Bearing |
The Number Of Row |
Single |
Weight |
3.9kgs |
Clearance |
C2 C0 C3 C4 C5 |
Tolerance |
ABEC1 ABEC3 ABEC5 ABEC7 |
Description of UCHA212 Pillow Block Bearing with Bearing Housing HA212:
Pillow block bearing is a bearing unit that combines the rolling bearing and bearing seating together. Most insert bearings make the outer diameter a sphere. The structure varies in form and easy in installation. Also, this kind of bearing has good versatility and interchangeability. It can easily work in a severe environment.
Pillow block bearing simplifies the outside structure of the machinery, making it more reasonable in assembling and maintenance, plus, it is with aligning property so that to protect torque load induced by assembling mistakes. In addition, as it is easier to be assembled on a machine and lateral wall, it could be used on a frame or anywhere of the machine Due to features mentioned above, the insert bearings with housings are used extensively as well as different types of the bearings themselves.
Application: Pillow block bearing is widely used in various machinery, It is used extensively in agricultural machines, construction machines, textile machines, food-processing machines as well as transportation systems, etc.
Model: UC series, UCF series, UCFL series, UCT series, UCP series , and etc.
