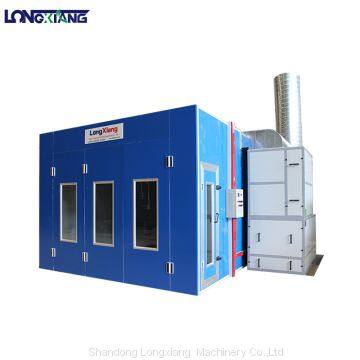

China Factory car spray booth with CE certificate

Outside size

7000×5350×3400mm(L×W×H)

Inside size

6900×3900×2650mm(L×W×H)

Entrance door

3 folds,3000x2600 mm(W×H), bending steel without covered frame

Emergency door

650*1800mm(W*H),equipped with handle lock

Cabin system

Wall panel

-Sandwich style EPS 50mm,0.376mm thick steel,  anti-flame and heat-insulation.

-High quality galvanized steel roof panel.

Basement

-Galvanized steel assemble,300mm high,quadrate steel support,2 rows of grills,3 rows of indented plates.

-2 ramps,external setting,620*2000mm(W*L)/pc

Ventilation system

Inlet fan

2*4kw double-intake centrifugal fans, model:  YDW4.5M1, air capacity:12500m³/h for each set

Outlet fan

Optional

Cabinet setting type

-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .

-Cabinet for the fan*1unit ,air duct*2m long*1unit,

-Elbow:90°*1 unit

Airflow speed

0.35m/s,ventilation rate:280time/h

Heating system

Burner

Italy RIELLO G20 oil burner, heating capacity: 200000Kcal/h, with BELIMO 10N electric damper

Heat Exchanger

1.2mm thickness SUS304 stainless steel

Cabinet

Rock-wool insulation*1 unit

Lighting system

Ceiling lights

24pcs*36w Philip tubes with electronic ballast .

Side lights

Optional

Filtering system

Primary filter

Grade G2 plate type , filtering rate＞83%

Ceiling filter

EU5 grade high efficient filter,filtering rate＞98%

Floor filter

Multi-layer fiberglass filter,filtering rate＞70%

Control system

Control panel

Intelligent control system

Function

Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc

Total power

9.5KW
