customized electric heating car spray booth
Features
1. With 2 sets centrifugal air intake blowers and 1 set exhasut blower,increasing the air flow speed.
2. Heating system with 10groups luxury heating lamps for heating,fast baking and long working life.
3. Lighting with 24 pcs LED lamps,with good energy saving effect and lighting effect,anti-explosion.
4. Controlling system with clear wire not easy to cause electric fault.
Parameter For QX2000AB
| Diemension | Internal Size:6900*3900*2650mm | External Size:7000*5500*3300mm |
| Doors | Entrance door :Aluminum alloy binding framework (thickness 1.8mm),1 set folding door :3000*2600mm(W*H) | |
| Access door :1 set hung side door:700*1700mm(W*H) | ||
| Wallboard | 50mm EPS (epispastics polystyrene ) insulation material with 0.426 two side steel panel | |
| Lighting system | Upper oblique 45°,8 group *3 pcs =24pcs ,16w led energy saving lamps | |
| Cabinnet Setting | Intake air from upside ,downside exhaust wind ,frame made tube 50*50mm ,0.8mm galvanized plate for body plate | |

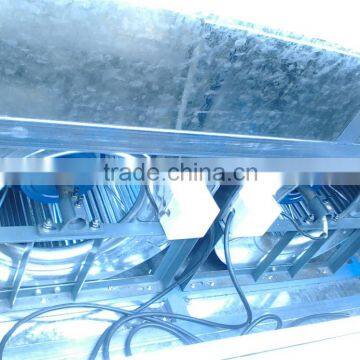

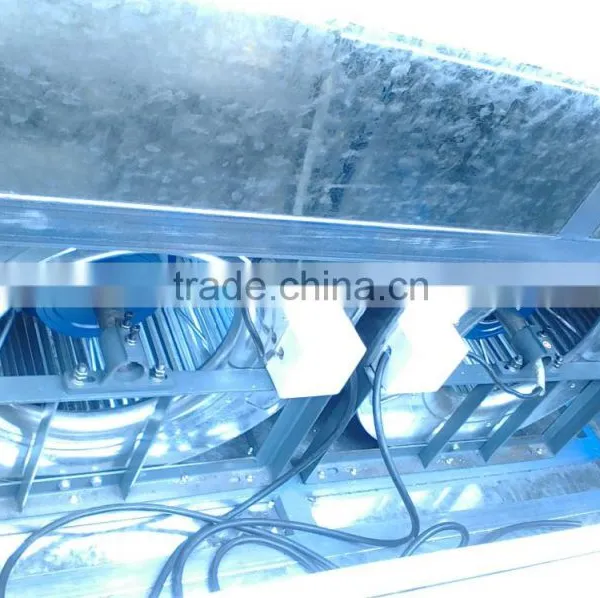

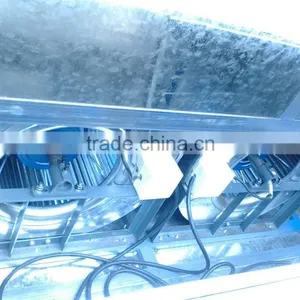

| Ventilation system | 2 pcs double inlet Siemens technology dedicated fans :single parameter :YOW5.6m.4kw .12500m³/h | |
| 1 pcs exaust centrifugal fans .Single parameter :TAE-710H,5.5kw ,18000m³/h | ||
| Heating system | 30 pcs infrared carbon fiber lamps ,800W per piece ,6 piece one group .The operating temperature 50°-75°.Max temperature 80° | |

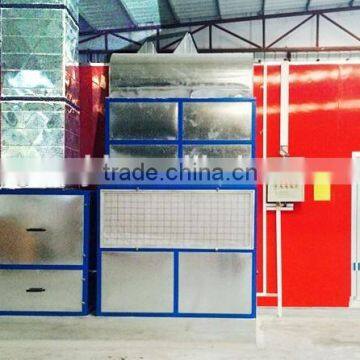

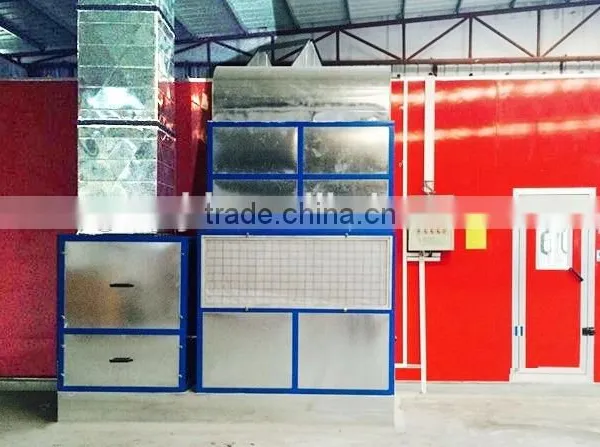

| Filtration system | Air inlet with prefilter ,ceilling equiped with high effciency filter ,can effectively filter the 5PM dust articles .With three layers of carbon filter ,plus an environmental protection cabinet | |
| Roof | Galvanized steel panel | |
| Basement | Galvanized grille and channel steel is convex ,column is made of channel steel , dimond plate using high performance anti-rust treatment .2 ramps :2000*630mm(L*W) | |
| Control system | Painting ,baking ,temperature controller , breakdown indicator , power switch ,emergency stop switch and time setting | |
| Voltage frequency | 380V 50HZ | |
| Light intensity | More than or equal to 1000luxes | |
| Air flow speed | More than or equal to 0.25m/s | |
| Total power | 38.5KW | |

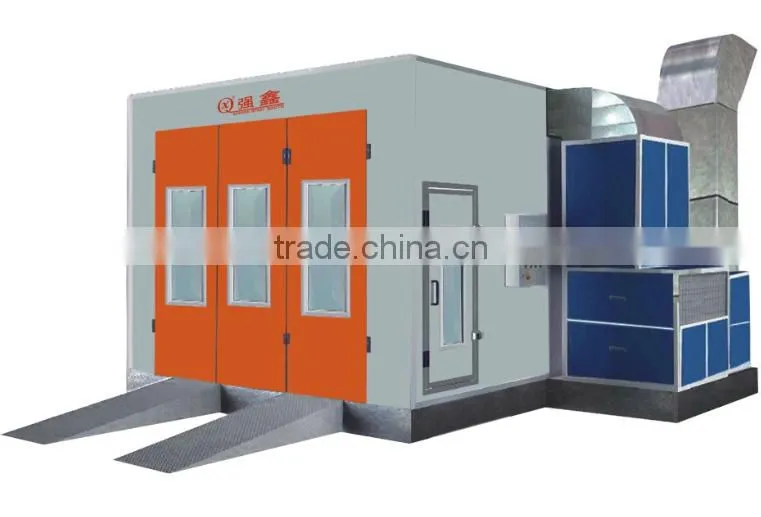

QX2000AB Auto Paint Booth Model
Durable Accessories
Professional Factory

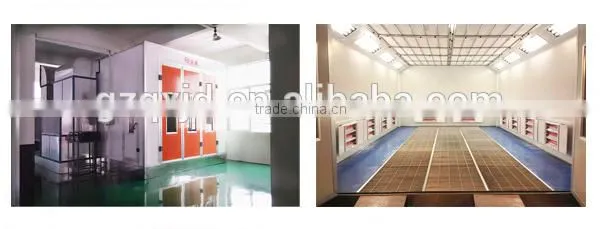

Overseas Project
Service
*Customize service and design service
*Trade assurance(100% protection for product quality and on-time shipment)
*One year guarantee for spray booth
*Installation teaching service
*Longlife after-sale service
FAQ
1.Warranty?
--A: One year warranty for all spray booths.
2.How does the spray booth works?
--A: When you need painting,turn on the air blowers,the air intake from
upside,downside exhaust wind,thus enables the circulation of the air inside the spray
booth.When you need baking,turn off the air blowers,and turn on the infrared
lamps.The car paint takes about 30mins to dry.
3.How often we change the air filter cottons?
--A: The prefilter cotton replacement frequency is about 70-100 working
hours,while the ceiling high efficiency filter cotton suggested to change 350-450
working hours.
4.What's the advantage of far electric infrared heating spray booth?
--A: Far infrared do no harm but good to human body;electric lamp is easy to set
up and easy to operate,less power consumption than diesel fuel or gas heating spray
booth.
5.Aftersales service?
--A: We have expert to instruct all clients for spray booth installation,operation and
maintenance.We provide video,instruction book,3D drawings,Photos to help each
client to install.We are pleased to offer any related service too.
6. How to maintain the spray booth?
--A: Qiangxin spray booths are easy for maintenance.Install the spray booth inside
factory,change the filters in the guidence of the instruction,clean the spray booth
cabinets and air blowers few times every year.
