Car Spray Booth Paint Booth Baking Booth
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power:
40kw
External Size:
8.3x8.4x5.5
Internal Size:
8.3x8.4x5.5
Payment & Shipping
Payment Methods:
Port of Shipment:
guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Promotion Automatic Aluminum Coil Coating LineNegotiableMOQ: 1 Unit -
High Quality of Aluminum Coil Powder Coating LineNegotiableMOQ: 1 Unit
-
Powder Coating Line for Aluminum Coil WholesaleNegotiableMOQ: 1 Unit
-
Automatic Powder Coating Line Electrophoresis Electrophoresis Coating LineNegotiableMOQ: 1 Unit
-
Guangli Electrophoretic Coating Products Line Electrophoresis Coating LineNegotiableMOQ: 1 Unit
Power
40kw
External Size
8.3x8.4x5.5
Internal Size
8.3x8.4x5.5
Voltage
380v/3phase/50hz
Certification
CE
No Load Speed
0.25m/s
Place of Origin
Guangdong, China
Brand Name
Guang Li
Model Number
GL-L4

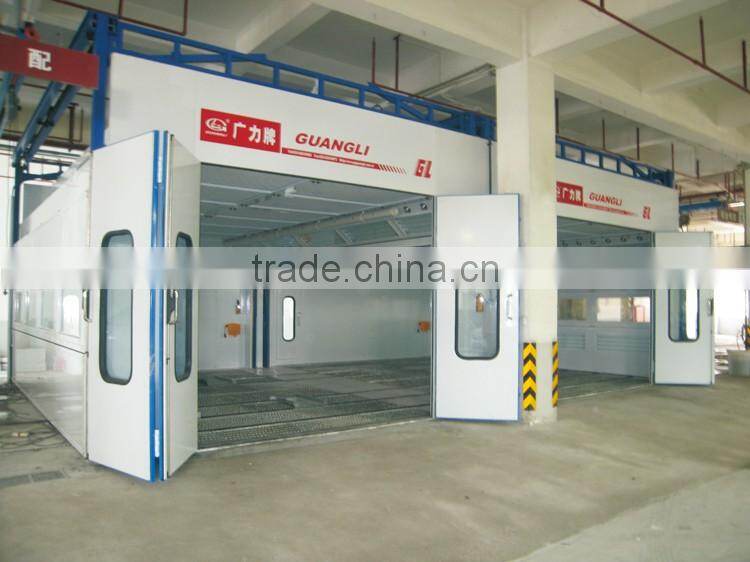

Car Spray Booth Paint Booth Baking Booth
Product Description
Auto Works Painting Line Feature
Multi-baysLines:Prepstation+Paintingbooth+Bakingbooth+Polishingarea

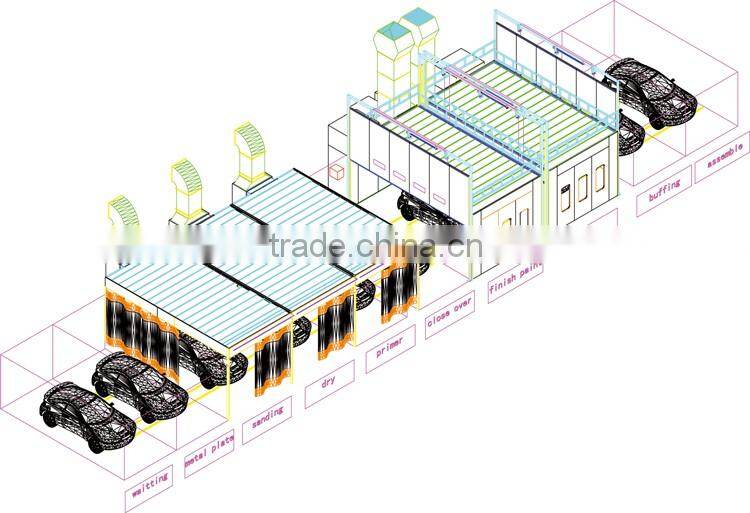

Working process:
- Park the vehicle on the four movable jacks in the waiting area.
- Push the vehicle to the wanted working area in order, and then carry out Body works, Sanding, Priming, Masking, finishing paint, Drying, Polishing and Assembly in this line.
- The transition in different areas is realized by moving vehicles along the jacks.
Structure:
- Painting and baking are working separately in this line, vehicle can through from the moving door in side wall.With close curtain at two side of optional prep station.
- This line consists of painting room, barking room, rails and movable jacks.Prep station and infrared light are for option.
- Painting room and baking room are connected in parallel. Ventilation and heating system placed at rear.
- The transition in different area is realized by moving vehicle along the jacks.
- Pull& Push Folding Door is standard, automatic control vertical suspending door and sectional suspending door for option.
- If specified with vertical suspending door, the height of workshop should be at least 5.8M.
- A small spray booth can be installed outside the line to the painting and backing for parts.
Auto Works Painting Line Show
| Technical Specifications | GL-L4 |
| Painting line Length(m) | 36.4 |
| External Size Internal Size | 8.3x8.4x5.5 |
| Painting booth Internal Size | 6.9x3.9x2.8 |
| Baking Booth Internal Size | 6.9x3.9x2.8 |
| Painting booth Air Flow(m³/h) | 25000 |
| Baking Booth Air Flow(m³/h) | 18000 |
| Total Power(kw) | 40 |
| Standard Movable Jacks | 44sets |
| Rail | 5x36.4m |
Remark:
- Dry sand, vertical suspend door with exhaust system.
- The model above are suitable for saloon car, concrete basement made by user.
- Nonstandard design plan can be made as requirement.
Our Other Products
Company Information
GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005, which covers 58000M³of grounding area and 36000M³of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001:
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.
