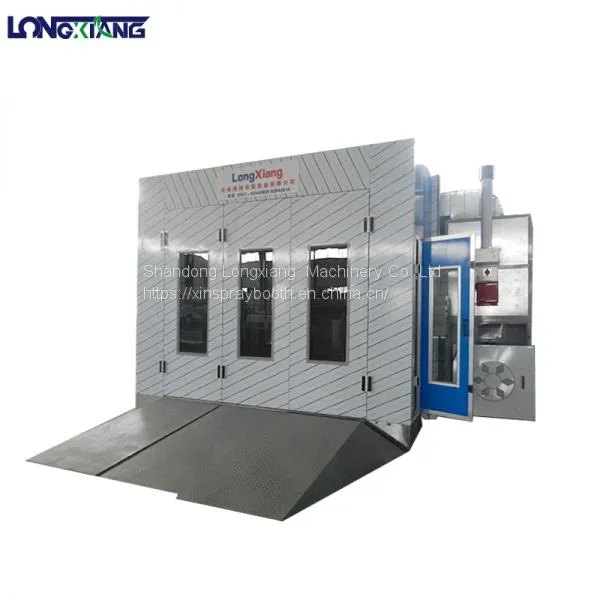

Help CenterCar Spray Booth
Related Products
-
High Quality Spray BoothUS$ 4000 - 7000MOQ: 1 Set -
China Factory Car Spray Booth With CE CertificateUS$ 5000 - 6000MOQ: 1 Set
-
Low Price Electric Car Painting Booth With CE CertificateUS$ 4000 - 5000MOQ: 1 Set
-
Down Draft Infrared Car Spray BoothUS$ 4500 - 6000MOQ: 1 Set
-
Industrial PP Plate Spray Booth for Metal Fabrication and WeldingNegotiableMOQ: 1 Set
Inside Dimension |
6900×3900×2700mm(L×W×H) |
Outside Dimension |
7000×5400×3450mm(L×W×H) |
Main Door(W×H) |
3 folds door , 3000×2600mm ,it is bending steel without cover frame. This type is very strong and beautiful . Also equipped with Handle & Lock. |
Personal Door |
1fold ,800×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock . |
Wall Panels |
-High quality double construction insulation EPS panel, thickness: 50mm. -Galvanized steel roof panel . |
Basement and Floor |
- Galvanized steel assemble,Full metal foundation, height is 280mm . - Five rows flat steel Grilles (galvanized) - 3 pieces of Ramps, each size 970×2000mm (W×L),diamond plate construction. With 2pieces inclined ramps. |
Lighting System |
-LED Ceiling lights:10 units×4pieces =40pieces ×16W -LED Side lights: 10units × 4 pieces =40pieces ×16W |
|
Generator Setting Type |
-Side upper intake air, quadrate steel frame, coated steel ,inside rock-wool insulation. -Electric damper actuates from the spraying to baking cycle. |
Inlet Fan |
1×7.5KW YDW double-intake centrifugal fans, total air capacity: 18000m³/h. |
Exhaust Fan |
1×7.5KW YDW double-intake centrifugal fans, total air capacity:18000m³/h. |
Heating System |
-1set : RIELLO RG5S diesel burner, heating productivity: 260000 Kcal/h, -Adopt high efficient heat-resistant stainless steel as cycling heat exchanger. 4-6minutes (from20 to 60º C) under baking status, max baking temperature is 80° C. |
Filter System |
-The primary filter can capture granules larger than 10μm , filtering rate > 83%. -Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%. -Floor filter( fiberglass paint-stop filter ),filtering rate > 70%. -Activated carbon filter or granules put in cabinet. |
Control System |
Lighting switch, spraying , heat spraying , baking , temperature controller, time setting, emergency stop , failure indicator, hour meter, thermostat . |
Total Power |
17KW (380V/ 220V ,50HZ/ 60HZ ,3 Phase ) |
