Horizontal Woltmann Detachable Dry-Dial Type Cold（Hot）Water Meter

Dongguan Aimeike Valve Co. LTD Business license
Horizontal Woltmann Detachable Dry-Dial Type Cold（Hot）Water Meter thumbnail-1
Horizontal Woltmann Detachable Dry-Dial Type Cold（Hot）Water Meter thumbnail-2
Horizontal Woltmann Detachable Dry-Dial Type Cold（Hot）Water Meter photo-1
Horizontal Woltmann Detachable Dry-Dial Type Cold（Hot）Water Meter photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Factory Size:
1,000-3,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

APPLICATION:



This range of water meter is used to measure the total quantity of cold



(hot) water which consumed in industrial and mining enterprise passing



through the pipeline.




Compliance with Standard: Technical data conforms to ISO4064 Class B



Standard for Horizontal installation











MAIN TECHNICAL DATA



Dia


Qs

Qp


Qt

Qmin

Starting

Min

Max


Size


Overload

Nominal


Transitional

Min

Flow

Reading

Reading


DN

Class

Flow

Flow


Flow

Flow





(mm)














m³/h


L/h


m³












50

B

30

15


3

0.45

150

0.01

9999999













65

B

50

25


5

0.75

170

0.01

9999999













80

B

80

40


8

1.2

280

0.01

9999999













100

B

120

60


12

1.8

400

0.01

9999999













125

B

200

100


20

3

800

0.01

9999999













150

B

300

150


30

4.5

1200

0.01

9999999













200

B

500

250


50

7.5

1500

0.01

9999999













250

B

800

400


80

12

2500

0.01

9999999













300

B

1200

600


120

18

6000

0.01

9999999

















MAXIMUM PERMISSIBLE ERROR



In the lower zone from Qmin inclusive up to but excluding Qt is±5%



In the upper zone from Qt inclusive up to and including Qs is±2%



(Hot water meter±3%)

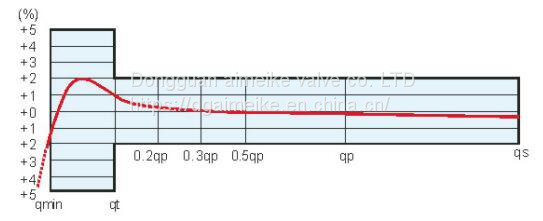

FLOW ERROR CURVE

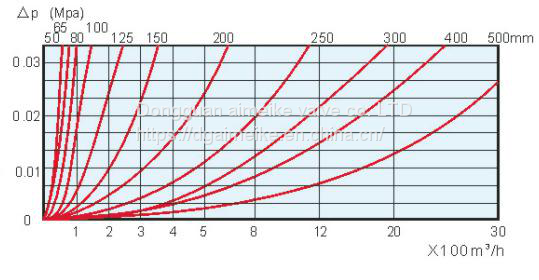

HEAD ERROR CURVE

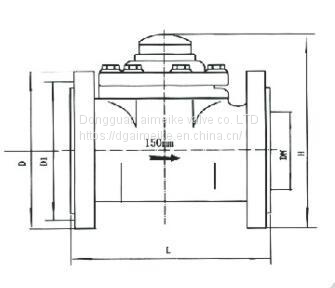

DIMEN SIONS AND WEIGHT



Meter

Length

Width

Height


Connecting Flange


Weight


Size dia

L

B

H





kg


DN(mm)










mm


D mm

Bolt circle dia

Connecting bolt dia








mm


pcs













50

200

175

257

165

125


4XM16

12












65

200

185

267

185

145


4XM16

13












80

225

200

277

200

160


8XM16

15












100

250

220

287

220

180


8XM16

19












125

250

245

297

245

210


8XM16

22












150

300

285

375

285

240


8XM20

47












200

350

345

400

340


295


8XM20

48











250

450

395

484

395


350


12XM20

110











300

450

445

506

445


400


12XM20

115
