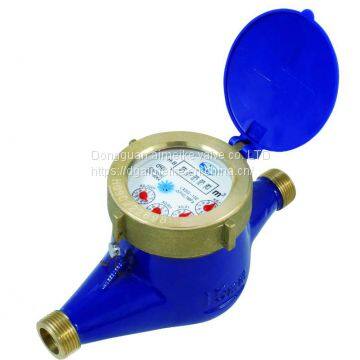

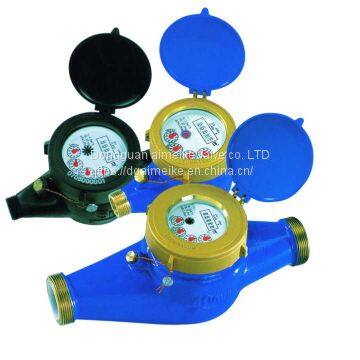

Digital Water Flow Meter Multi-jet Water Meter With Remote Reading DN15mm

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port ShenZhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Quick Detail:

1.Type name: Multi-jet dry-dial

2.Model No.: LXSG-15E2, LXSG-15P2

3.Standard :ISO 4064 Class B

4.Material: Brass

5.Feature :Inlet strainer and return valve is for option

6．Remote reading device

Description:

Multi-jet Water Meter With Remote Reading DN15mm

Product features:

Multi-jet ,Rotary vane wheel type

Dry-dial, Magnetic drive ,Resistance to exterior magnet interference

Material: Brass

Super dry type,brass shell,direct reading, external regulating device.

Magnetic drive, lower transmission resistance

Magnetic shield, for external magnetic field protection

Remote reading transmission system and anti-theft device , the pulse constant :10L/Pulse,100L/Pulse ,1000L.Pluse

Installation requirements:

1. Meter should be installed in horizontal position with the register face upwards

2. Pipe line must be flushed before installation

3. The meter should be constantly full of water during operation

Main Technical data

Meter Size DN (mm)	Class	Qs Overload Flow	Qp Nominal Flow		Qt Transitional Flow	Qmin Min Flow		Starting Flow
		m³/h			L/h
15	B	3	1.5		120	30		14
20	B	5	2.5		200	50		16
25	B	7	3.5		280	70		19
32	B	12	6.0		480	120		25
40	B	20	10		800	200		56
50	B	30		15	3000		450		70

Maximum permissible error:

In the lower zone from Qmin inclusive up to but excluding Qt is ±5%

In the upper zone from Qt inclusive up to and including Qs is ±2%

Working Condition:

Water temperature:0℃≤t≤50℃ （For cold water meter）

Water pressure: ≤10bar （16bar on request）

Competitive Advantage:

100% tested

Long time guarantee

Reasonable price with good quality

On time delivery
