Residential Water Meter Multi-jet Dry-dial Type Cold Water Meter LXSG-15EP ABS
- ShenZhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
You May Like
-
Digital Water Flow Meter Multi-jet Water Meter With Remote Reading DN15mm
-
Home / Commercial Water Meter 50mm~300mm Dry-Dial Type Cold（Hot）Water Meter
-
Yomtey Nylon Multi-Jet Rotary Vane Wheel Wet-Dial Type Cold Water Meter Lxsg-15p ~Lxsg-50p
-
Plastic Body Rotary Piston Volumetric Type Cold Water Meter LXH-15P For Apartments
-
Yomtey Digital Water Meter Brass Body Rotary Piston Volumetric Type Cold Water Meter LXH-15A
-
Yomtey Outside Water Meter Removable Dry-type Cold Water Meter Wth Horizontal Screw Wing
Product Description

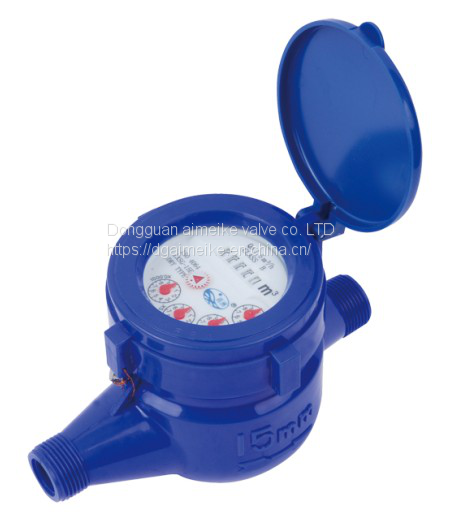

Multi-jet Dry-dial Type Cold Water Meter LXSG-15EP
Multi-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Material: ABS plastic
Good looking
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
Measuring accuracy conform to ISO4064 Class B standard
Installation requirements:
1. Meter should be installed in horizontal position with the register face upwards
2. Pipe line must be flushed before installation
3. The meter should be constantly full of water during operation
Main Technical data
Meter Size DN (mm) |
Class
| Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Starting Flow | Min Reading | Max Reading |
m³/h | L/h | m³ | ||||||
15 | B | 3 | 1.5 | 120 | 30 | 14 | 0.0001 | 99999 |
20 | B | 5 | 2.5 | 200 | 50 | 16 | 0.0001 | 99999 |
Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Working Condition:
Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）
Specifications:
Type | size | L | B | H | Connection thread |
LSXG-15EP | 15 | 165 | 102 | 115 | G3/4B |
LXSG-20EP | 20 | 190 | 102 | 115 | G1B |
Competitive Advantage:
Low price
Stable quality
Long time guarantee
100% tested
On time delivery
