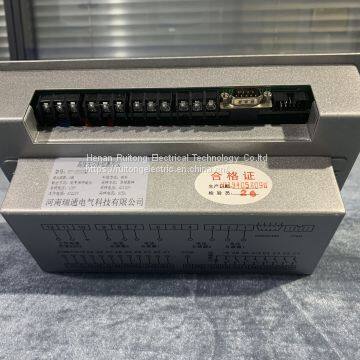

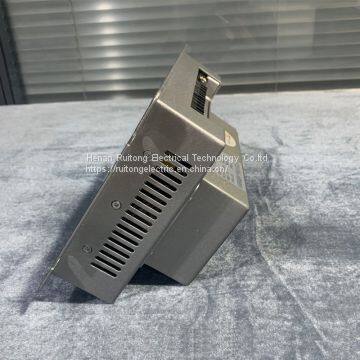

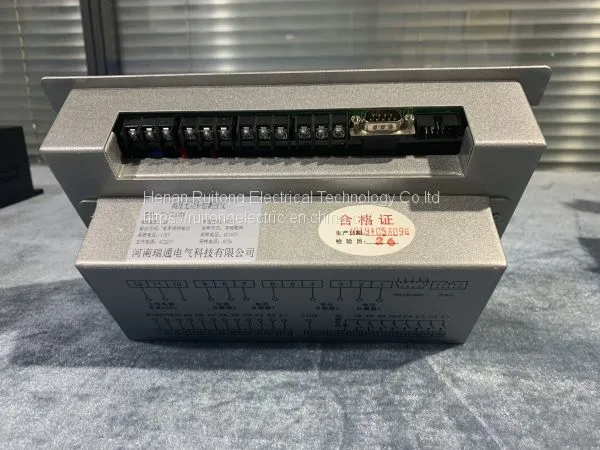

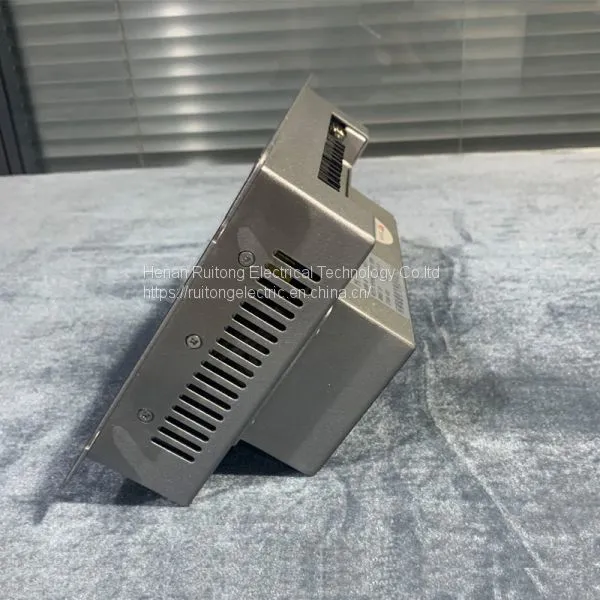

High-voltage Reactive Power Compensation Controller
Product Description:
The high-voltage reactive power compensation controller uses a 32-bit ARM microprocessor chip and a multi-tasking operating system kernel. Mass storage, AC sampling technology, LCD Chinese display, four-quadrant analysis and other technologies have realized real-time data acquisition, communication, historical data storage, fault alarm, power grid harmonic analysis, reactive power compensation and other functions, mainly used in high-voltage distribution networks, Monitor the operation status of distribution transformers and distribution lines and compensate grid reactive power, and automatically control capacitor switching to compensate according to the size of reactive power, power factor and voltage range, effectively improving the quality of power supply voltage and the safety of the distribution network Level of stability and economic operation. This product is a perfect combination with mechanical products, which effectively prolongs the service life of mechanical products, and the products have passed the inspection of the Quality Inspection Center of Reactive Compensation Units of the Ministry of Power Industry.
Product Features:
-- Used for all occasions up to 110kV.
-- Color full Chinese LCD display.
-- Powerful data storage function. Provides data support for fault query, supports
viewing the maximum value of each grid parameter (voltage, current, active power,
reactive power, apparent power, power factor, harmonic distortion) by year, month,
day and hour value.
-- Event record and event trend chart display function in each time period.
-- Various protection functions, such as overvoltage, undervoltage, and harmonic overrun.
-- Open input protection, fault alarm output function.
-- Real-time waveform display function of voltage and current.
-- Real-time monitoring function of voltage, current, active power, reactive power,
apparent power, and power factor.
-- Display the data table of the harmonic voltage content rate and harmonic current content,
and display the histogram corresponding to each harmonic.
-- Can control 8 capacitor outputs.
-- RS485 communication, using general MODBUS protocol.
-- Configurable to realize "Four Remotes" function.
-- Capacitor bank switching status display, switching frequency statistics function.
-- Manual debugging and intelligent switching function.
Main technical parameters:
-- Working power: AC85 ～ 265V, DC100 ～ 230V;
-- Sampling input: voltage 0 ～ 220V, current 0 ～ 5A;
-- Sampling sensitivity: ≥50mA;
-- Measurement accuracy: voltage, current: ± 1%, power factor: 1.5%, reactive power: ± 2.5%;
-- Output capacity: DC + 12V output, ≤50mA / channel;
-- Compensation speed: ≥1s;
-- Altitude: ≤2500 meters;
-- Ambient temperature: -40 ℃ ～ + 70 ℃;
-- Relative humidity: ≤90% at 20 ℃, and higher relative humidity is allowed at lower temperature;
-- Environmental conditions: There is no danger of explosion in the surrounding medium, no gas sufficient to damage insulation and corrosive metals, and no conductive dust.
