Product Overview:

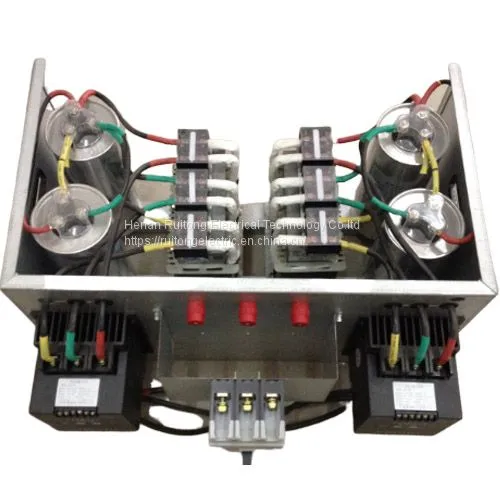

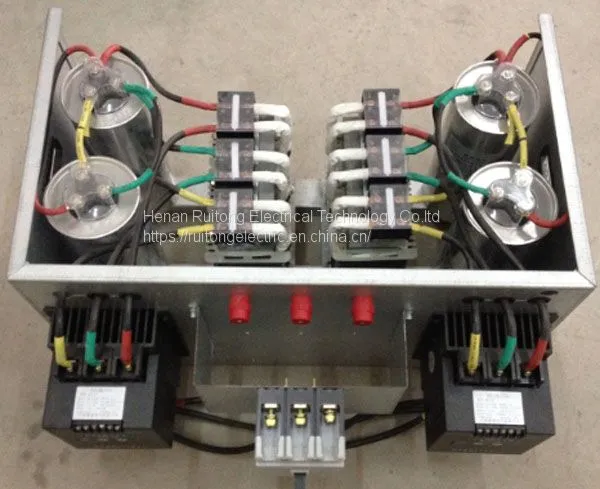

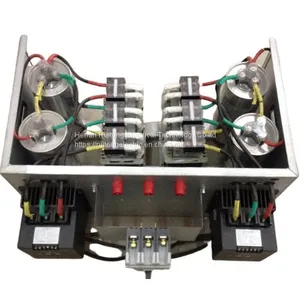

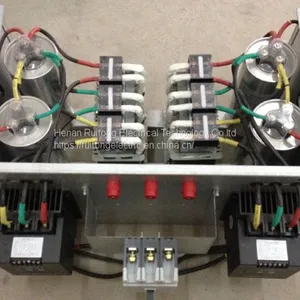

RT-MTSC series low-voltage var compensation module is composed of a molded case circuit breaker, a contactless switching switch, a parallel capacitor, a series reactor and so on, being designed in modular structure. The module can coordinate with low-voltage var compensation controllers and
cabinets to form a low-voltage var compensation cabinet.
Product Features:
- Modular design: compact structure, convenient to expand, easy to install and maintain;
- Block-type assembly structure, which can be combined with various capacities and levels as needed, and can be easily matched with different cabinet types.
- Stable and reliable trigger circuit: the pulse transformer trigger circuit adopted has stable and reliable performance;
- Little impact on the power grid and equipment: with the zero-crossing switching technology, there will be no inrush flow or restriking at turn-off.
- Fast response: response time: ≤ 20ms- Comprehensive protection functions: open-phase protection, overheating protection, and overheating lockout functions;
- Long service life: frequent switching acceptable, long service life and easy and convenient maintenance.
Main Technical Parameters:
- Rated voltage: 400, 250VAC;
- Rated frequency: 50HZ;
- Compensation method: three-phase compensation, phase-splitting compensation;
- Supporting cabinet type: 800*800*2200mm,800*1000*2200mm, 1000*1000*2200;
- Reactance rate: 6% or 12% standard, other reactance rates can be configured as needed.
