Product Overview :

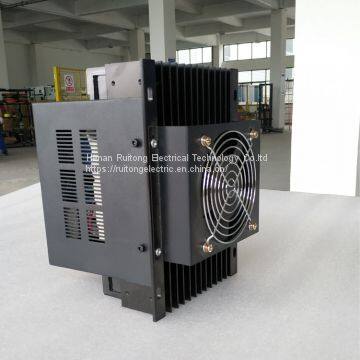

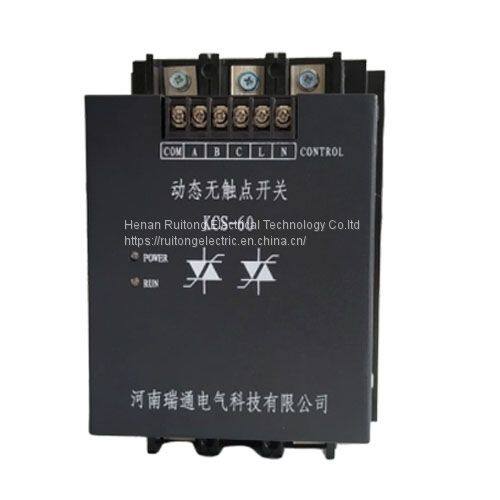

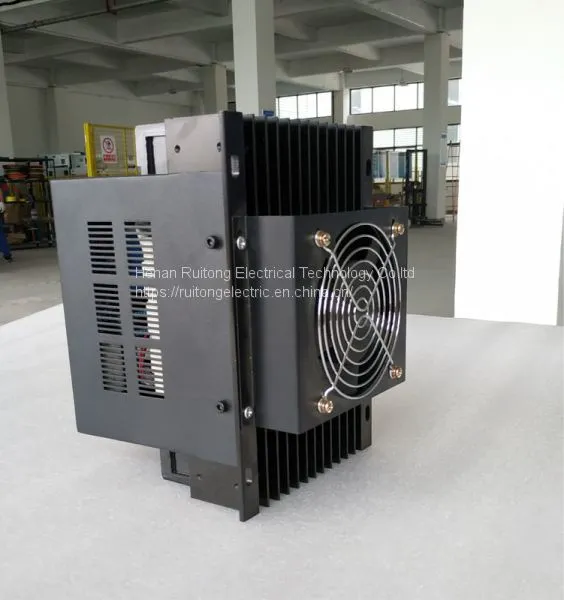

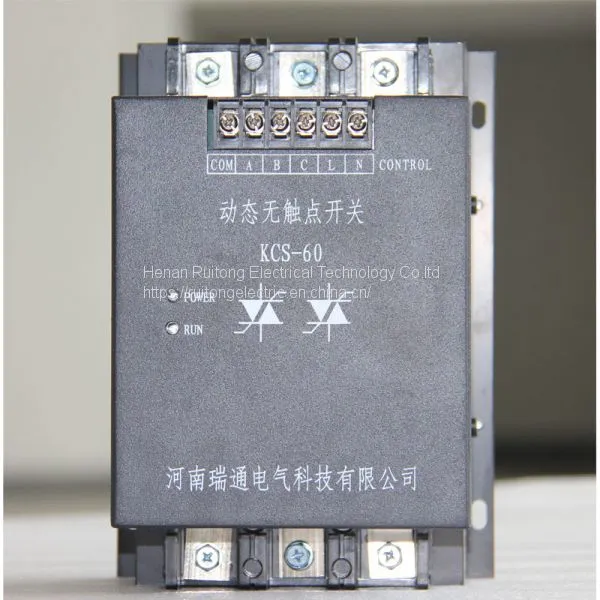

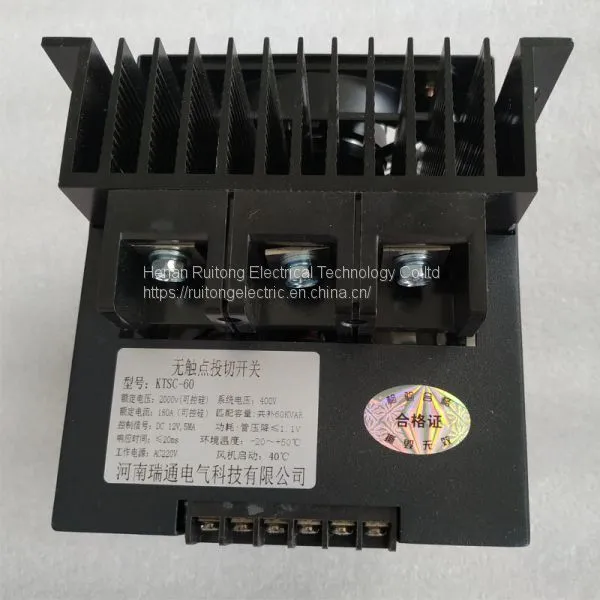

Ruitong Electric RT-KTSC series contactless switching switch is a newly developed type specially designed for the low-voltage multipled capacitors, with high performance, high reliability and without mechanical contact. The switch is composed of bidirectional anti parallel thyristor, trigger board, cooling fin, fan and other components.
Product Features:
-- Steady and reliable trigger circuit: adopt the trigger circuit with pulse transformer, with steady and reliable performance;
--- Little impact on the power grid and equipment: with the zero-crossing switching
technology, there will be no inrush flow or restriking at turn-off.
-- Fast response: response time: ≤ 20ms;
--- Comprehensive protection functions: open-phase protection, overheating
protection, and overheating lockout functions;
--- Long service life: frequent switching acceptable, long service life and easy and
convenient maintenance.
Main Technical Parameters:
-- Rated voltage: 400VAC, 250VAC;
-- Compensation method: three-phase compensation,phase-splitting compensation;
-- Control signal: 9-12 VDC;
-- Response time: ≤ 20ms (total Aswitching time of the three phases)
-- Power consumption: tube voltage drop ≤ 2.0V;
-- Working voltage: 220V.
