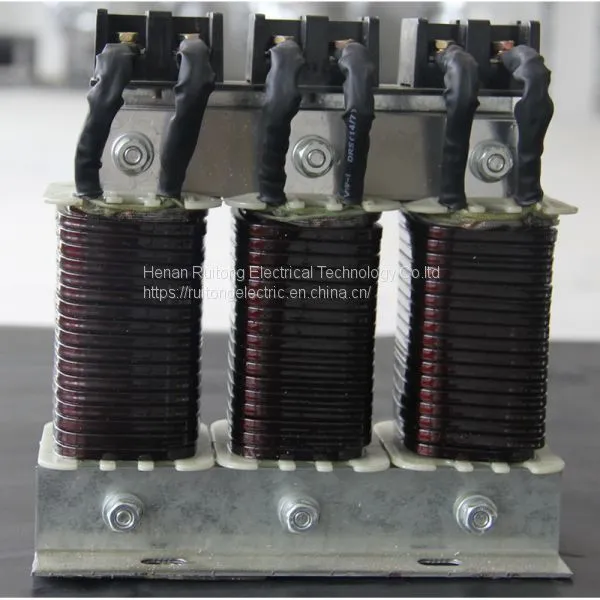

Help Center50kvar Low Voltage Series Reactor For Low Voltage Capacitor
Related Products
-
High Quality 30kvar Contactless Switching SwitchUS$ 79 - 90MOQ: 1 Piece -
Ruitong Electric Var Compensation Controller 12 Channel /24ChannelUS$ 89 - 100MOQ: 1 Piece
-
High Quality 40kvar Ruitong Var Compensation Module ReactorUS$ 320 - 590MOQ: 1 Piece
-
High Voltage Passive Power Filter Harmonic Control DeviceUS$ 8689 - 9800MOQ: 1 Piece
-
Ruiton Low Voltage Series Reactors Filter Reactors 60kvarUS$ 78 - 90MOQ: 1 Piece
|
Product Overview: Low-Voltage Series Reactor is connected with low-voltage shunt reactor to compensate the reactive vacancy of the system and improve power factor. When there are 5 times of large harmonic content, we will choose reactor with 4.5%~6% reactance rate; when there are 3 times of large harmonic content,we will choose reactor with 12%~13% reactance rate, series reactor and capacitor constitute ractive power compensation device.
|
|
Technical Characteristics:
- The coil is made of H-grade or C-grade lacquered flat copper wire, tight and uniform, without insulation, and has a better aesthetic and better heat dissipation. - The coil and iron core of the reactor are assembled into one and then subjected to the pre-baking→vacuum immersion paint→heat-bake curing process. The H-level impregnating varnish is used to firmly combine the coil and the iron core of the reactor. It reduces the noise during operation and has a high heat resistance level, ensuring that the reactor can operate at low temperatures and at low noise levels. -fasteners in the core of the reactor are made of non-magnetic materials to ensure high quality factor and low temperature rise of the reactor. u The exposed parts are treated with anti-corrosion treatment, and the terminals are cold-pressed copper tube terminals. - External leakage parts are treated with Corrosion protection，and the Lead terminal adopts Cold pressed copper tube terminal .
|
|
Main Technical Parameters: - Used for system of 0.4 kV or 0.66Kv - Rated insulation level: 3Kv/min - Noise of the reactor less than 50Db - Type of reactance rate : 1% 6% 7% 12% - Temperature rise limit of each part of the reactor: - The reactor runs long time when Power frequency and Harmonic current is less than 1.35 times the rated current - Reactance linearity: The ratio of the reactance value at 1.8 times rated current to the reactance value at rated current is not less than 0.95 - The difference between the two-phase reactance values of the three-phase reactor is no more than +3% - Temperature rating :above H(180°) |
