Single Geophone 4.5Hz Vertical With Mueller Clips Connector
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
EGL
Place of Origin:
China
Model Number:
EG-4.5-II
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
7 days
Related Products
-
Single Geophone 4.5Hz Vertical With Split Spring ConnectorNegotiableMOQ: 1 Piece -
Single Geophone 10Hz Vertical With KCK Screw Fit Male ConnectorNegotiableMOQ: 1 Piece
-
SM24 Geophone 10Hz , High Precision GeophoneNegotiableMOQ: 1 Piece
-
Geophone 4.5Hz Vertical / HorizontalNegotiableMOQ: 1 Piece
-
SM 4 Geophone 10Hz , Vertical / HorizontalNegotiableMOQ: 1 Piece
Brand Name
EGL
Place of Origin
China
Model Number
EG-4.5-II
Usage
Other, geological seismic exploration
Single geophone 4.5Hz Vertical with Mueller clips connector
The geophone 4.5hz (EG-4.5-II) is a conventional type of moving coil geophone with small error in working parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths.

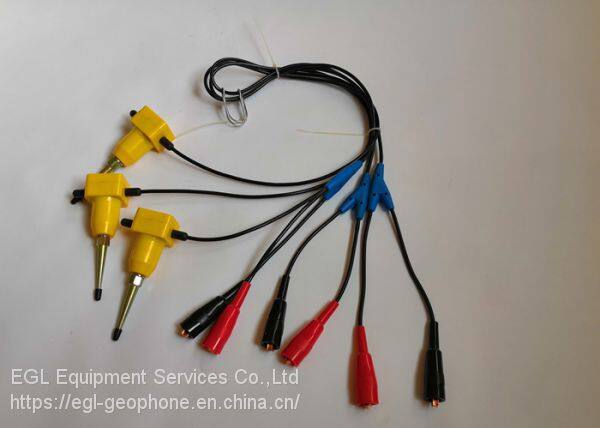

Single geophone 4.5Hz Vertical in Waterproof Land Case with 1m leader cable and terminated with Mueller clips connector.
Data sheets of geophone 4.5Hz
| Type | EG-4.5-II |
| Natural Frequency ( Hz ) | 4.5±10% |
| Coil resistance(Ω) | 375±5% |
| Damping | 0.6±5% |
| Open circuit intrinsic voltage sensitivity ( v/m/s ) | 28.8 v/m/s ±5% |
| Harmonic distortion ( % ) | ≦0.2% |
| Typical Spurious Frequency (Hz ) | ≧150Hz |
| Moving Mass ( g ) | 11.3g |
| Typical case to coil motion p-p ( mm ) | 4mm |
| Allowable Tilt | ≦20º |
| Operating Temperature Range ( ℃ ) | -40℃ TO +100℃ |
| Height ( mm ) | 36mm |
| Diameter ( mm ) | 25.4mm |
| Weight ( g ) | 86g |
| Warranty Period | 3years |
All parameters specified here in are rated at a temperature 20℃±2℃ .
| Shipment | DHL ,UPS , FedEx , By Air , By Sea | |
| By Express | By Air | By Sea |
| Suitable for under 50kgs Fast 5 - 7 work days High cost Door to door service Easy to pick up the goods |
Suitable for more than 50kgs Fast 5 - 7 work days High cost Airport to Airport Professional broker needed |
Suitable for more than 500kgs Slow 20 - 35 days Low cost Port to Port Professional broker needed |
| MOQ | 1 set | |
| Advantage | Fast shipping | |
| Package | Packed by carton | |
| Payment | Bank Transfer, Paypal, Western Union, Alibaba Pay | |
| +86 13991313681 | ||
| +86 13991313681 | ||
