Single Geophone 10Hz Vertical with KCK Screw Fit Male Connector
- 10000 Piece / Pieces per Month
- Xi'an
- T/T PayPal Other
- 7 days
You May Like
Product Details
| Brand Name | EGL | Place of Origin | China | |
| Model Number | EG-10-II | Usage | Other, geological seismic exploration |
Product Description
Single Geophone 10Hz Vertical with KCK Screw Fit Male Connector
The geophone 10hz (EG-10-II) is a conventional type of moving coil geophone with small error in working parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths.

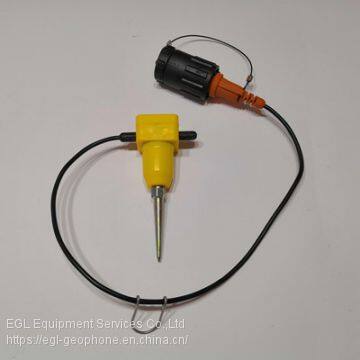

Single geophone 10Hz Vertical in Waterproof Land Case with 75 mm steel spike, with Lead-in cable 1 M and terminated with KCK Screw Fit Male Connector (408 connector).
Data sheets of geophone 10Hz
Type | EG-10-II ( Equivalent to SM-4 10Hz) |
Natural frequency ( Hz ) | 10±5% |
Open circuit damping | 0.271±5% |
Damping with calibration shunt | 0.60±5% |
Calibration shunt resistance(ohm) | 1400 |
Open circuit sensitivity (v/m/s) | 28.8±5% |
Sensitivity with calibration shunt(v/m/s) | 22.7±5% |
Coil Resistance (ohm) | 375±5% |
Harmonic Distortion ( % ) | ≦0.2 |
Typical Spurious Frequency ( Hz ) | ≧240 |
Moving Mass ( g ) | 11.3 |
il excursion p-p (mm) | 2.0 |
Max.tilt angle | 20º |
Element Diameter (mm) | 25.4 |
Element Height (mm) | 32 |
Element Weight (g) | 74 |
Operating Temperature（℃） | -40℃ to +80℃ |
All parameters specified here in are rated at a temperature 20℃±2℃ .
| Shipment | DHL ,UPS , FedEx , By Air , By Sea | |
| By Express | By Air | By Sea |
| Suitable for under 50kgs Fast 5 - 7 work days High cost Door to door service Easy to pick up the goods | Suitable for more than 50kgs Fast 5 - 7 work days High cost Airport to Airport Professional broker needed | Suitable for more than 500kgs Slow 20 - 35 days Low cost Port to Port Professional broker needed |
| MOQ | 1 set | |
| Advantage | Fast shipping | |
| Package | Packed by carton | |
| Payment | Bank Transfer, Paypal, Western Union, Alibaba Pay | |
| +86 13991313681 | ||
| +86 13991313681 | ||
Any question please feel free to contact.
