Home > Products > Geophone Element > 20DX Geophone 10Hz Vertical
20DX Geophone 10Hz Vertical
- 1000 Piece / Pieces per Month
- Xi'an
- T/T PayPal Other
- 7 days
Product Details
Brand Name: | EGL | Place of Origin: | China | Model Number: | EG-10-IV |
Usage: | Other, geological seismic exploration |
Product Description

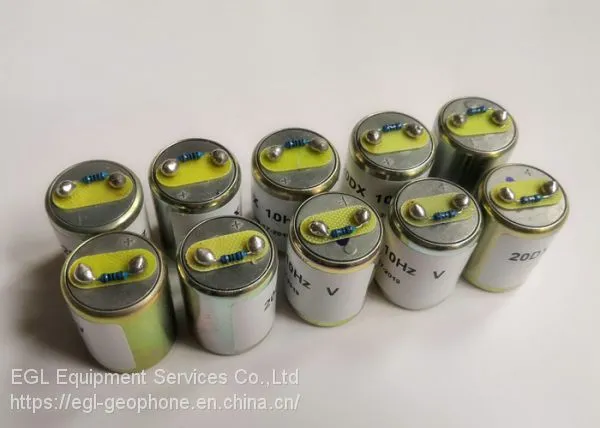

20DX Geophone 10Hz Vertical
The 20DX geophone is a conventional double-lead spring geophone with small error in operating parameters and stable and reliable performance. The structure is reasonable in design, small in size and light in weight, and is suitable for seismic exploration of strata and geological environments of different depths.
Type | EG-10-IV |
Natural Frequency ( Hz ) | 10±5.0% |
Coil resistance(Ω) | 395±5.0% |
Open Circuit Damping | 0.30±5.0% |
Damping With Shunt Resistor | 0.70±5.0% |
Open Circuit Intrinsic Voltage Sensitivity ( v/m/s ) | 28.0 v/m/s ±5.0% |
Sensitivity With Shunt Resistor ( v/m/s ) | 20.0 v/m/s ±5.0% |
Damping Calibration-Shunt Resistance (Ω) | 1000 |
Harmonic distortion ( % ) | <0.20% |
Typical Spurious Frequency (Hz ) | ≥200Hz |
Moving Mass ( g ) | 11.0g |
Typical case to coil motion p-p ( mm ) | 1.5mm |
Allowable Tilt | ≤20º |
Operating Temperature Range ( ℃ ) | -40℃ TO +80℃ |
Height ( mm ) | 33.5 |
Diameter ( mm ) | 25.4 |
Weight ( g ) | 88.5 |
Warranty Period | 3 years |
All parameters specified here in are rated at a temperature 20℃±2℃ .
Shipment | DHL ,UPS , FedEx , By Air , By Sea | |
By Express | By Air | By Sea |
Suitable for under 50kgs Fast 5 - 7 work days High cost Door to door service Easy to pick up the goods | Suitable for more than 50kgs Fast 5 - 7 work days High cost Airport to Airport Professional broker needed | Suitable for more than 500kgs Slow 20 - 35 days Low cost Port to Port Professional broker needed |
MOQ | 1 set | |
Advantage | Fast shipping | |
Package | Packed by carton | |
Payment | Bank Transfer, Paypal, Western Union, Alibaba Pay | |
+86 13991313681 | ||
+86 13991313681 |
Any question please feel free to contact.
