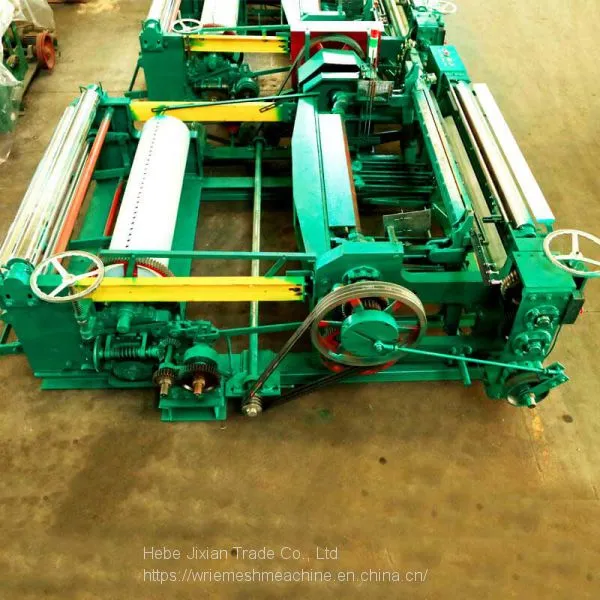

The Medium-duty Metal Wire Net Weaving Machine ZWJ-1300D

The Medium-duty metal wire net weaving machine ZWJ-1300D

Loom Shuttleless Weaving Machinery

Product Details：

Model Number： ZWJ--1300D Power(W): 2.2KW

Dimension(L*W*H): 3.0m*2.8m*1.4m Wire Diameter: 0.10-0.35mm

Mesh Width: 1300mm Mesh Size: 20-140mesh/inch

Beating-up Frequency: 70r/min Warranty: 1 Years

Color:  Requirement   Condition: New

Production Capacity: 100sets / Month Place of Origin: Hebei, China (Mainland)

Packaging Details:  Wooden Case Port： Xingang Tianjin

After-sales Service Provided:  Engineers Available To Service Overseas

Description:

ZWJ-D series type machine is a new type of machine based on ZWJ-B type machine, which is improved on some parts according to the needs of users. Compared with B type machine, the rigidity of D type is greatly improved, so it is more suitable for fabrics with larger weaving diameter.

ZWJ -- D Series Numerical Control Wire Mesh Weaving Machine adopts flexible rapier linear weft insertion, mechanical intermittent automatic delivery, roll net, one card. Weft, treadmill suspension, warp, weft break self-test stop. The design adopts three pairs of steel structure fuselage and enhances the strength of the roller and mechanical structure, so that the machine can withstand large warp tension and has the characteristics of large beating force. It is suitable for weaving various metal mesh belts and contrasting dense lines. Net and square hole net, twill net. We are wire mesh making machine Supplier.

Characteristics:

1, Adaptability to metal wires:Adapt to various imported and domestic metal wires.

2, Large adjust range:The metal wire screen can be woven out mesh but also special kinds up to 2600 mesh,such as plain weaving,twill weaving,mat weaving and taper contrast high density screen weaving,etc,and have advantage over products of         other machines.

3, The machine adopts technique of shuttle-less and straightway weft leading,automatic warp feeding and winding.Shedding are small,and surfaces of woven screens are smooth,and there is not any bright spot,bright trace and other defects on fine screens.The machine can make high -grade in the standard of GB/T 5330-2003.

4, Lower center of gravity,good stability,low noise and energy consumption,high efficiency.

5, Rational design,simple construction,easy to operate and maintain.

Main machine technical parameters of The metal wire net weaving machine:

TYPE ZWJ-1300D ZWJ-1600D ZWJ-2100D

MESH SIZE 20-140mesh/inch 20-140mesh/inch 20-140mesh/inch

WIRE DIAMETER 0.10-0.35mm 0.10-0.35mm 0.10-0.35mm

BEATING-UP FREQUENCY 70 r/min 70 r/min 70 r/min

MESH WIDTH 1300mm 1600mm 2100mm

MOTOR POWER 2.2kw 2.2kw 2.2kw

OVERALL SIZE 3.0m*2.8m*1.4m 3.0m*3.1m*1.4m 3.0m*3.6m*1.4m

Main machine technical parameters of 1300 Series China metal wire net weaving machine:

Item Weaving Width(mm) Wire Diameter(mm) MeshSize(mm) Power(v) WeavingSpeed (T/Min) WeaveType

1300B 1300 0.025-0.200 40-400 380V2.2KW 75-78 Plain and Twill

1300D 1300 0.10-0.35 20-140 380V4KW 75-80 Plain and Twill

1300HD 1300 0.1-0.6 10-40 380V 2.2KW 65-80 Plain

Our Services：

Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair. We also supply CNC Wire Mesh Making Machine.

Packaging & Shipping：The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.

FAQ:

Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost. Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.

Delivery time: 20days after advance payment.

Payment terms: T/T, L/C,WU,MG

Packing: waterproof material,control box: wooden case
