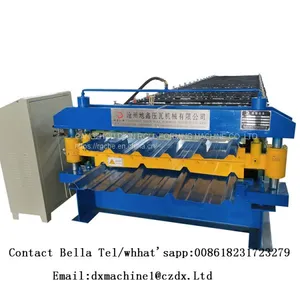

Help CenterDouble Layer Trapezoidal Roof Panel Roll Forming Machine
Related Products
-
Double Layer Glazed Profile Forming MachineryUS$ 9000 - 13000MOQ: 1 Set -
Steel Double Layer Zinc Roof Sheeting Cold Forming LineUS$ 8500 - 10500MOQ: 1 Set
-
Double Trapezoidal Layer Roof Tile Roll Forming Machine With High QualityUS$ 8500 - 10500MOQ: 1 Set
-
Galvanized Metal Roof Sheet Double Layer Roll Forming MachineUS$ 8500 - 10500MOQ: 1 Set
-
Roof Steel Sheet Double Layer Roof Roll Forming Machine PricesUS$ 8500 - 10500MOQ: 1 Set
Double layer steel plate rolling machine
2.Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: as drawing
(4) Feeding width: as drawing
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 350H steel
(11) Medium plate thickness: 16mm
(12) Control systerm:Delta PLC computer control with inverter
(13) Cutting blade material:Cr12
(14) Speed:about 10-12 meter/min
(15) Drived by Chain:1inch
(16) Machine size (mm):8500*1500*1500mm
ing flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table
4.Components of production line
Decoiler |
1set |
Feeding & guiding device |
1set |
Main roll forming machine |
1set |
Hydraulic pressing system |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Run out table |
1set |

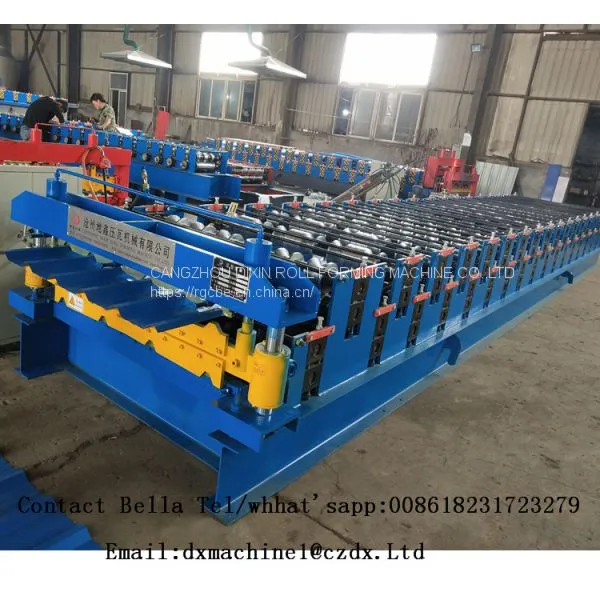

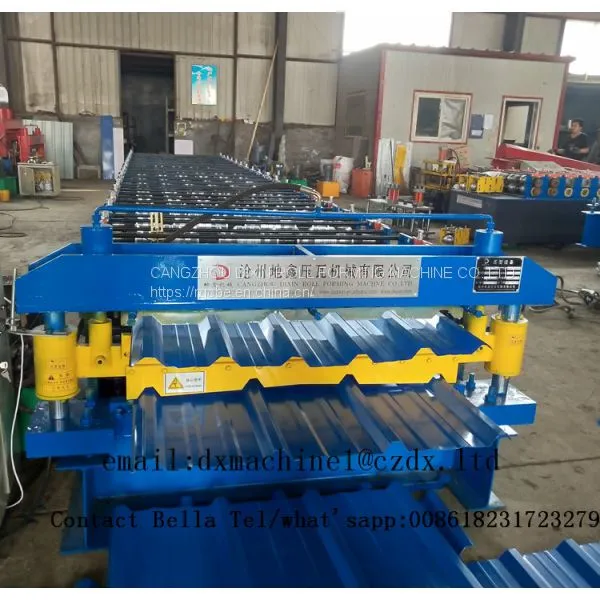

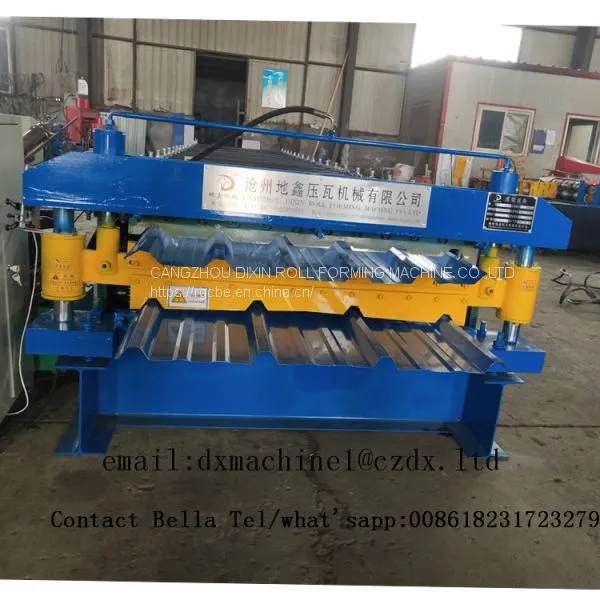

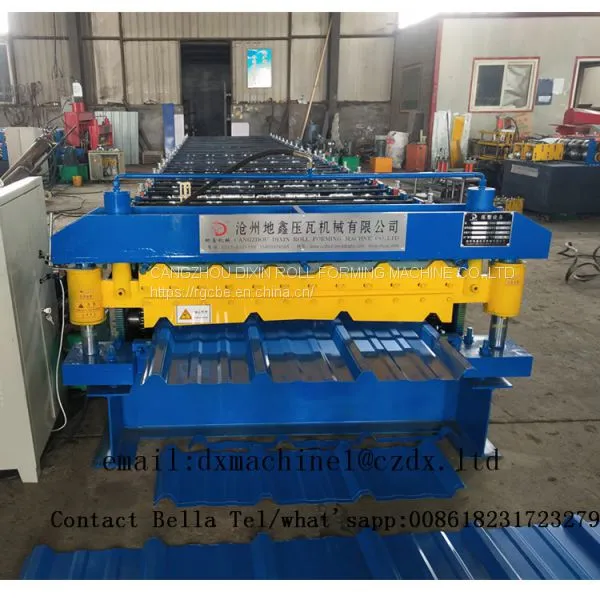

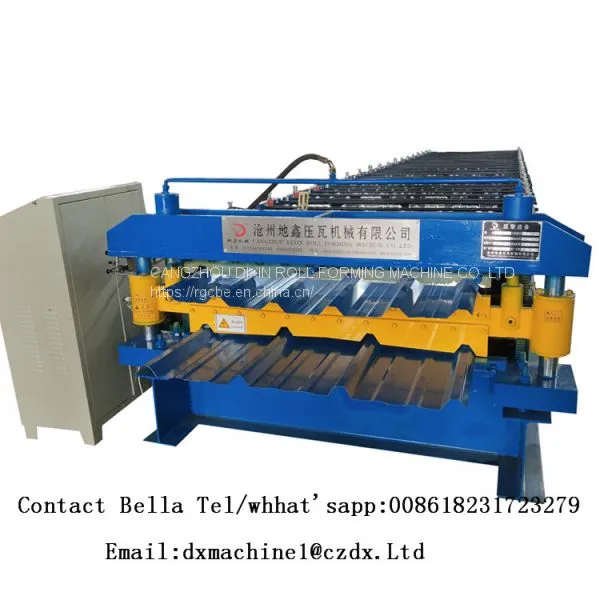

4.Some Machine pictures for your reference.

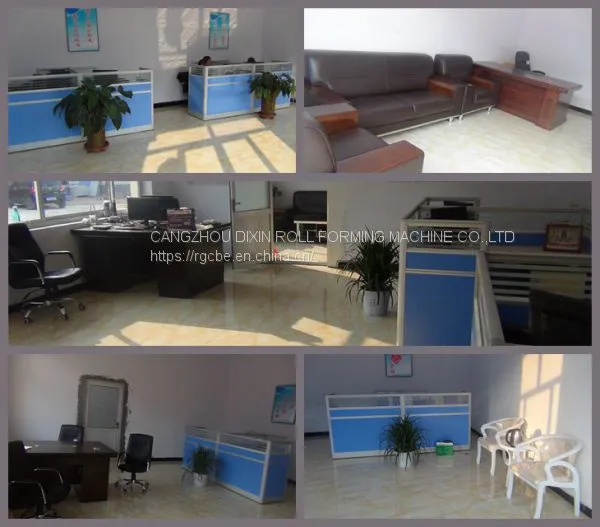

Factory shows
Our company is the professional
and leading manufacture,can manufacture ,design,installation and debug various roll forming
machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile ,
CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame,
guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design
machine according to customer's request.
sincerely hope to estableish business relations with you!
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
