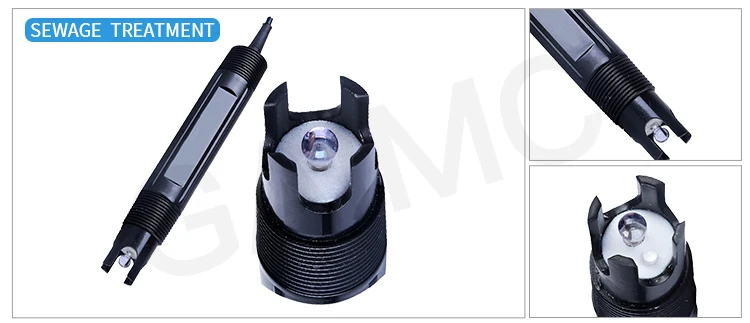

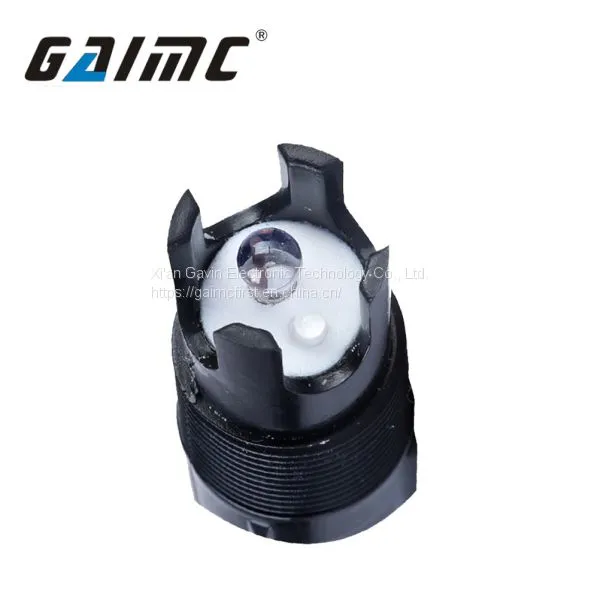

GEC-pH511 composite electrode is a cost-effective electrode developed by our company for various industrial wastewater, domestic sewage, drinking water monitoring and environmental water treatment. It has high measurement accuracy, fast response, good repeatability and low maintenance.
Features1.It adopts the world-class solid dielectric and a large area of PCE liquid for junction, difficult to block and easy maintenance.
2. Long-distance reference diffusion . greatly extends the service life of electrodes in the harsh environment.
3.It adopts PPS/PC casing and the upper and lower 3/4NPT pipe thread,so it is easy for installation and there is no need of the jacket.thus saving the installation cost.
4.It adopts the high-quality low-noise cable, which makes the signal output length less than 20 meters free of interference.
5.Built-in temperature sensor (optional NTC10K , Pt100 , Pt1000, etc.)
6.new glass bulbs, increase the bubble area, prevent the formation of interference bubbles in the inner buffer, the measurement is more reliable.
7.The electrode made with lowest impedance sensitive glass,has the advantages of fast response,accurate measurement, good stability, not easy to hydrolysis.
| Model | GEC-pH511 |
| Measuring range | 0~14pH |
| Temperature range | 0~60℃ |
| Zero potential | 7±0.3pH |
| Pressure | 0.3MPa |
| Slope | ≥96% |

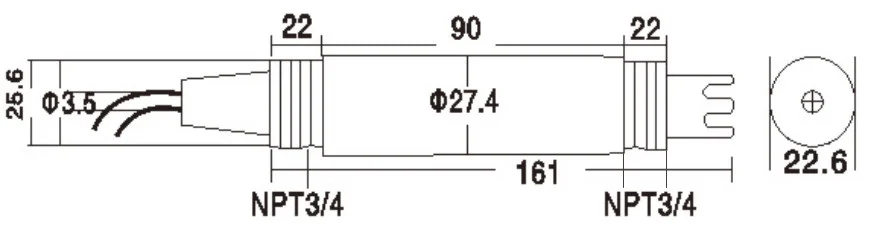

| installation | Up and down 3/4NPT |
| Material | PPS/PC |
| Connection | Low noise cable direct |
| Cable length | 5m(standard)/other customized |
| Application |
Industrial waste water, domestic sewage, environmentally water treatment, etc. |

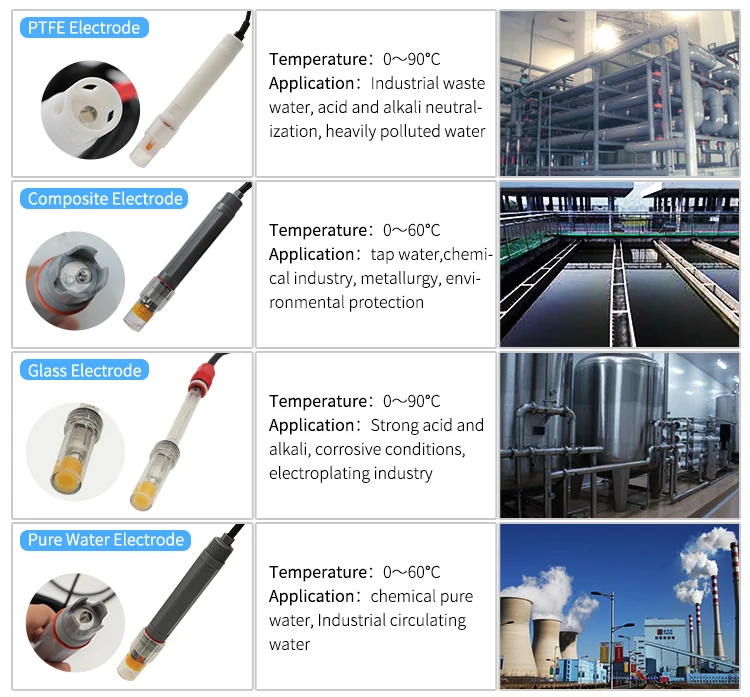

Choose Suitable pH Electrode
