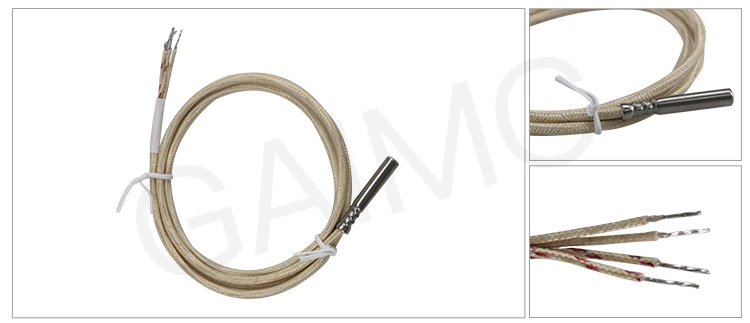

Help CenterGTS300 Class B High Temperature Glass Fibre Pt1000 Temperature Sensor
Related Products
-
GTS300 Three Wire Rtd Temperature Sensor Pt100 ProbeUS$ 3.5 - 10MOQ: 20 Pieces -
GTS-N1017 Waterproof IP68 Aquarium Fish Tank NTC Temperature SensorUS$ 0.3 - 1.5MOQ: 100 Pieces
-
GTS200 Genuine Dallas Ds18b20 Housing Temperature Sensor Probe PriceUS$ 2.5 - 6.8MOQ: 10 Pieces
-
GTS-N1003 SS304 Pointed Tip BBQ Cooking NTC Temperature Sensor ProbeUS$ 0.3 - 1.5MOQ: 100 Pieces
-
GTS-N1006 Fast Thermal Response Time Smoker Grill Oven NTC Temperature SensorUS$ 0.3 - 1.5MOQ: 100 Pieces
RTD temperature sensor is the use of metal platinum (pt) resistance and temperature with a certain functional relation of temperature sensor,Due to its high accuracy, large measuring range, good reproducibility and stability, etc. That are widely used in medium temperature (200 ℃ ~ 650 ℃) in the range of temperature measurement.
Features:
1.High precision, good stability;
2.High sensitivity, good linear;
3.Response time short,good compatibility;
4.Compact structure, easy installation, waterproof good
RTD |
PT100, PT1000 |
Accuracy |
1/3DIN(±0.1℃), Grade A(±0.15℃), Grade B(±0.3℃) |
Temp. range |
1/3DIN: 0~+150℃; Grade A: -50~+300℃; Grade B: -70~+500℃; |
Shell size |
Diameter: ¢ 3~ ¢ 9mm, length: 3mm~1000mm |
Shell material |
Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC. |
Wire |
UL series (such as UL1007), Supply line number, using temp. range, outside diameter and material requirements. |
Connector |
Molex,JST,DuPont,CWB,CJT,etc. |
Drivepipe |
Heat shrinkable tube; PVC tube; glass fiber tube;teflon tube |
How to order↓↓↓
please offer the following necessary info:
♦Temperature range
♦ Application
♦ Probe size
♦ Wire length
♦ Wire end
(send us parameters or drawing reference)
