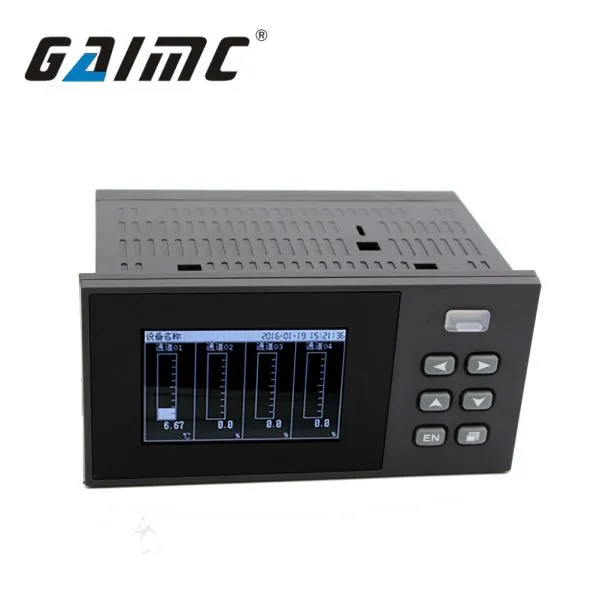

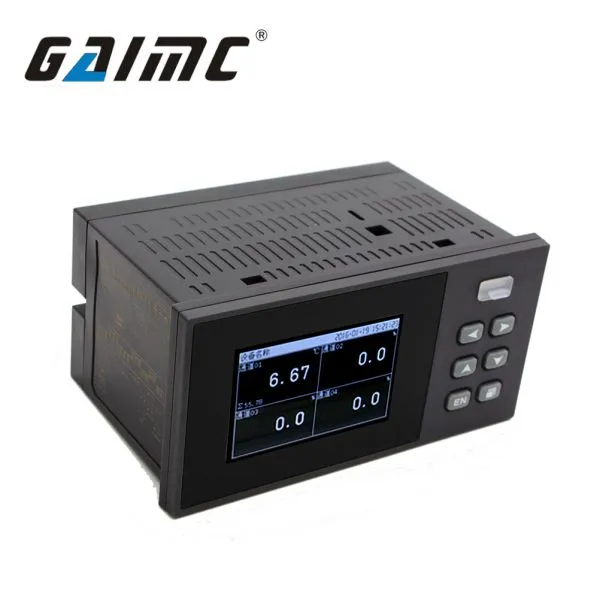

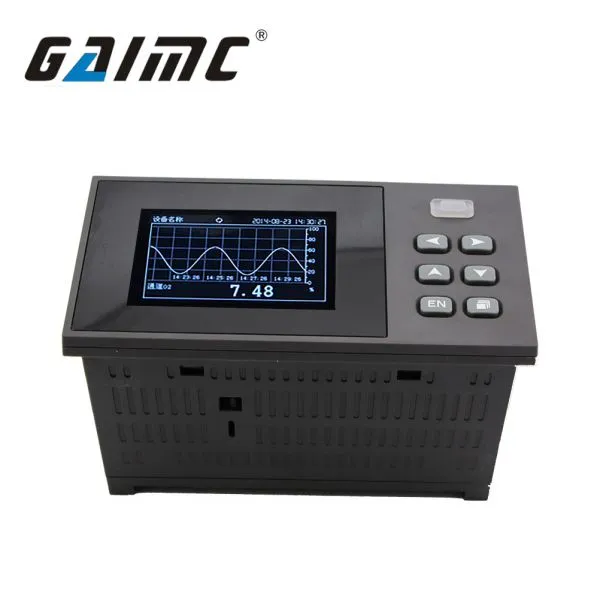

GPR200 Multi Channel Digital RS485 Data Logger Paperless Recorder
US$ 150 - 230
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GAIMC
Place of Origin:
China
Model Number:
GPR200
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
10 days
Related Products
-
GEC-pH512 Industrial Waste Water Digital ph Meter Electrode PriceUS$ 50 - 60MOQ: 1 Piece -
GEC-pH511 Online Sewage Water Quality ph Sensor Probe PriceUS$ 40 - 50MOQ: 1 Piece
-
GWQ-DO280 Fish Farm do Online Dissolved Oxygen SensorUS$ 202 - 350MOQ: 1 Piece
-
GWQ-EC200 Online Food Grade Milk Conductivity Meter SensorUS$ 90 - 180MOQ: 1 Piece
-
GWQ-ph6.0 Industrial Automatic Online ph Meter ec Controller PriceUS$ 77 - 119MOQ: 1 Piece
Brand Name
GAIMC
Place of Origin
China
Model Number
GPR200
Description
GPR200 paperless recorder is an input signal that needs to be monitored and recorded in the industrial field, such as the temperature signal of the thermal resistance and the thermocouple, the flow signal of the flow meter, the pressure signal of the pressure transmitter etc. Data processed by high-performance microprocessors, on the one hand the high-resolution liquid crystal display screen is displayed in various forms on the screen, on the other hand these monitoring data signals stored in the interior of the large-capacity memory chip meter, for Data and graphical query, flip and print directly on the meter.
Detail show
Specification
| Channels | 1 to 4 channels are optional |
| Accuracy | ±0.2%F.S. |

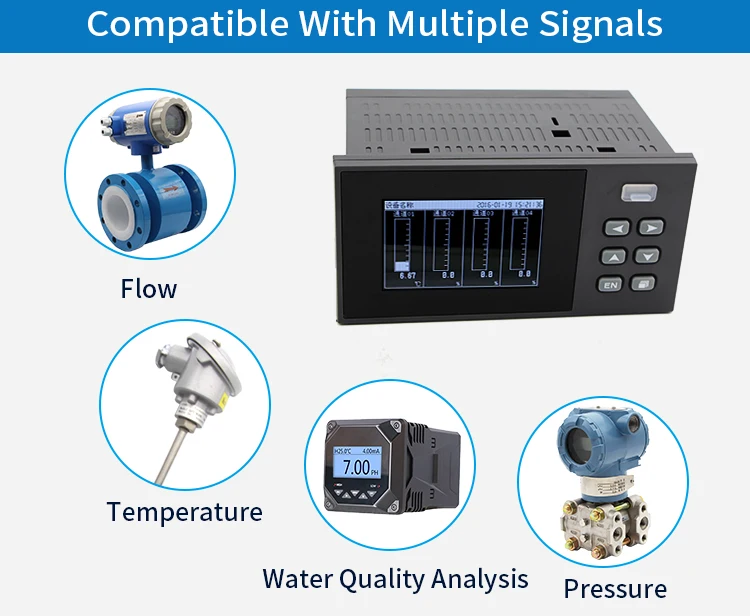

| Input signal | Current, voltage, thermal resistance, thermocouple, frequency, etc. |
| Output |
1 channel 24V output ( standard ) 1 channel 4-20mA ( optional ) 1 to 4 relay alarm output ( optional ) |
| Communication | RS232C or RS485(Modbus-RTU) |
| Relay alarm | 250VAC/3A(normally open contact) |
| Data storage | 3 days to 10 years |
| Dimensions(mm) | 160*80 |
| Opening size(mm) | 152*76 |
| Language selection | Chinese and English switching |
| Power supply | 100-240VAC or 24VDC±10% |
| Additional features | External micro printer |
Type selection
| GPR200 | - | - | - | - | - | Note |
| Channel | 1 | 1 way input | ||||
| 2 | 2 way input | |||||
| 3 | 3 way input | |||||
| 4 | 4 way input | |||||
| Relay output | R0 | None | ||||
| R1 | 1 way relay output | |||||
| R2 | 2 way relay output | |||||
| R3 | 3 way relay output | |||||
| R4 | 4 way relay output | |||||
| Analog output | A0 | None | ||||
| A1 | 1 way 4~20mA output | |||||
| Communication | C0 | None | ||||
| C2 | RS232 | |||||
| C4 | RS485 | |||||
| CP | Micro printer interface(with printer) | |||||
| Power supply | A | 220V | ||||
| D | 24VDC |
Eg:GPR2001-R0-A0-C0-A
Paperless recorder, 1 input, no relay output, no analog output, no communication interface, 220V power supply .
Voice of customer Paperless recorder, 1 input, no relay output, no analog output, no communication interface, 220V power supply .
