Water Treatment Screen Oil Filter Casing Slot Pipe Sand Control Water Well Screens

Water treatment screen Oil filter casing slot pipe sand control water well screens:

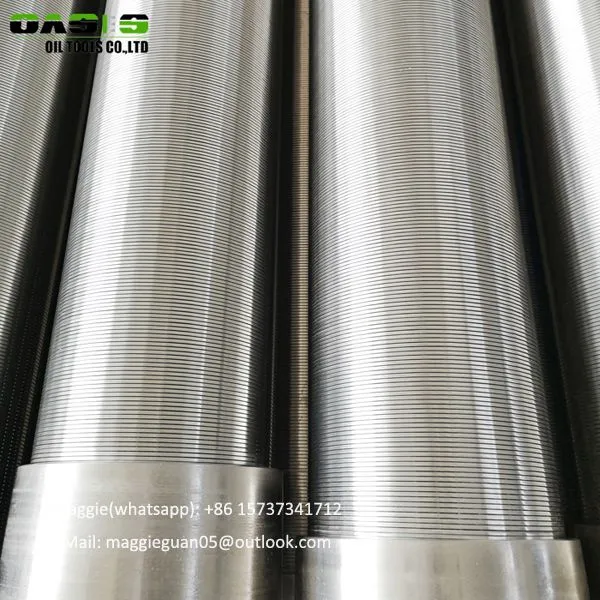

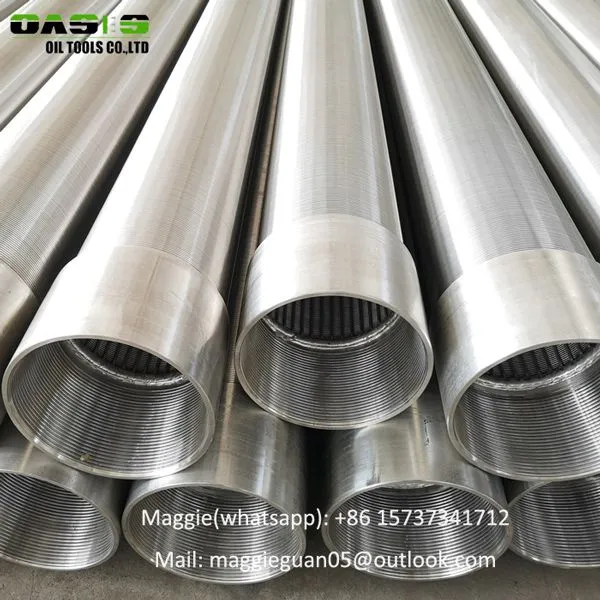

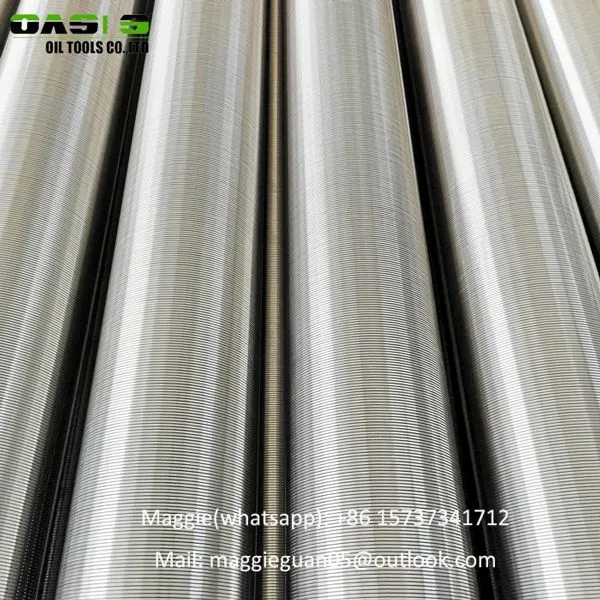

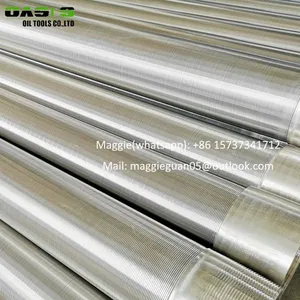

Continuous wire wrap screen: Wedge Wire Screen Pipe

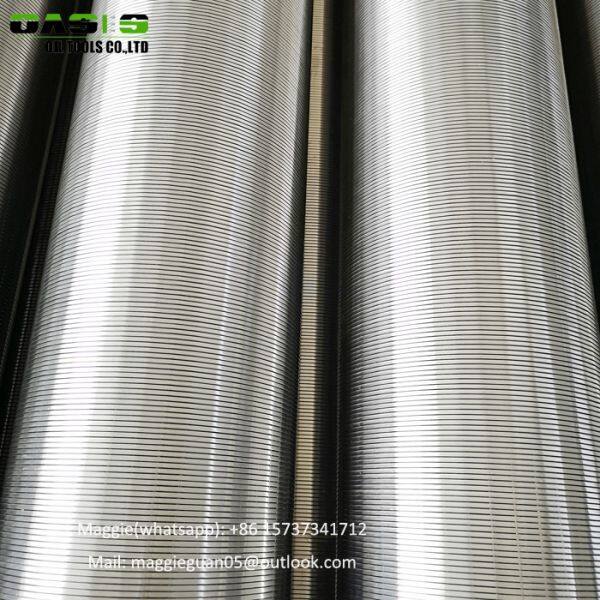

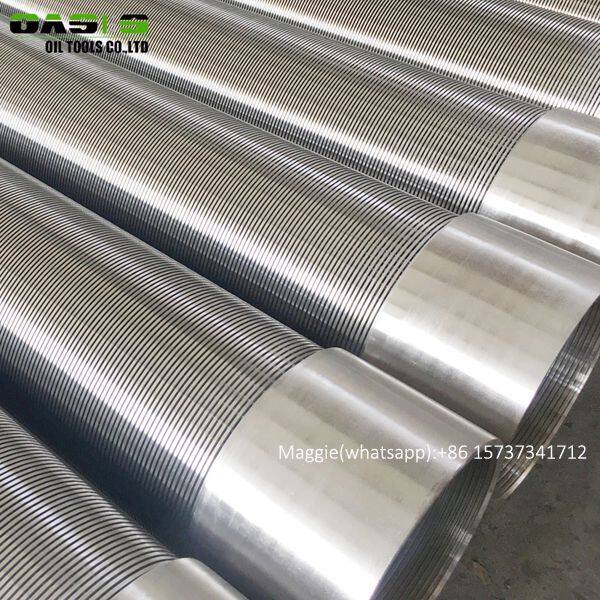

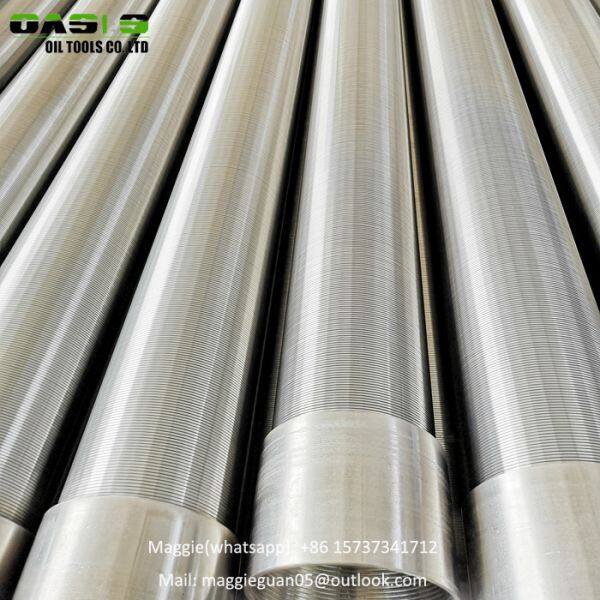

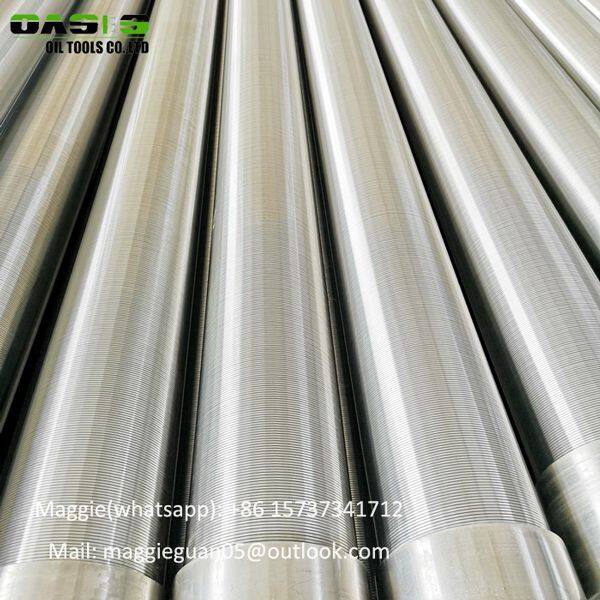

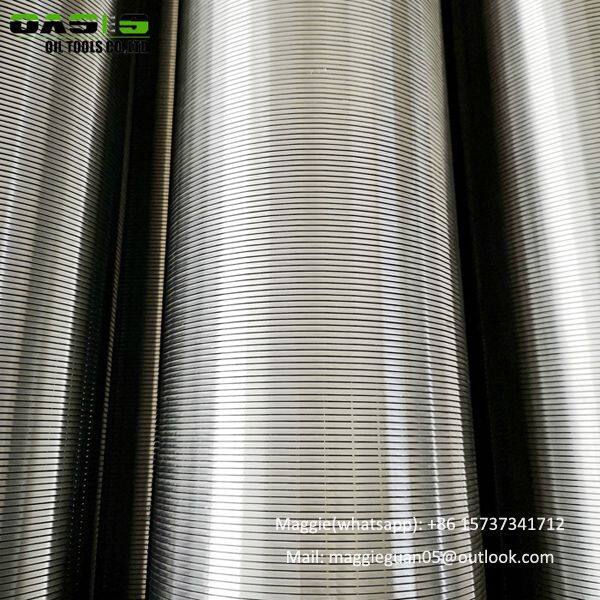

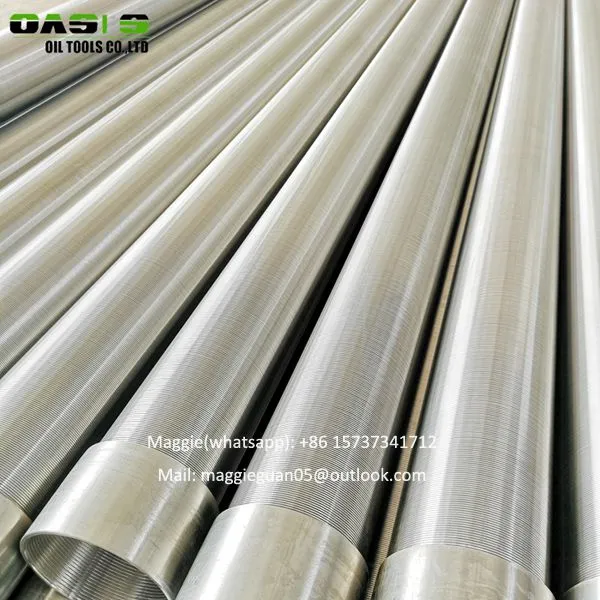

Wedge Wire Screens are used through out the world for water, oil and gas wells, and for environmental well completions. It is the dominant screen type used in the water-well industry. This type of screen is constructed by winding cold-rolled triangular -shaped wire around a circular array of longitudinal rods. The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight. Wedge wire screen is also well known as continuous-slot wire-wrap screen, Johnson screen, v wire screen.

INTRODUCTION

Liquid Solids Separation

Solids removal from process wastewater

Lake and river water intake screens fiber removal

Screen cylinders for rotary screens

Recovering solids

Heavy media recovery dewatering

Collection

Support grids for uniform fluid collection in media filter

Hub lateral screen systems

Header lateral screen systems

Collection of treated liquid in treatment vessels

Filter nozzles for tube sheets

Upflow clarifiers

Gravity filter underdrain systems

Sizing straining and filtering

Resin traps used as an effluent strainer

Sizing of solids

Pressure screens

Filtering particles from treated fluid

Strainers for pump or compressor protection

Retention

Retaining media and collection the treated liquid

Carbon retention screens in carbon-in-puop tanks

Flooring for germination, malt kiln, grain drying rooms

Catalyst retention in catalytic reactors

Fish protection diversion screens

water filter well screens stainless steel strainer sand tubes:

KEY DESIGN FEATURES OF WATER WELL SCREEN

TECHNICAL DETAILS

Available sizes from 1" (25 mm) to 22" (560 mm)

Water well screens designed to suit well depth

Available in slots sizes from 0.15 mm to 3 mm

Length up to 6 metres available

Materials: LCG (Low Carbon Galvanised) / SS304 / S316L / SS316 / SS316L - or as required to meet Customer requirements.

End fittings - to suit Customer requirements

Application(Useage):

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treat-ment, water sofrening treatment, the peteoleum industry.

Our company:
Oasis oil tools co.,ltd has been awarded many honors and certifications such as patents of utility model authorized certificate, quality management system certificate, export licence and pre-export licenses. We can design all types of letters of credit according to your  requirement. Oasis oil tools co.,ltd has developed into a famous and leading manufacturer which integrate the research and development, design, manufacture and sell. Welcome to visit our company.

Welcome to contact with us for more details:
