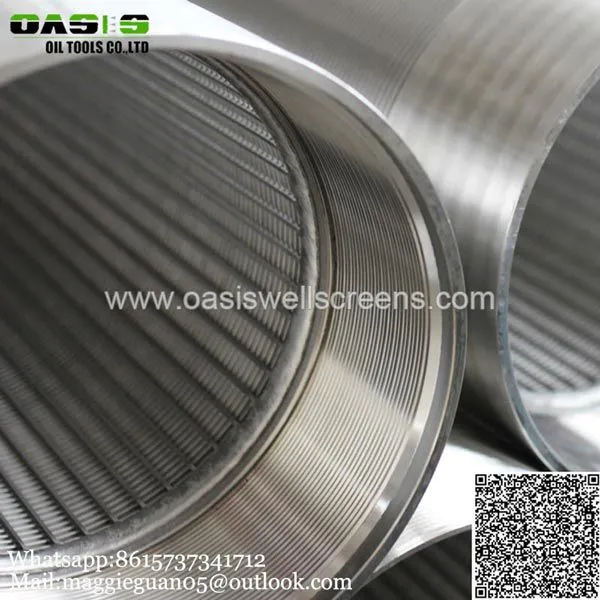

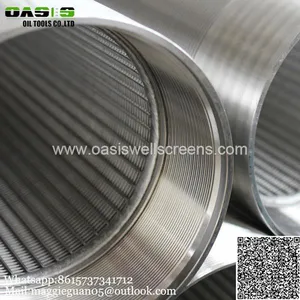

Johnson wire wrapped screens SUS304 grade with thread connection

Johnson stainless steel Slot Continuous screen for sand control (customized):

Johnson Wedge wire screen also be named Vee-Wire screen pipe,Continuous slot Vee-wire screen tube,Water well screen, Wire wrapped screen,Wire wound screen,water filter, etc.

It is made up of Vee-shaped wrapped wire and round rod in each intersection,welded together.

Accurate slot and high filtration precision.

1.Inroduction:

The welded stainless steel water well screen is made up of support wire and filter wire. with the material of stainless steel 302,304,316,304L,316L.

2.Component:

The support wires can be round wires, triangular wires or trapezoidal wires, while the filter wires is triangular wires(V shape wires).

3.Characteristics:

precise aperture size, high filter precision,firm structure, high-temperature resistance, corrosion resistance and mechanical performance is good,long service life, safe and reliable, etc. Can be used in various media filtration and screening.

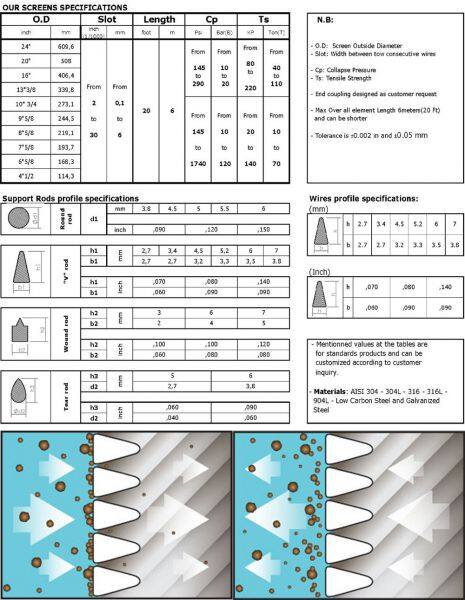

4.Specifications for your reference:

5.Application of Wedged wire screen/Johnson screen pipe/Water Filter tube:

Separating , filtering;

Dewatering;

Classifying;

Straining , drying ;

Water intak;

6.Feature of Vee type Johnson slotted wire screen tube:

• Non-clogging surface.

Large open area.

Low pressure drop.

Hydraulic efficiency.

High flow rates.

Mechanical strength.

Abrasion-resistant.

Easy cleaning.

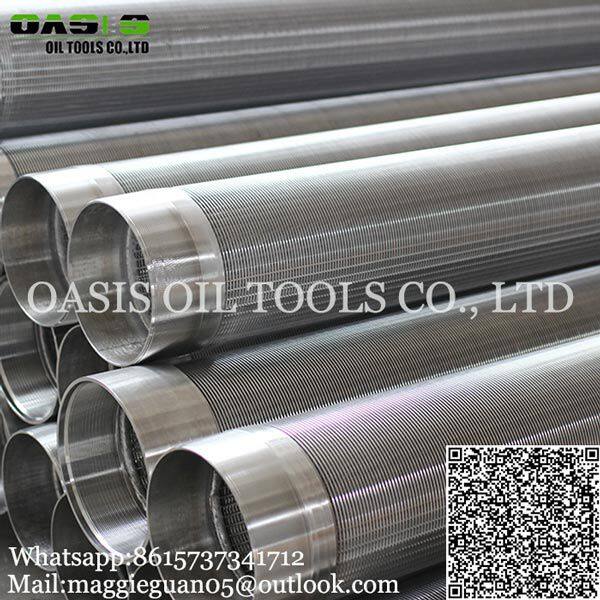

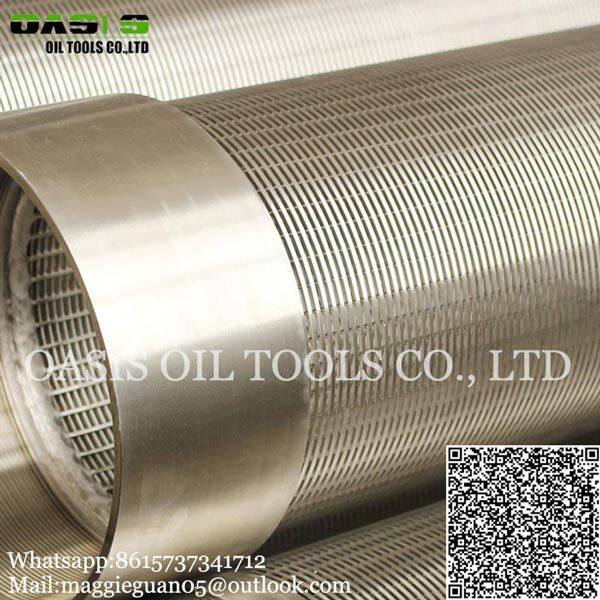

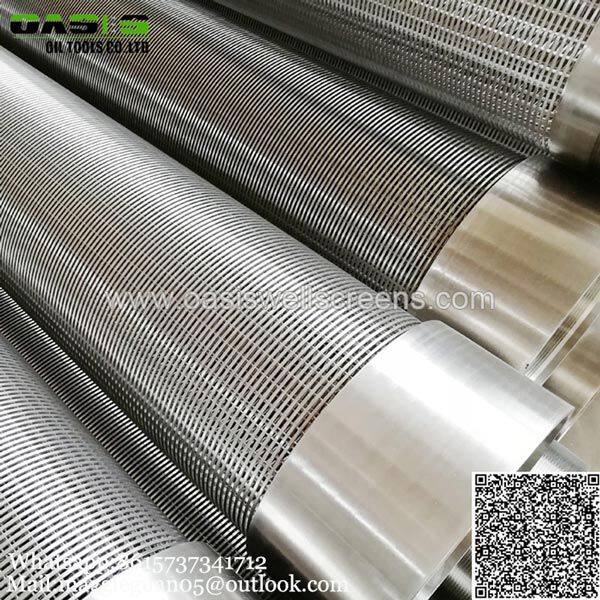

7.Photo shows of water well screen:

8.Feature of Vee type Johnson slotted wire screen tube:

Non-clogging surface.

Large open area.

Low pressure drop.

Hydraulic efficiency.

High flow rates.

Mechanical strength.

Abrasion-resistant.

Easy cleaning.

9.Testing:

1.when raw materials arrive at our factory, we will inpsect the chemical component and then loaded into our warehouse.

2.our inspector will check during all the procedure.

3. before be packaged, our sales manager will inspect the goods with inspector again, approved ones will be labled and packaged.

4.we have person to inspect the loading into container to avoid damage during transportation.

For every different slot opening a new tooling is necessary. So continuous cylinders are only interesting for large quantities. For lower quantities a cylinder is more cost effective.

10.Packing & Delivery:

Packing Details: OASIS 304 316L water well screens/wedge wire screen/stainless steel wire meshes with thread connection are packed with bubble bag or woven bag and then with wooden strip or in wooden case(fumigation certificate).

Delivery time:OASIS 304 316L Johnson V type screen pipe/wedge wire screens/stainless steel wire meshes with thread connection are delivered with 3-30 days or depend on quantity.

11.Our company:

Oasis oil tools co.,ltd has been awarded many honors and certifications such as patents of utility model authorized certificate, quality management system certificate, export licence and pre-export licenses. We can design all types of letters of credit according to your  requirement. Oasis oil tools co.,ltd has developed into a famous and leading manufacturer which integrate the research and development, design, manufacture and sell. Welcome to visit our company.

12.Contact us:

If you have any question about our Water Well screen Johnson wedge wire Screen Pipe, please feel free to contact us
