0.16-0.6 Thin Board Transverse Corrugated Roof Sheet Roll Forming Machine

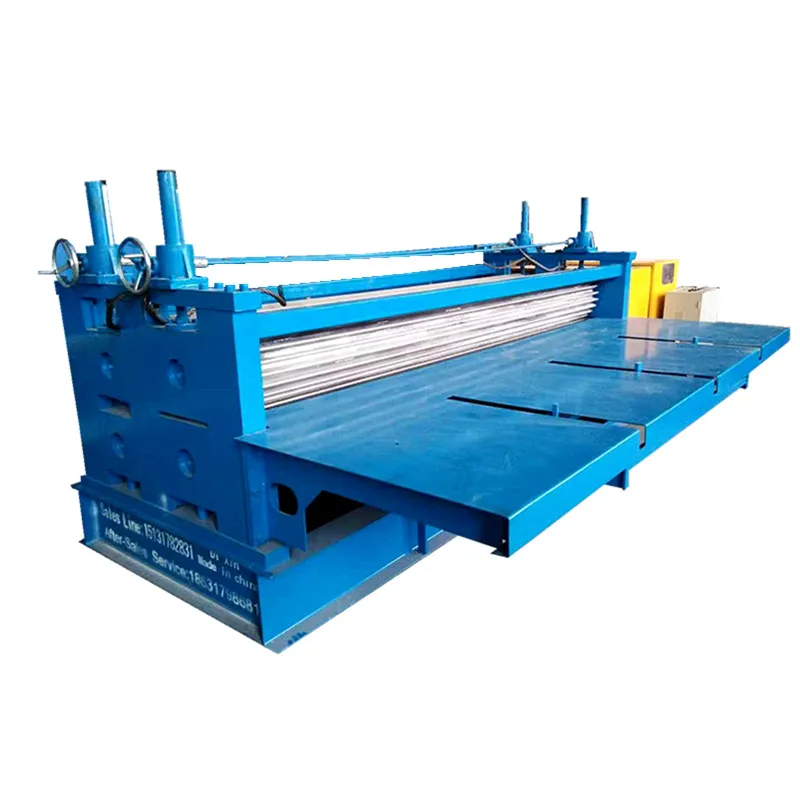

0.16-0.6 Thin Board Transverse Corrugated Roof Sheet Roll Forming Machine photo-1

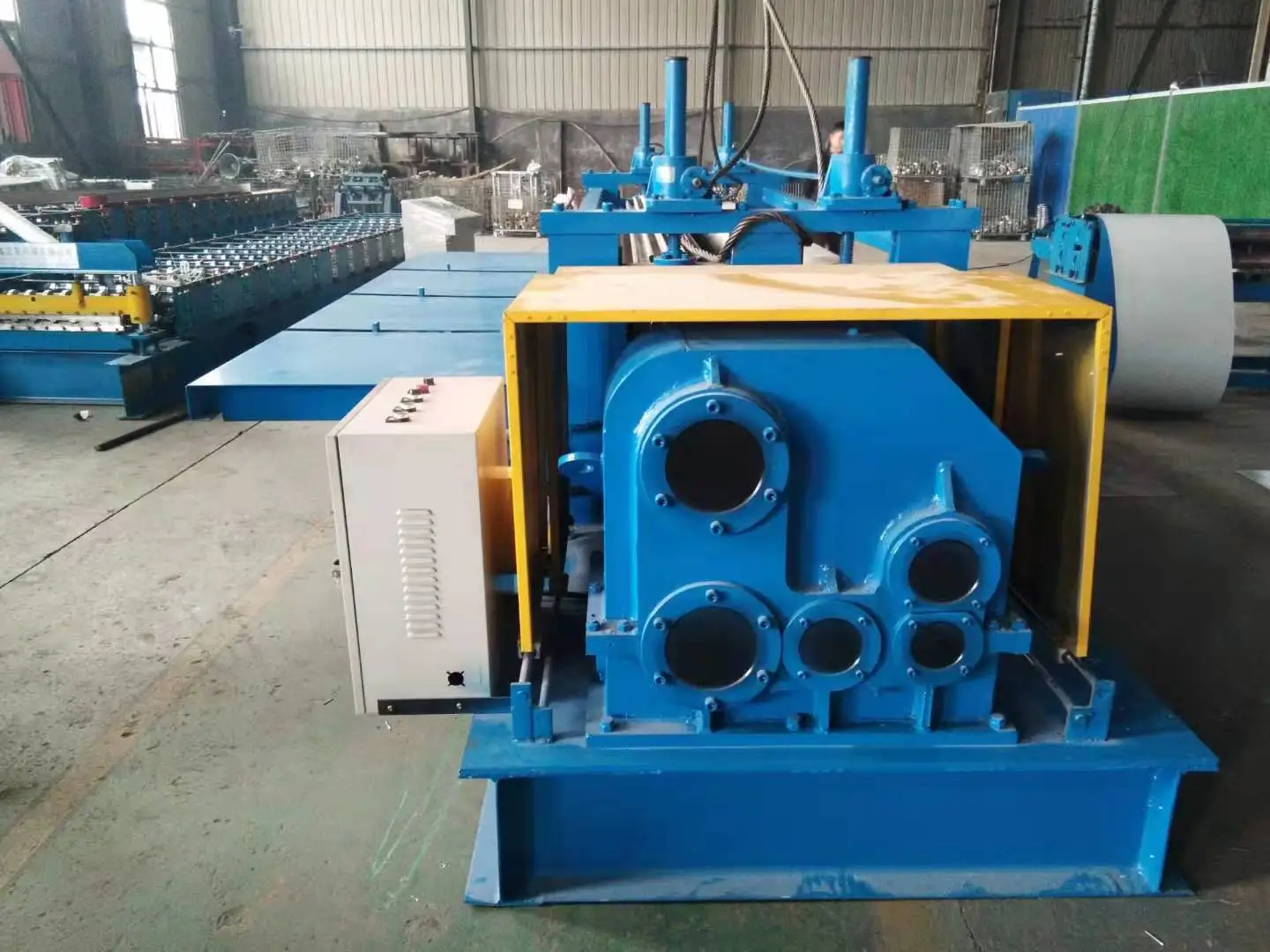

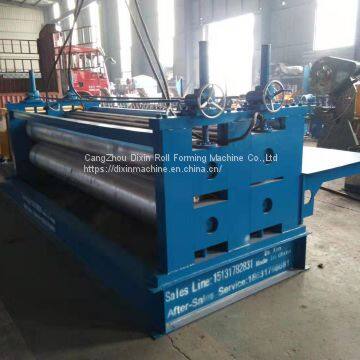

0.16-0.6 Thin Board Transverse Corrugated Roof Sheet Roll Forming Machine photo-2

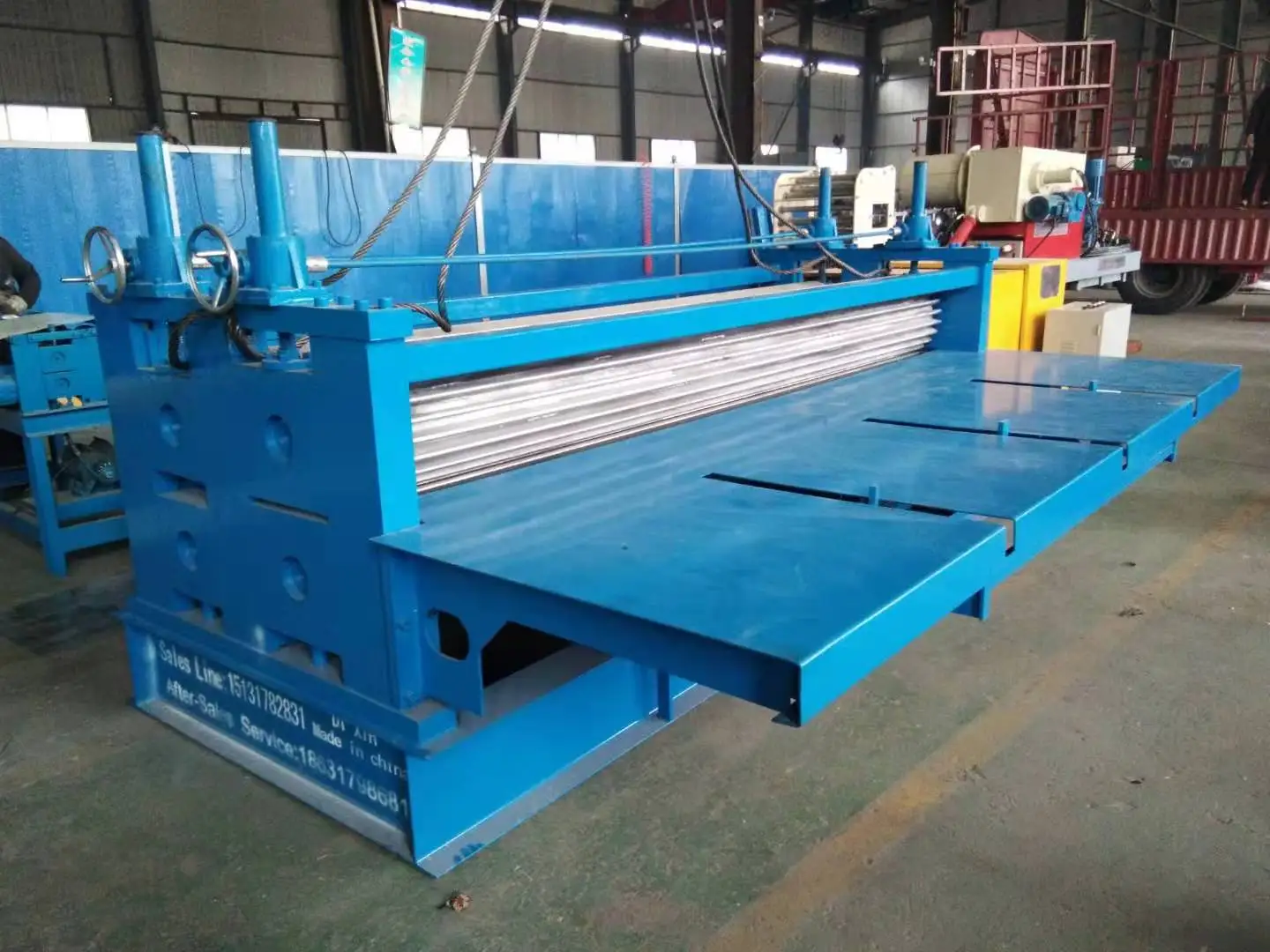

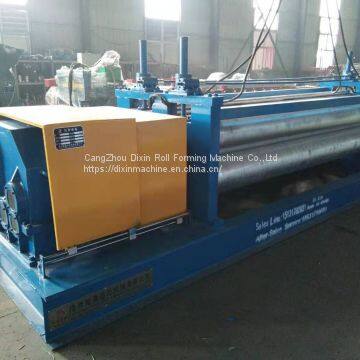

0.16-0.6 Thin Board Transverse Corrugated Roof Sheet Roll Forming Machine photo-3

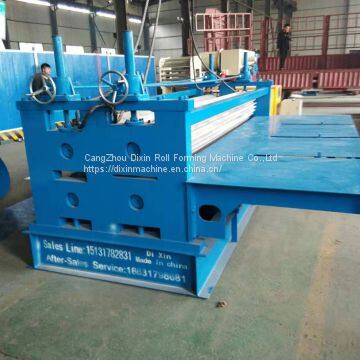

0.16-0.6 Thin Board Transverse Corrugated Roof Sheet Roll Forming Machine photo-4

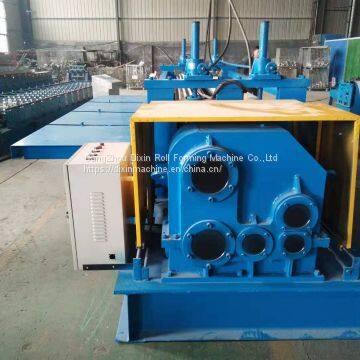

0.16-0.6 Thin Board Transverse Corrugated Roof Sheet Roll Forming Machine photo-5
US$ 15000 - 20000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dixin
Place of Origin:
China
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
25 days
Brand Name Dixin
Place of Origin China
Model Number Customized
Use Roof
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 7Tons
Production Capacity 8-12m/min
Condition New
Voltage 380v
Power(W) 7.5kw
Type Tile Forming Machine
Tile Type Colored Steel

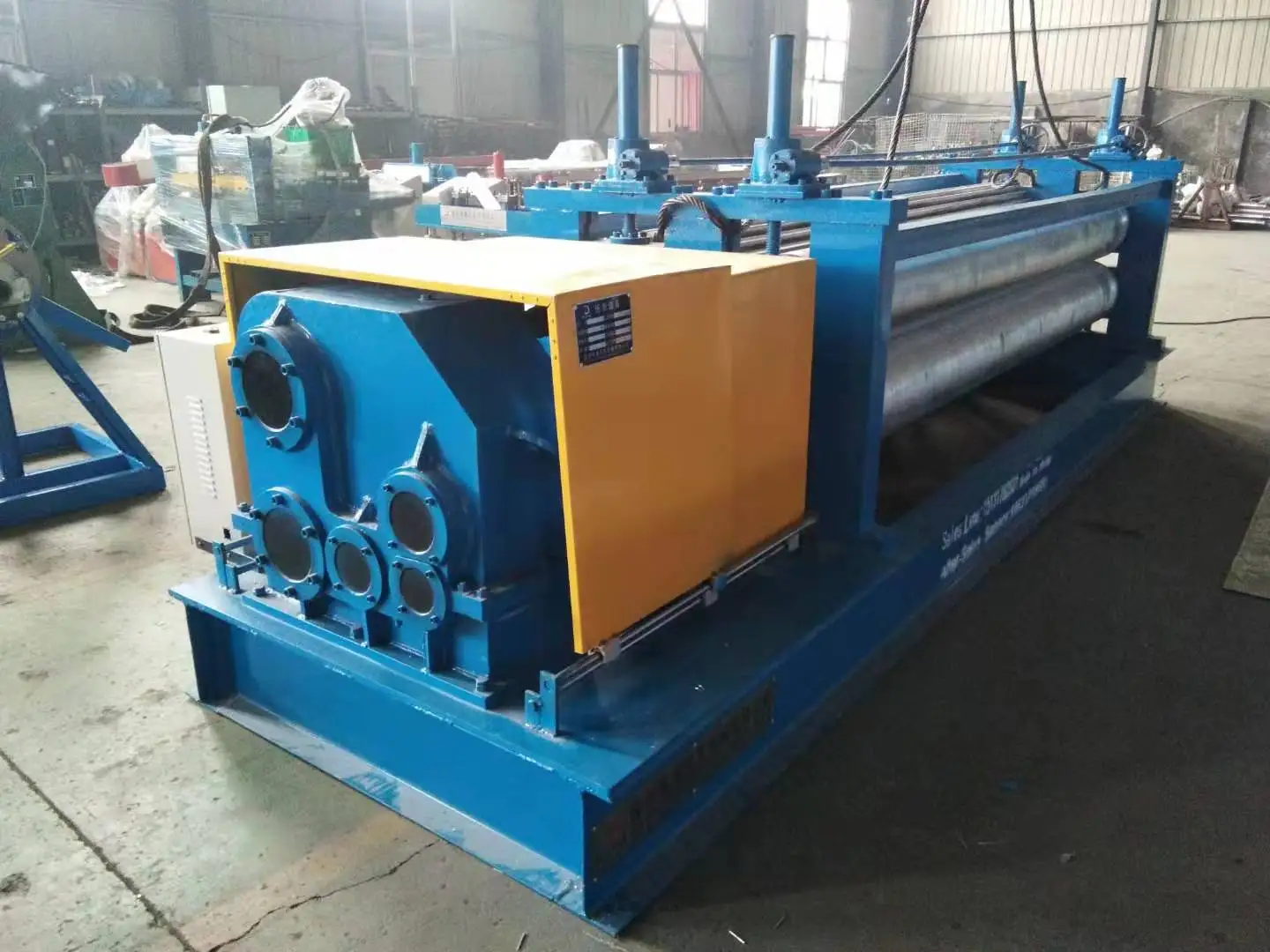

0.16-0.6 Thin Board Transverse Corrugated Roof Sheet roll forming machine





The machine adopts low speed, high torque, low inertia AC motor with a v belt drive to the hardened reducer with double output shaft,to achieve the purpose of transmission and deceleration. The automatic feeding of the working roller is always carried out by the timing chain and the linear guide rail,thus ensuring the stability of the product.







Technical parameter

No.ItemParameter
1.Processing MaterialColor steel
2.Processing Thickness(mm)0.14-0.3mm
3.Material of RollersGcr15,with heat treatment
4.Diameter of Shaft70mm,with heat treatment
5.Production Speed0-15m/min
6.Length MeasurementEncoder
7.Control StylePLC
8.Total Power7.5kw
9.Voltage380V 50HZ or at buyer's request
10.Input width of the plate Based on detailed design
11.Width of the plate after formingBased on detailed sizes
12.Depth of waveCan customize based on you need
13.Pitch of waveCan customize based on you need
14.Output2~4 tons per hour

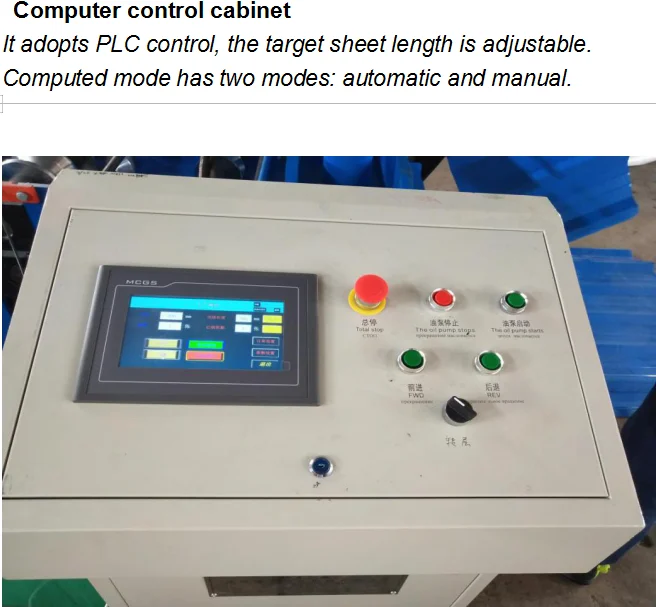

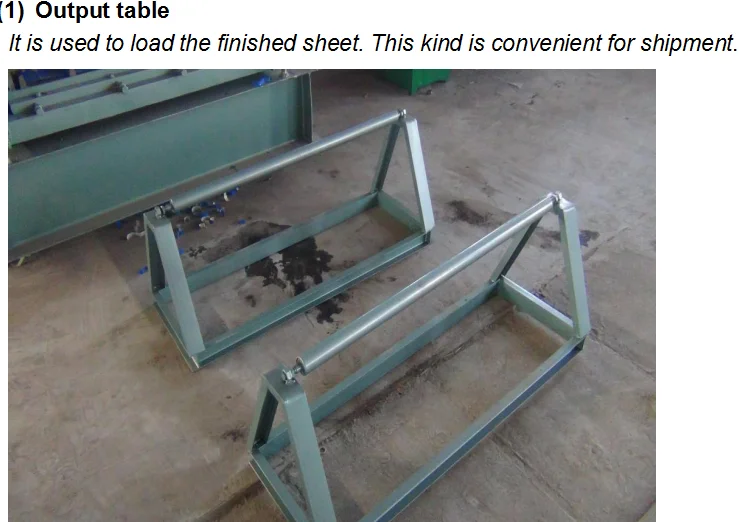

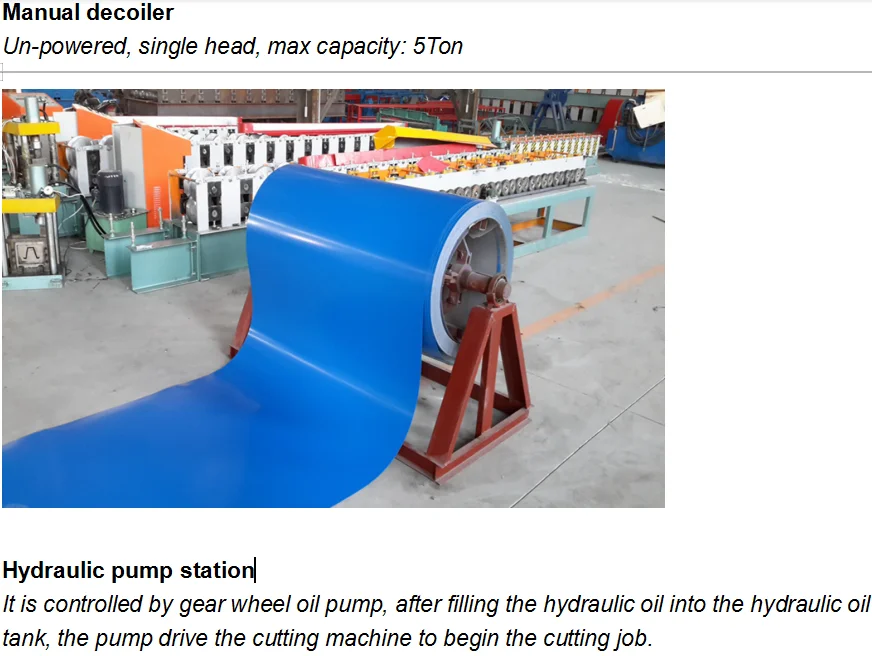

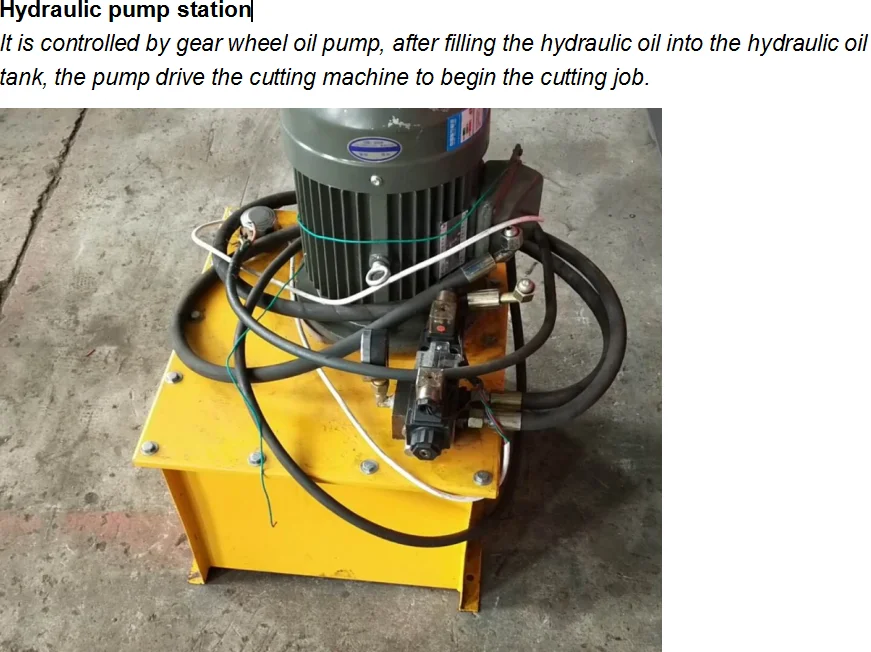

QQ20190301134822.pngQQ20190301134907.pngQQ20190301134952 - .pngQQ20190301135010.png



 - .JPG



 Packaging

1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

.png

1. should be strictly in accordance with the requirements of the operating instructions to operate on the ban did not use machines or novice direct induction operation.
2. Each boot time to regularly check the adequacy of lubricating oil, check the oil if there is deterioration of the situation.
3. Color tile press equipment should be kept clean, regular color steel roll forming machine for dust protection.
4. Check the color steel tile press of a variety of connectors or fasteners are loose or dropped off, problems to deal with in a timely manner.
5. Regularly check the repair switch, insurance, handle, to ensure its reliable operation.
6. strict rules for safe working practices standard operating personnel, regular training basics of color steel tile press and prevent personal safety.
7. After you are finished using machinery to turn off the power and other facilities, there is electricity in the place you want to join the safety alert symbol.
8. A good waterproof security measures, strict rules regulate the behavior of the plant operator.product line.JPG
