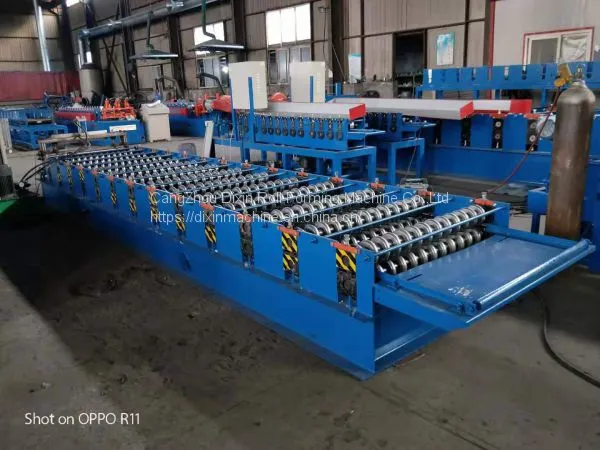

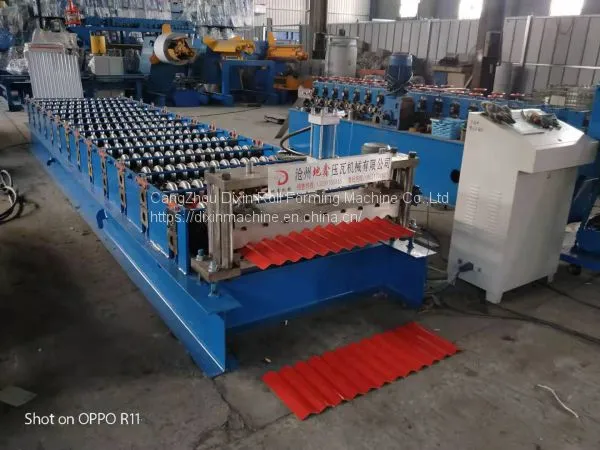

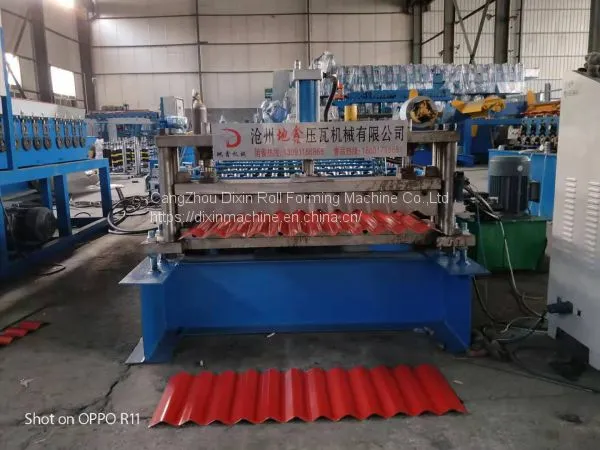

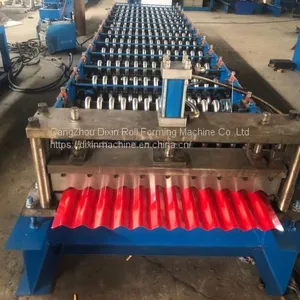

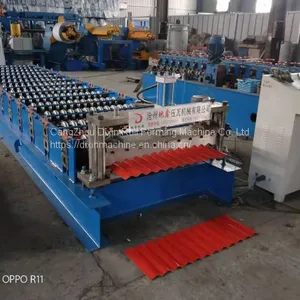

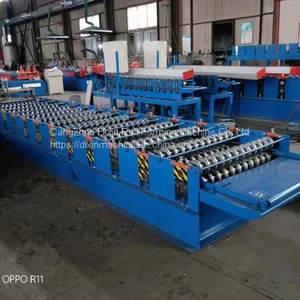

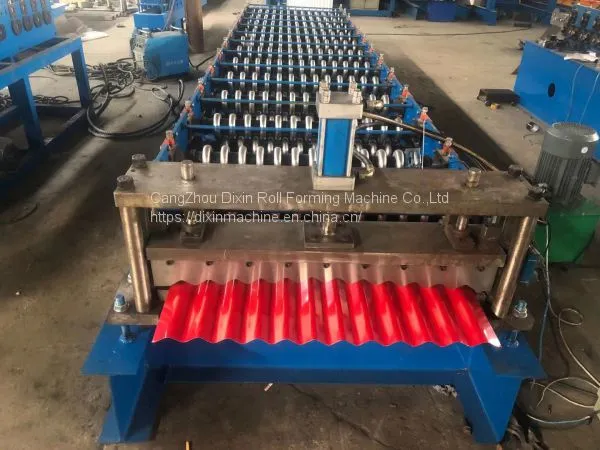

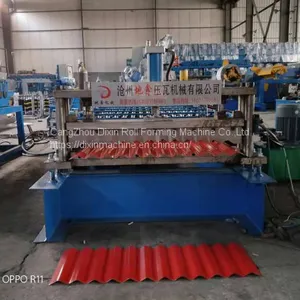

Roofing tile corrugated sheet roll forming machine price for factory price
High speed electric motor cutting wave panel corrugated roll forming machine from Smartech Machinery is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Technical parameter
No. |
main parameter of CORRUGATED roll forming machine |
|
1 |
Suitable to process |
Color steel plate, galvanized sheet, aluminum coils and etc. |
2 |
Width of the feeding material |
914mm |
3 |
Roller station |
18 rows |
4 |
Thickness of feeding material |
0.3-0.8mm |
5 |
Power |
4+3kw |
7 |
Productivity |
8-12m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Weight |
About 4.5 T |
| 10 | Size | 8500*1300*1400mm |
11 |
Voltage |
380V 50Hz 3phases |
12 |
Rolling material |
Carbon Steel 45# |
13 |
Material of the cutting plate |
Cr12 |
| 14 | Wall thickness of main forming machine | 14mm steel plate |
| 15 | Main forming machine body | 300 mm H steel |
16 |
Control system |
PLC control |
Can be customized according to customer requirements or drawings | ||
This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
Working flow
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated.
Name: Pump
Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:3kw
Hydraulic oil :40#
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
