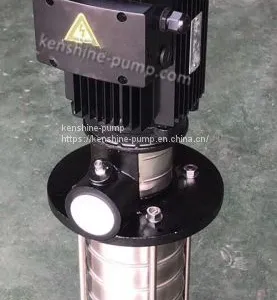

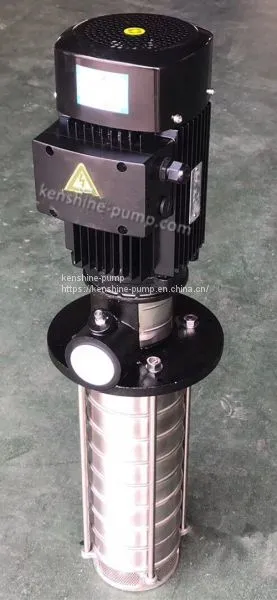

CDLKF is a self-priming vertical multi-stage centrifugal submerged pump is equipped with standard motor. The motor shaft is directly connected to the pump shaft through the coupling of the pump head. The pump can be equipped with intelligent protector according to the needs to effectively protect the dry rotation, phase loss and overload of the pump. In order to meet the installation depth of the tank or container, the cavity can be installed to change the length of the pump itself.
Application
CDLKF is used as the conveying machine of cooling fluid, lubricating fluid, condensed water conveying, industrial cleaning equipment and other occasions. CDLKF pump is for immersion submerged pump with different temperature, flow and pressure range. CDLK pump is suitable for non-corrosive liquid and CDLKF is suitable for mildly corrosive liquid.
CDLK,CDLKF pump is used for electric spark, lathe, grinder, machining center, cooling device, industrial cleaning equipment, filtration system, etc.
The motor:
The motor is a fully enclosed, air-cooled bipolar standard motor.
Protection grade: IP55
Insulation grade: F
Standard voltage: 50HZ:Single phase, 220-230/240v
3 Phase/200/346 v
3 phase/220-240/380-415v
3 Phase/220-225/380-440V
Motors of other voltages are available upon request.
Single phase voltage from 0.37-2.2kw available.
Operating conditions
A thin, clean, non-explosive liquid, without solids and fibers, capable of conveying water and cooling water solutions and cutting lubricants.
Liquid temperature: normal temperature type -15℃~+70℃ hot water type +70℃~+120℃
| Model | Head | Flow | Motor power | Speed |
| （m） | （m3/h） | （KW） | （r/min） | |
| CDLK1-20/2 | 11.5 | 1 | 0.37 | 2900 |
| CDLK1-30/3 | 17 | 1 | 0.37 | 2900 |
| CDLK1-40/4 | 22.5 | 1 | 0.37 | 2900 |
| CDLK1-50/5 | 28 | 1 | 0.37 | 2900 |
| CDLK1-60/6 | 33.5 | 1 | 0.37 | 2900 |
| CDLK1-70/7 | 39 | 1 | 0.37 | 2900 |
| CDLK1-80/8 | 45 | 1 | 0.55 | 2900 |
| CDLK1-90/9 | 51 | 1 | 0.55 | 2900 |
| CDLK1-100/10 | 57 | 1 | 0.55 | 2900 |
| CDLK1-110/11 | 61 | 1 | 0.55 | 2900 |
| CDLK1-120/12 | 67 | 1 | 0.75 | 2900 |
| CDLK1-130/13 | 73 | 1 | 0.75 | 2900 |
| CDLK1-150/15 | 84 | 1 | 0.75 | 2900 |
| CDLK1-170/17 | 95 | 1 | 1.1 | 2900 |
| CDLK1-190/19 | 106 | 1 | 1.1 | 2900 |
| CDLK1-210/21 | 117 | 1 | 1.1 | 2900 |
| CDLK1-230/23 | 128 | 1 | 1.1 | 2900 |
| CDLK1-250/25 | 139 | 1 | 1.5 | 2900 |
| CDLK1-270/27 | 150 | 1 | 1.5 | 2900 |
| CDLK1-300/30 | 166 | 1 | 1.5 | 2900 |
| CDLK1-330/33 | 183 | 1 | 2.2 | 2900 |
| CDLK1-360/36 | 200 | 1 | 2.2 | 2900 |
| CDLK2-20/2 | 15 | 2 | 0.37 | 2900 |
| CDLK2-30/3 | 22 | 2 | 0.37 | 2900 |
| CDLK2-40/4 | 30 | 2 | 0.55 | 2900 |
| CDLK2-50/5 | 37 | 2 | 0.55 | 2900 |
| CDLK2-60/6 | 45 | 2 | 0.75 | 2900 |
| CDLK2-70/7 | 52 | 2 | 0.75 | 2900 |
| CDLK2-90/9 | 67 | 2 | 1.1 | 2900 |
| CDLK2-110/11 | 82 | 2 | 1.1 | 2900 |
| CDLK2-130/13 | 98 | 2 | 1.5 | 2900 |
| CDLK2-150/15 | 112 | 2 | 1.5 | 2900 |
| CDLK2-180/18 | 136 | 2 | 2.2 | 2900 |
| CDLK2-220/22 | 165 | 2 | 2.2 | 2900 |
| CDLK2-260/26 | 198 | 2 | 3 | 2900 |
| CDLK3-20/2 | 9 | 3 | 0.37 | 2900 |
| CDLK3-30/3 | 14 | 3 | 0.37 | 2900 |
| CDLK3-40/4 | 19 | 3 | 0.37 | 2900 |
| CDLK3-50/5 | 23 | 3 | 0.37 | 2900 |
| CDLK3-60/6 | 28 | 3 | 0.55 | 2900 |
| CDLK3-70/7 | 32 | 3 | 0.55 | 2900 |
| CDLK3-80/8 | 37 | 3 | 0.75 | 2900 |
| CDLK3-90/9 | 42 | 3 | 0.75 | 2900 |
| CDLK3-100/10 | 47 | 3 | 0.75 | 2900 |
| CDLK3-110/11 | 51 | 3 | 1.1 | 2900 |
| CDLK3-120/12 | 55 | 3 | 1.1 | 2900 |
| CDLK3-130/13 | 60 | 3 | 1.1 | 2900 |
| CDLK3-150/15 | 69 | 3 | 1.1 | 2900 |
| CDLK3-170/17 | 79 | 3 | 1.5 | 2900 |
| CDLK3-190/19 | 88 | 3 | 1.5 | 2900 |
| CDLK3-210/21 | 98 | 3 | 2.2 | 2900 |
| CDLK3-230/23 | 107 | 3 | 2.2 | 2900 |
| CDLK3-250/25 | 116 | 3 | 2.2 | 2900 |
| CDLK3-270/27 | 124 | 3 | 2.2 | 2900 |
| CDLK3-290/29 | 133 | 3 | 2.2 | 2900 |
| CDLK3-310/31 | 142 | 3 | 3 | 2900 |
| CDLK3-330/33 | 151 | 3 | 3 | 2900 |
| CDLK3-360/36 | 168 | 3 | 3 | 2900 |
| CDLK4-20/2 | 15 | 4 | 0.37 | 2900 |
| CDLK4-30/3 | 24 | 4 | 0.55 | 2900 |
| CDLK4-40/4 | 32 | 4 | 0.75 | 2900 |
| CDLK4-50/5 | 40 | 4 | 1.1 | 2900 |
| CDLK4-60/6 | 48 | 4 | 1.1 | 2900 |
| CDLK4-70/7 | 56 | 4 | 1.5 | 2900 |
| CDLK4-80/8 | 64 | 4 | 1.5 | 2900 |
| CDLK4-100/10 | 81 | 4 | 2.2 | 2900 |
| CDLK4-120/12 | 95 | 4 | 2.2 | 2900 |
| CDLK4-140/14 | 112 | 4 | 3 | 2900 |
| CDLK4-160/16 | 129 | 4 | 3 | 2900 |
| CDLK4-190/19 | 153 | 4 | 4 | 2900 |
| CDLK4-220/22 | 178 | 4 | 4 | 2900 |
| CDLK8-20/2 | 18 | 8 | 0.75 | 2900 |
| CDLK8-30/3 | 27 | 8 | 1.1 | 2900 |
| CDLK8-40/4 | 36 | 8 | 1.5 | 2900 |
| CDLK8-50/5 | 45 | 8 | 2.2 | 2900 |
| CDLK8-60/6 | 54 | 8 | 2.2 | 2900 |
| CDLK8-80/8 | 73 | 8 | 3 | 2900 |
| CDLK8-100/10 | 92 | 8 | 4 | 2900 |
| CDLK8-120/12 | 111 | 8 | 4 | 2900 |
| CDLK8-140/14 | 130 | 8 | 5.5 | 2900 |
| CDLK8-160/16 | 148 | 8 | 5.5 | 2900 |
| CDLK8-180/18 | 167 | 8 | 7.5 | 2900 |
| CDLK8-200/20 | 186 | 8 | 7.5 | 2900 |
| CDLK16-20/2 | 22 | 16 | 2.2 | 2900 |
| CDLK16-30/3 | 34 | 16 | 3 | 2900 |
| CDLK16-40/4 | 46 | 16 | 4 | 2900 |
| CDLK16-50/5 | 58 | 16 | 5.5 | 2900 |
| CDLK16-60/6 | 70 | 16 | 5.5 | 2900 |
| CDLK16-70/7 | 82 | 16 | 7.5 | 2900 |
| CDLK16-80/8 | 94 | 16 | 7.5 | 2900 |
| CDLK16-100/10 | 118 | 16 | 11 | 2900 |
| CDLK16-120/12 | 141 | 16 | 11 | 2900 |
| CDLK16-140/14 | 166 | 16 | 15 | 2900 |
| CDLK16-160/16 | 189 | 16 | 15 | 2900 |
