Home > Construction & Decoration > Door & Window Hardware > Door Opener > Spring Return Swing Door DSW-3/3A

Spring Return Swing Door DSW-3/3A

Name: Spring Return Swing Door DSW-3/3A
Brand: YOMO
SKU: 161344631
Availability: InStock

Grandsky Industrial Co., Ltd

Spring Return Swing Door DSW-3/3A thumbnail-1

Spring Return Swing Door DSW-3/3A thumbnail-2

Spring Return Swing Door DSW-3/3A thumbnail-3

Spring Return Swing Door DSW-3/3A thumbnail-4

Spring Return Swing Door DSW-3/3A thumbnail-5

Spring Return Swing Door DSW-3/3A photo-1

Spring Return Swing Door DSW-3/3A photo-2

Spring Return Swing Door DSW-3/3A photo-3

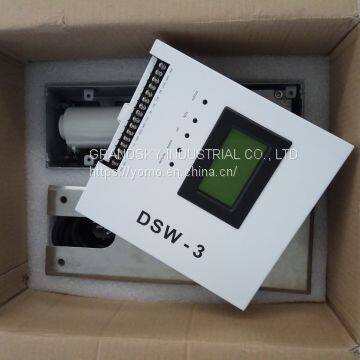

Spring Return Swing Door DSW-3/3A photo-4

Spring Return Swing Door DSW-3/3A photo-5

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

YOMO

Place of Origin:

China

Model Number:

DSW-3

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

3 days

Product Details
Company Profile
Contact Us

Brand Name YOMO

Place of Origin China

Model Number DSW-3

TECHNICAL DATA

Maximum door weight: 150kg

Maximum door width: 1200mm

Maximum torque: 165Nm

Unit weight: 5.5kg

Installation method: ground embedding

Running noise:<60dB

Electric lock output: DC12V normally open / normally closed contact

Opening and closing time: 6-12S

Opening range: 86°- 95°

Power supply voltage: AC220V±10% 50/60Hz

Rated power: 55W

Standby power:<2W

Working temperature: -20 ~ +50°C

Protection level: Ip68

Unit size: 330 X116 X100 (mm)

Control box size: 215X205X60 (mm)

Features

The controller has a full Chinese debugging interface, which is easy to operate and is equipped with various function ports such as electric lock and backup battery.

The casing of the machine is injection molded by BMC; all DC motors are sealed to be super waterproof, fireproof and corrosion resistant.

The maximum load is 150KG, the optional DSW-3 unit can be opened 90 degrees or the DSW-3A unit can open the door 180 degrees (automatically sensing the passing direction of pedestrians, and opening the door with the pedestrian walking direction).

It is cold-resistant and high-temperature resistant and can work in - 20°C-55°C environment.

Small size, waterproof, heavy load, easy construction, etc., can be used indoors and outdoors.
