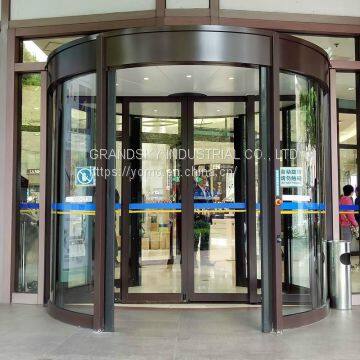

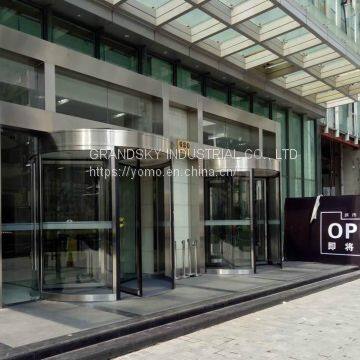

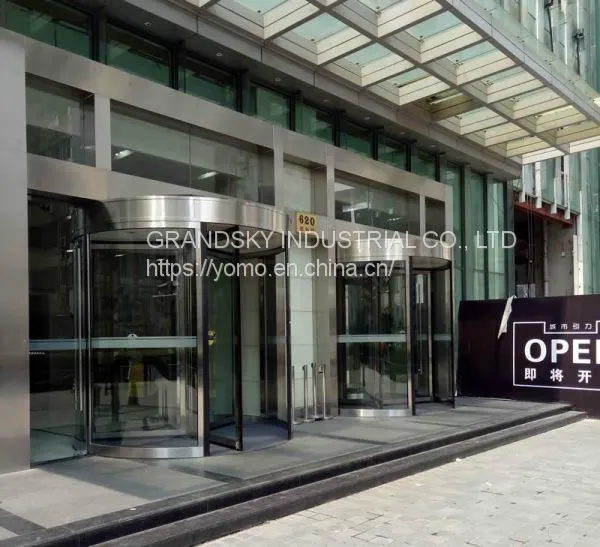

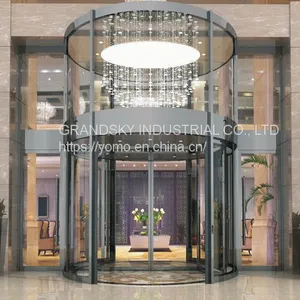

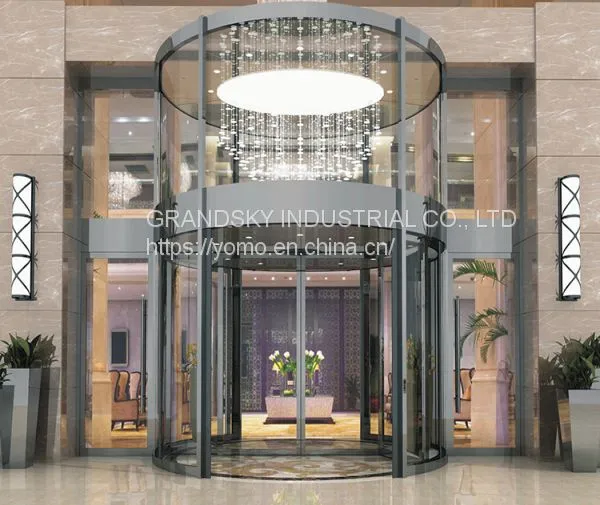

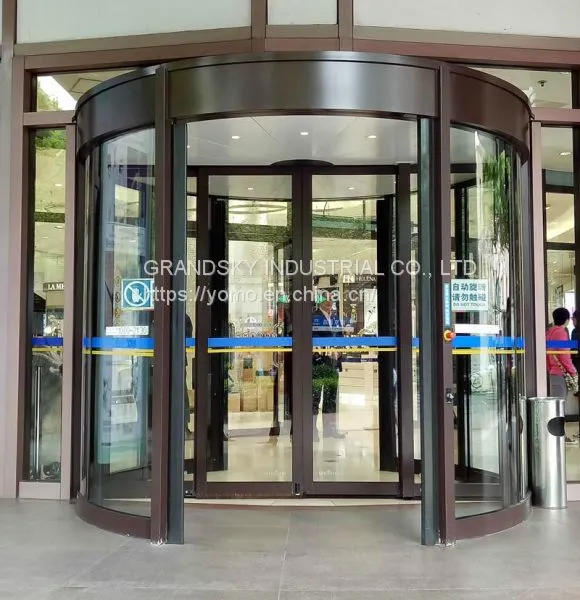

Help CenterTWO WING AUTO - REVOLVING DOOR
Related Products
FUNCTION INTRODUCTION |
| Rotation checking function, emergency stop function, windbreak and dustproof function, central control function of fire protection, function of automatically open the middle sliding door, programmable logic control functions, trouble self-checking function, night lock function, access control function, frequency conversion function, speed adjustment, safety prevent bump or pinching , UPS function of emergency power supply (optional), switching function of door leaf stop position, waiting function for passing through slowly , reverse function of defend pinching, door leaf position setting. |
TECHNICAL DATA |
 |
SENSORS |
|
Door operation sensors(concealing)(infra-red)----4pcs Anti-pinching sensors(concealing)(infra-red reflection)----2pcs Anti-pinching sensors(concealing)(infra-red reflection)----2pcs Anti-pinching sensors(extrusion mode)----4sets Anti-collision sensors(infra-red reflection)----4pairs Buffer rubber----2sets Slow speed button----2sets |
OPTIONAL |
|
1.Surface treatment: stainless steel surface(mirror, hairline, titanium alloy), fluocarbon coating spraying, baking varnish. 2.Central fire protection system 3.Access control system |
TECHNICAL DATA |
|
Supply power: AC 220V 50/60Hz Power consumption: motor 200-600W, light 500W Intelligent computer control Multilevel control, frequency control of motor speed Sensor: rubber and infra-red anti-pinching sensor Safety device:16A or 2×10A |
STANDARD CONFIGURATION |
|
1.Door Body Special aluminum door profile. 2.Glass Door leaf and exhibition box are 6/8mm transparent tempered glasses, curved wall is 10mm tempered glass (5+5mm arc safety laminated glass). 3.Drive device Two sets AC220V, 50/60Hz,0.2-0.6KW. 4.Anti-interference Function of preventing electromagnetic interference. 5.Central control computer Programmable logic control system, revolving mode or sliding mode can be set. 6. Revolving speed control The variable-frequency speed adjustment system ensures the door start, work and stop smoothly. 7. UPS control box When electricity is failed, UPS will start the middle sliding door. 8. Sensor Infra-red (radar) motion sensors, vertical rubber sensor defend pinching at entrances, anti-collision sensor at the bottom of door leaf, infra-red direct measure sensor defend pinching. 9. Emergency stop button Installed on the column of entrance right side, use for e mergency situation 10. Button for disabled Installed on the column of entrance right side, use for disabled people pass slowly. 11. Electric magnetic lock setting It can automatically lock the door. 12. Status and fault display Display correct code or fault code of revolving operations. 13. Central fire protection control device The middle induction sliding door is connected with the fire alarm in the building , it will open quickly in an emergency and become an evacuation access. 14. Door leaf stop positions setting (optional) Winter stop position, summer stop position, stop position of middle automatic sliding door, hold-open position, stop position of slow-down waiting, etc. 15. Reverse function of anti-pinching. |
