PANIC AUTOMATIC DOOR

Name: PANIC AUTOMATIC DOOR
Brand: YOMO
SKU: 159352033
Availability: InStock

US$ 100 - 1000 MOQ: 1 Set

Key Specifications

Brand Name:

YOMO

Place of Origin:

China

Position:

Commercial

Grandsky Industrial Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

2 days

Brand Name YOMO

Place of Origin China

Position Commercial

Surface Finishing Finished

Type Security Doors

Door Material Aluminum Alloy

Open Style Automatic

FUNCTION INTRODUCTION

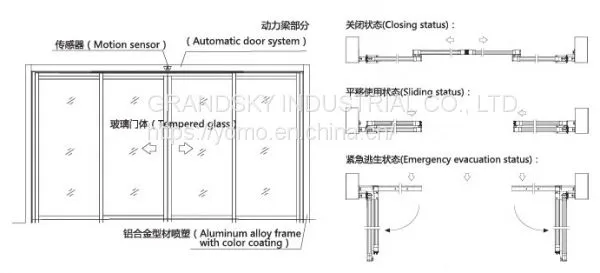

The main function of this system is that in special situation (such as a fire), sliding automatic door leaves can be opened 90° to provide a larger opening width for pedestrians or cargo to pass through. As an emergency evacuation exit, the system has function of detecting the door leaf, signal will be transmitted to the microcomputer controller to ensure the safe usage of the automatic door. Microcomputer controller has fully function interfaces for five-range key switch, backup battery, emergency-stop switch and fire linkage, etc. The door body is hard and firm, parts are precise and reliable. The door can withstand repeated swing opening,and has the the ability to reset, which ensure the normal operation of the automatic door.

TECHNICAL DATA

Type：single-leaf/double-leaf clean opening width：W=800mm-1200mm DW=800mm-2500mm door leaf weight：1×150kg,2×120kg clean pass height：2500mm opening speed：200-500mm/s（adjustable） closing speed：300-500mm/s（adjustable） hold-open time：2~20s(adjustable) manual force：＜100N supply power voltage：220V±10% power consumption：100W

APPLICATION SCOPE

It is suitable for entrance which has safety requirements and needs bigger opening space, Such as shopping mall, hospital, hotel, car showroom, airport and railway station, etc.
