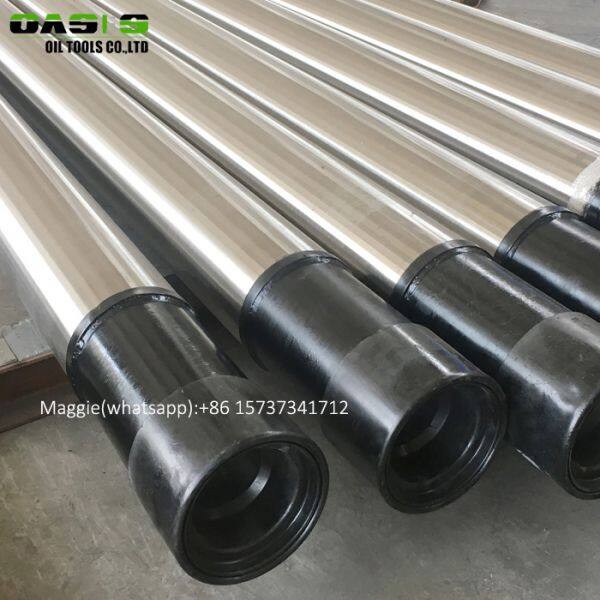

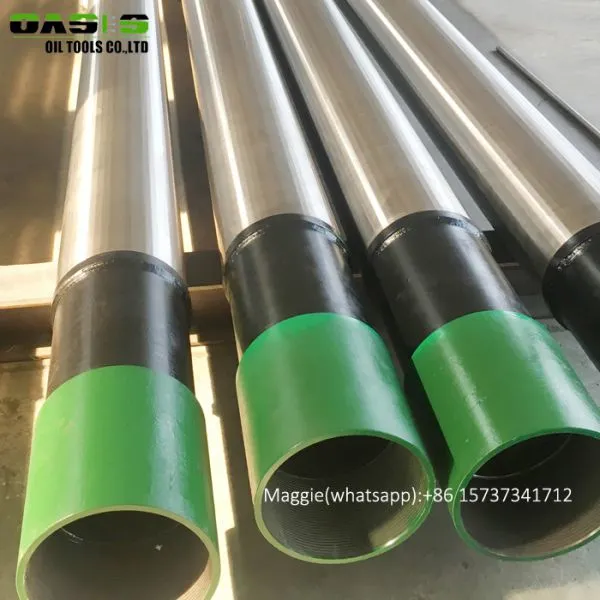

Pipe base well screen with wire wrapped johnson screen pipe jacket:
Pipe based sand control screen is made of perforated base pipe and wedge wire screen jacket. With the casing inside supporting the screen jacket, it enhance hugely the and high tensile strength loads. It is mainly used in deep wells with high pressure and high traction value. So far it Is the most advanced sand control technology under deep well.
For both the base pipe and screen jacket, the specification can be customrized according to requirment.
Slot size: 0.05,0.1,0.15,0.2,0.25,0.3,0.5 to 20mm also achieved upon request.
Material: Low-carbon steel,medium carbon steel,stainless steel (304,304L,316,316L,duplex stainless steel,2205,2207)
Length: 30mm to 6000mm
Outer Diameter: 73mm to 600mm
Wedge Wire Specifications:0.75X1.5mm,1X2mm,1.5X2.5mm,2X3mm,2.3X4mm,3X5mm,3.5X6.5mm
End connection: Plain beveled ends, flanged or threaded couplings
Specfications:
COMPANY:
Oasis oil tools co.,ltd has been awarded many honors and certifications such as patents of utility model authorized certificate, quality management system certificate, export licence and pre-export licenses. We can design all types of letters of credit according to your requirement. Oasis oil tools co.,ltd has developed into a famous and leading manufacturer which integrate the research and development, design, manufacture and sell. Welcome to visit our company.
CONTACT:
Welcome to contact with us for more details:
Pipe based sand control screen:
