Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > High Quality Factory Price SMA Connector

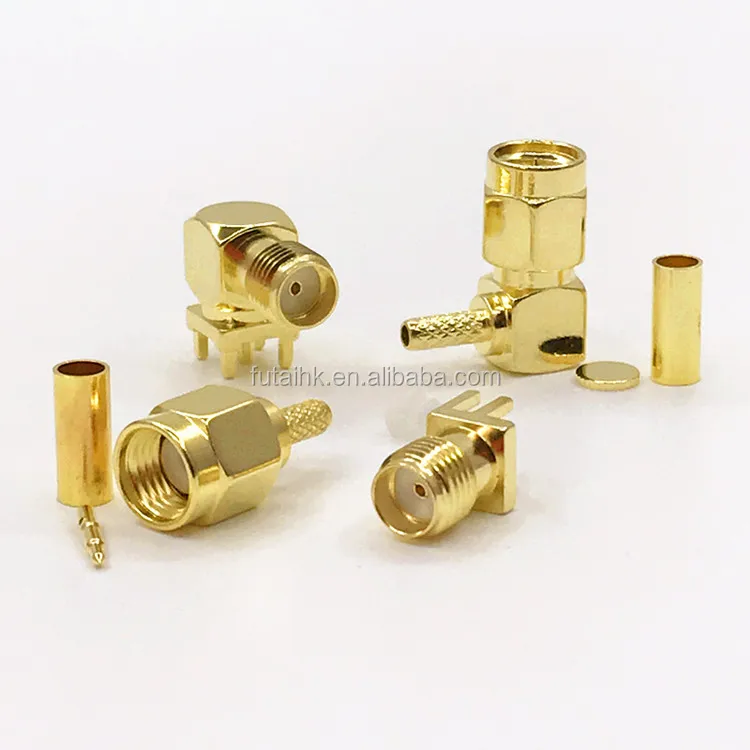

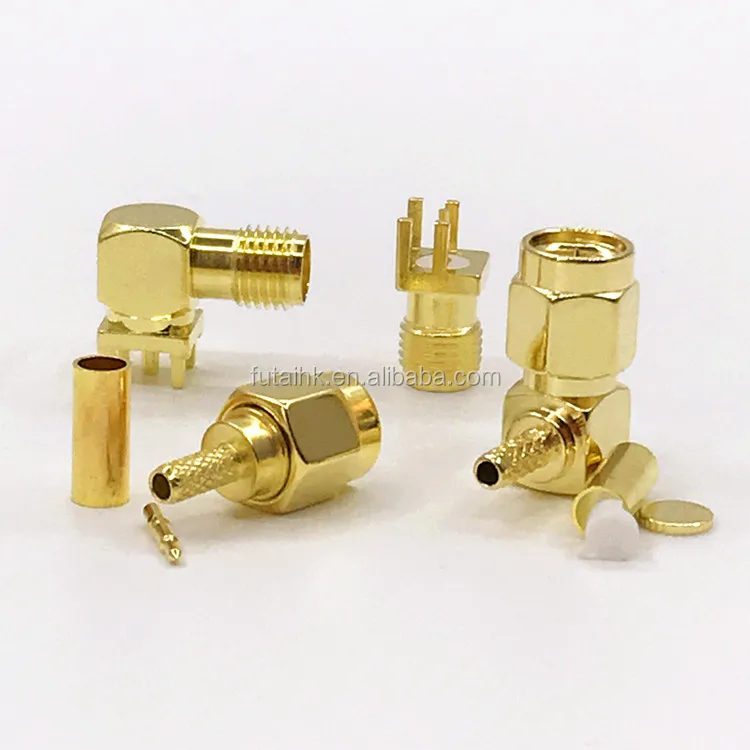

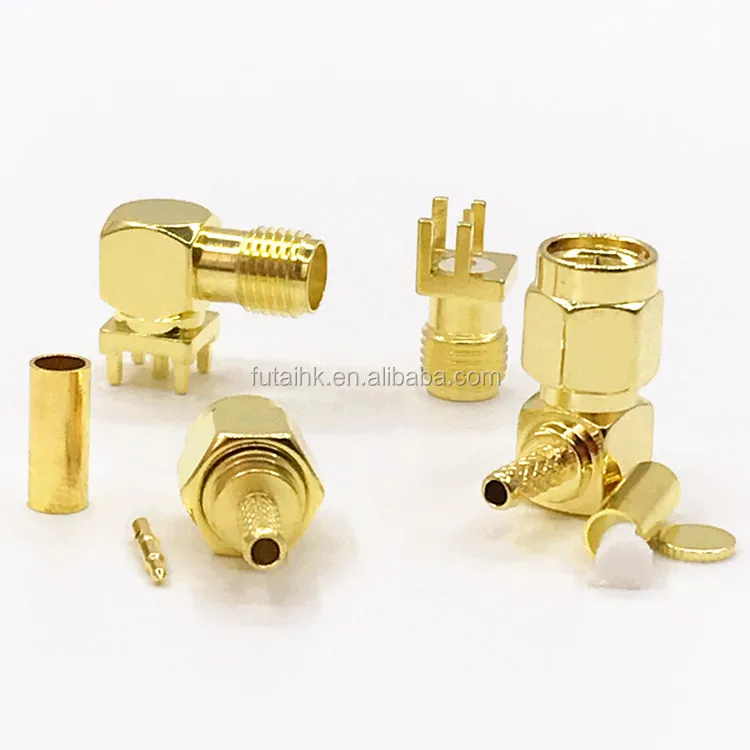

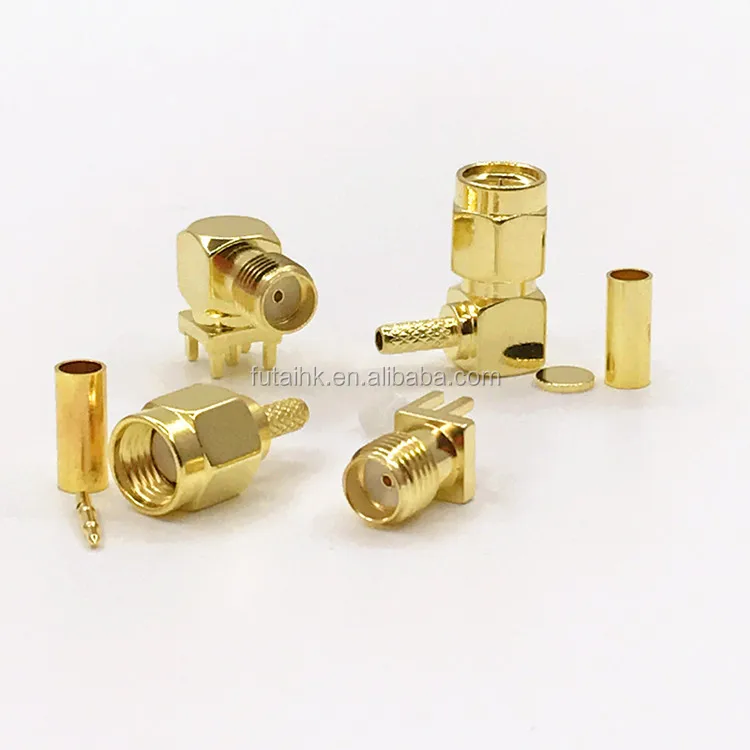

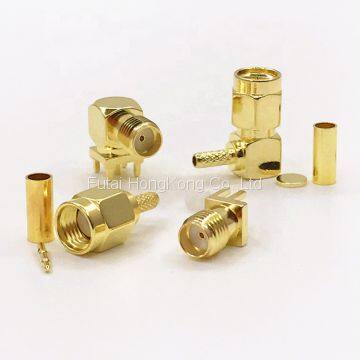

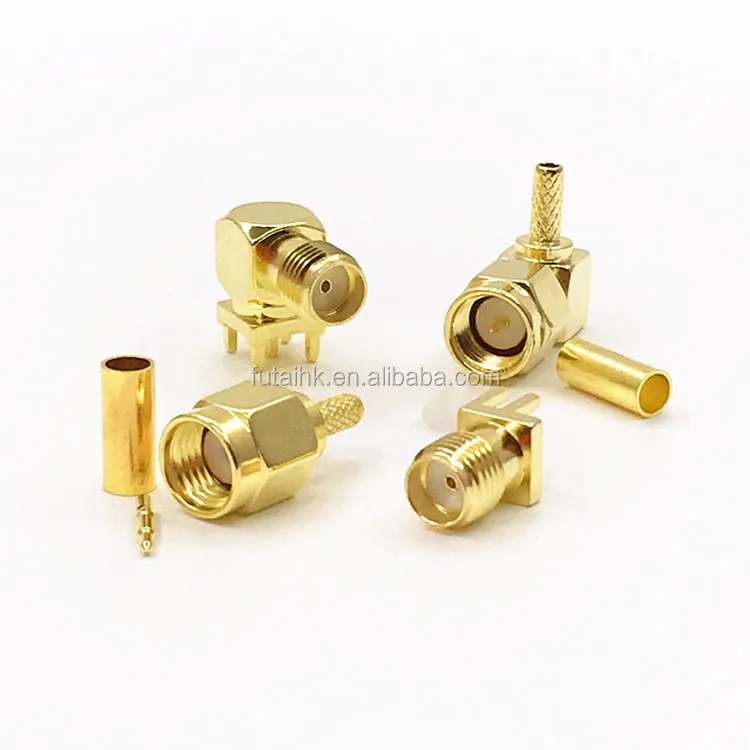

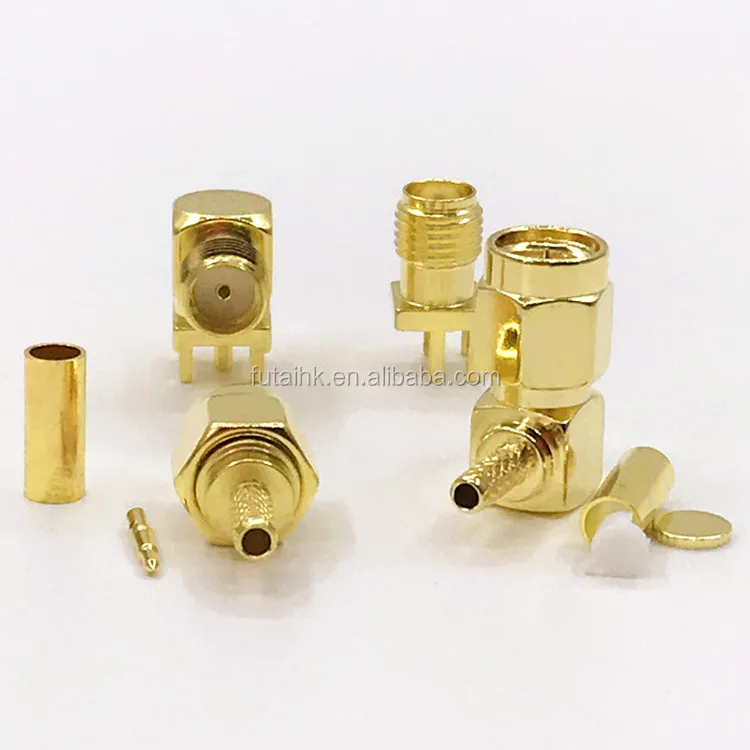

High Quality Factory Price SMA Connector
US$ 0.25 - 0.35
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
FUTAI
Place of Origin:
China
Model Number:
FT-Connector-125SMA
Payment & Shipping
Payment Methods:
Port of Shipment:
foshan
Delivery Detail:
7 days
Related Products
-
ROHS SMA PCB Female Right Angle RF ConnectorUS$ 0.38 - 0.4MOQ: 100 Pieces -
Hot Sale FT-Adapter-SMA-JK-01 SMA Right Angle AdapterUS$ 0.56 - 0.70MOQ: 100 Pieces
-
SMA Female PCB ConnectorUS$ 0.32 - 0.4MOQ: 100 Pieces
-
SMA Female Right Angle PCB RF Coaxial ConnectorUS$ 0.4 - 0.5MOQ: 100 Pieces
-
RF Coaxial SMA Antenna ConnectorUS$ 0.4 - 0.5MOQ: 100 Pieces
Brand Name
FUTAI
Place of Origin
China
Model Number
FT-Connector-125SMA
Type
SMA
Application
RF
Gender
Female
Specifications:
Model |
FT-Connector-125SMA |
|
Major Technical Characteristics | ||
Type |
SMA-C-KY1.5-125 |
|
Impedance |
50Ω |
|
Frequency Range |
DC~4GHz |
|
Center conductor retention force |
≥0.28 N |
|
Insertion Loss |
0.30dB/1.5GHz |
|
Disengagement force |
8-63N |
|
Voltage Standing Wave Ratio |
Straight ≤1.35/3GHz |
|
Right angle ≤1.45/1GHz | ||
Durability(mating) |
≥500(cycles) |
|
Cable |
RG174,RG316 |
|
Material & Plating | ||
Body |
Brass |
Gold plated |
Pin contact |
Brass |
Gold plated |
Socket contact |
Beryllium-copper Customized) |
Gold plated |
Resilient contact |
Beryllium-copper |
Gold plated |
Insulator |
PTFE |
|
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
O-ring sealing |
6146 silicone rubber |
|
