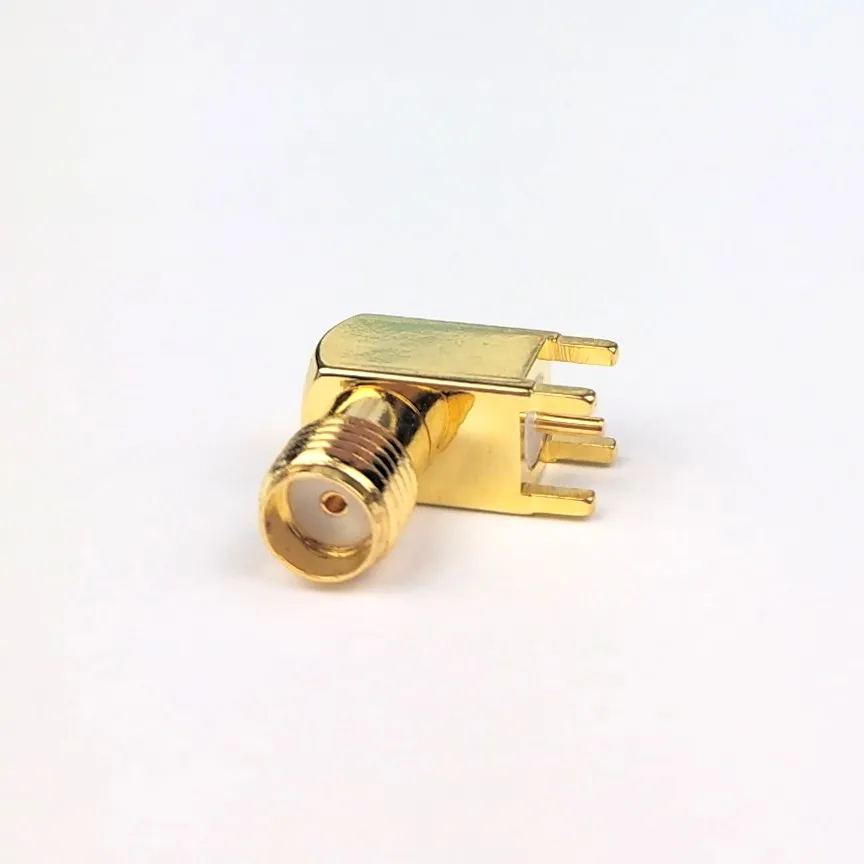

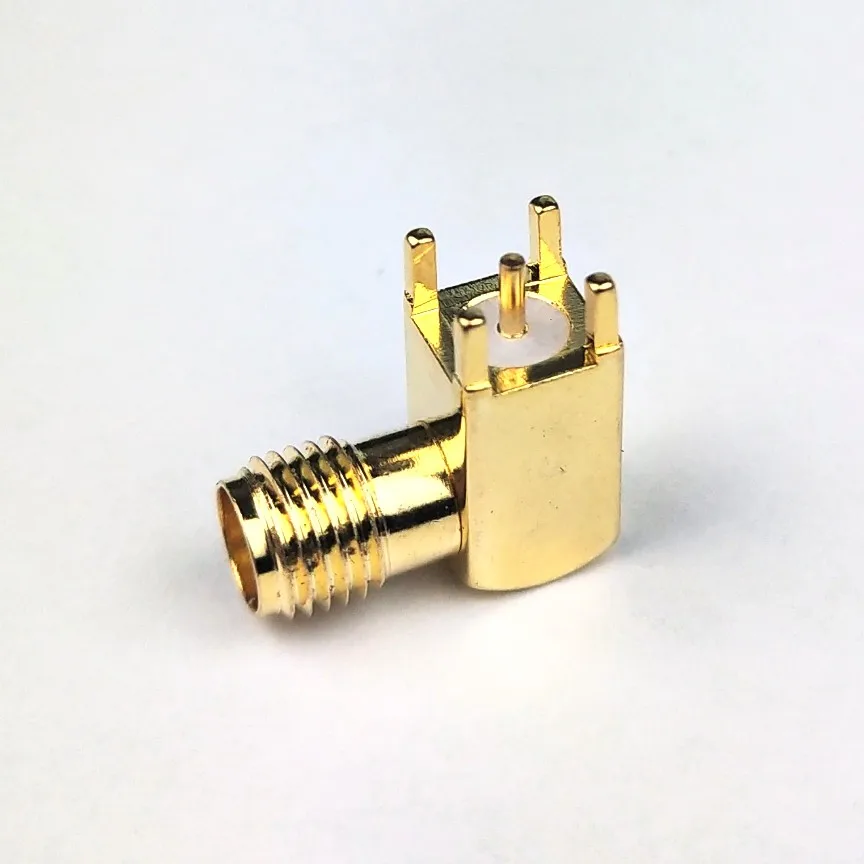

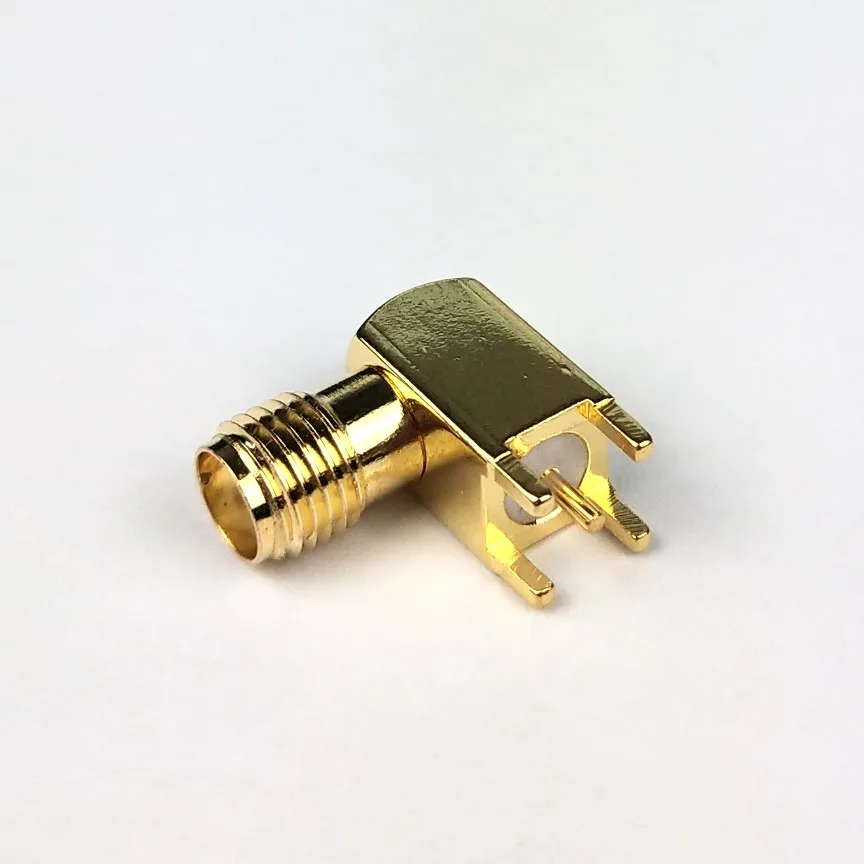

SMA Right Angle PCB RF Coaxial Female Connector
Specifications:
Model |
FT-Connector-117 |
|
Major Technical Characteristics | ||
Type |
SMA-KWE-117 |
|
Impedance |
50Ω |
|
Frequency Range |
DC~12.4GHz(Semi-Rigid Cable DC-18GHz) |
|
Center conductor retention force |
≥0.28 N |
|
Insertion Loss |
≤0.15dB/6GHz |
|
Voltage Standing Wave Ratio |
Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f |
|
|
Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f | ||
Durability(mating) |
≥500(cycles) |
|
Cable |
PCB |
|
Material & Plating | ||
Body |
Brass |
Gold plated |
Pin contact |
Brass |
Gold plated |
Socket contact |
Beryllium-copper Customized) |
Gold plated |
Resilient contact |
Beryllium-copper |
Gold plated |
Insulator |
PTFE |
|
Crimp ferrule |
Copper alloy |
Nickel or gold plated |
O-ring sealing |
6146 silicone rubber |
|
We can provide other materials and plating specifications according to customer's requirements.
