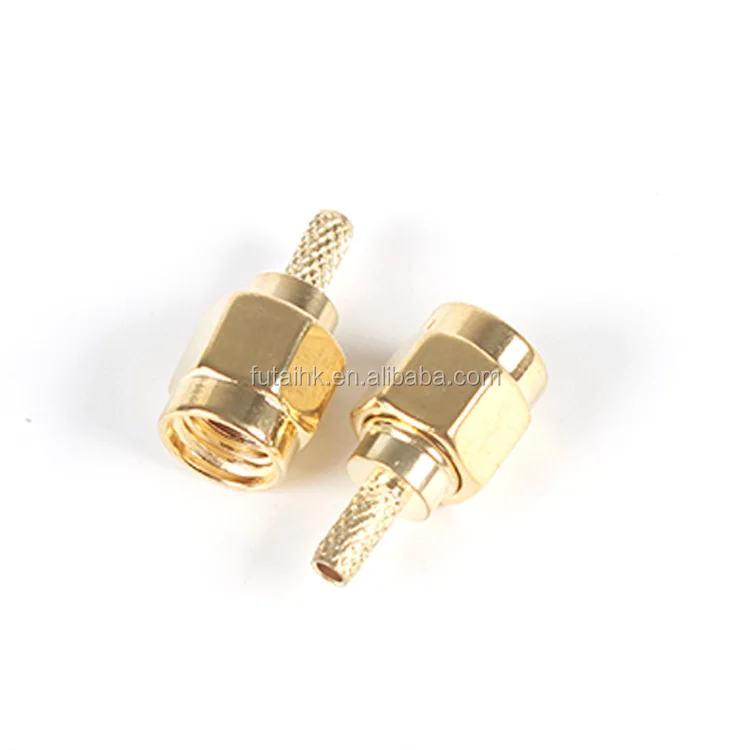

High Quality SMA RF Male Connector
- Foshan
- T/T L/C PayPal Other
- 7 days
You May Like
Product Details
| Brand Name | FUTAI | Place of Origin | China | |
| Model Number | FT-SMA-JY1.5-G01 | Type | SMA | |
| Application | RF | Gender | Male |
Product Description
High Quality SMA RF Male Connector
Specifications:
Model | FT-SMA-KY1.5-G01 | |
Major Technical Characteristics | ||
Type | SMA-KY1.5-G01 | |
Impedance | 50Ω | |
Frequency Range | DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
Center conductor retention force | ≥0.28 N | |
Insertion Loss | ≤0.15dB/6GHz | |
Voltage Standing Wave Ratio | Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f | |
Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f | ||
Durability(mating) | ≥500(cycles) | |
Cable | RG174 Cable | |
Material & Plating | ||
Body | Brass | Gold plated |
Pin contact | Brass | Gold plated |
Socket contact | Beryllium-copper Customized) | Gold plated |
Resilient contact | Beryllium-copper | Gold plated |
Insulator | PTFE | |
Crimp ferrule | Copper alloy | Nickel or gold plated |
O-ring sealing | 6146 silicone rubber | |
We can provide other materials and plating specifications according to customer's requirements.
Pictures
About Us
Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC ,N, and so on).
Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
Packing & Delivery
Exhibition
FAQ
Q1:Where can i get the product and price information?
A1:You can send us inquiry e-mail or directly contact us,when we receive your e-mail we’ll contact you.
Q2:How long Can i get the sample?
A2:That is depends on your products, within 3-7 days is required generally.
Q3:How to ship the goods?
A3:We ship the products by courier company or if you have DHL,UPS,FedEx account,we can use it to ship sample.
Q4:What shall we do if we do not have drawings?
A4:Please send your sample to our factory,then we can copy or provide you better solutions, please send us pictures or drafts with dimensions(Length,Hight,Width), CAD or 3D file will be made for you if placed order.
Q5:Will my drawings be safe after sending to you?
A5:Yes, we will keep them well and not release to the third party without your permission.
Q6:How do you handle after-sales service?
A6:If you have workers who know how to repair,please consult our technical support. If there is no engineer, please return the goods,we can repair them for you.
Q7:What kinds of information you need for quote?
A7:Kindly please provide the product drawing in PDF,and will be better you can provide in step or IGSMOQ.
