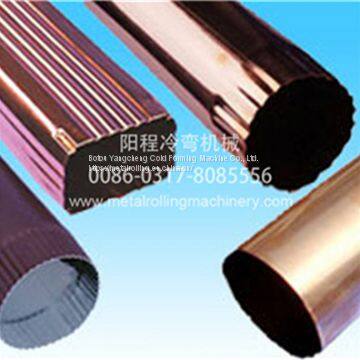

Downspout Roll Forming Machine Taking with Elbow Machine

Downspout Roll Forming Machine Taking with Elbow Machine

Square Downpipe Roll Forming Machine

We also can design the machine strictly according to above profile drawing.

SURFACE TREATMENT

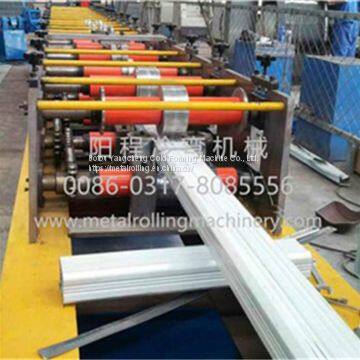

1). Downspout forming machine mainly consists of decoiler, roll forming system, cutting system, hydraulic system, control system, and product receiving table.

2). Elbow machine is the complementary equipment for downspout forming machine. It can make curve for downspout to meet the requirement of practical engineering projects.

3). Work Flow:

decoiler --- coil sheet guiding and feeding device --- roll forming system---cutting system--- product receiving table---elbow machine

4). Main Technical Specification Seaming equipment

Suitable raw material: 0.3-0.6mm colored steel sheet

Main motor power: 4kw+4w for roll forming; 3kw for cutting

Forming speed: 4-10m/min

Roller station: 23 steps

Roller material: Cr12 steel with vacuum heat treatment, hardness reaches 58HRC-60HRC

Active shaft material: 45#steel with high frequency surface treatment and grinding process

Material of cutting die: Cr12MOV

Shaft diameter: Ф60mm

Stand wall plate thickness: 22mm

Cutting system: fly sawing, automatic cut to any length you need

Control system: Taiwan Delta PLC computer control system

Dimension of the machine: About 16000mm*1500mm*1400mm

5) Curving pipe machine

TECHNOLOGY

3t manual decoiler→guiding platform→main roll forming machine→cutting system→2m output table→elbow machine, two 4kw electric-motors, 3kw electric motor for cutting, PLC control system

SALES TERMS

1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USDdayperson.
