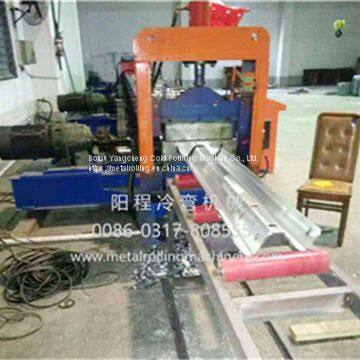

2-Wave Highway Guardrail Roll Forming Machine

2-Wave Highway Guardrail Roll Forming Machine

Highway Guardrail Machine

We also can design the Highway Guardrail Roll Forming Machine as per your required profile drawing

Guardrail Roll Forming Machine SURFACE TREATMENT

1) Processing material: steel strip

2) Material thickness: 2.5mm

3) Effective width: 350mm

4) Feeding width: 457mm

5) Main motor power: 18.5kw+18.5kw

6) Diameter of shaft: Ф105mm

7) Roller stations: 16-18 forming steps

8) Roller material: GCr15

9) Shaft material: 45#steel with high frequency surface treatment and grinding process

10) Hydraulic cutting system: 11kw hydraulic station. auto cut to any length you need

11) Cutter material: Cr12 mould steel with quenched treatment at 62--65℃

12) Hydraulic punching system: automatically punch

13) Punching mould material: Cr12 mould steel with quenched treatment at 62--65℃

14) Driving method: GEARBOX

15) Productivity: 4-10m/min

16) Control system: Taiwan Delta PLC computer control with inveter

17) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

TECHNOLOGY

3T manual decoiler→leveling machine(optional)→guiding platform→auto punching system→main roll forming machine→hydraulic cutting system→2.5m output table, two electric motors, hydraulic station with 11kw electric motor, PLC control system

Roll Forming Machine SALES TERMS

1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USDdayperson.
