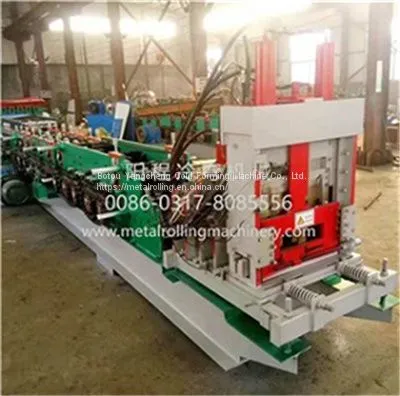

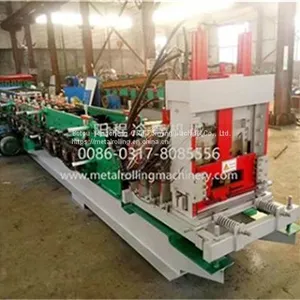

Interchangeable Steel Roll Forming Machine

We also can design the Purlin Roll Forming Machine as per your required profile drawing

SURFACE TREATMENT

A. purling making machine Main Features

Quick size change

CZ 75-300 quick interchangeable roll forming machine, it adopted semi-automatical size adjusting system, operator push buttons, the size adjusting system adjust different desired sizes automatically. Size changeable by 1mm, (such as 75, 76, 77, …80…100, 101, 102, 105,...280, 300) .

Quick C-Z change

CZ interchange through 180 degree rotate, re-tighten the screws. Nothing need to be removed or changed. It is simple and quick.

The whole line adopted automatic controlling system which controls cutting equipment and roll forming processing according to operator's order on the PLC, such as length, quantity etc.

This line roll forming speed can reach 8-15m/min.

B. Technical parameters:

1. Material thickness: 1.2-2.5mm steel strip, feeding width:525mm max.

2. Forming sizes in one machine: c z profiles, fast changing for different sizes as you need

3. Total Motor power: about 22.5kw

4. Main motor power: 15KW

5. Roller groups: 17

6. Quick interchangeable roll forming machine

The roll forming machine composed by drive motor, main frame, roll forming rollers and size adjusting device.

Forming roller drive motor: 15KW, hard gear faced speed reducer and variable speed adjusting, encoder control brake.

Main frame adopts channel steel to construct the girder, and welding a steel plate to strengthen the structure.

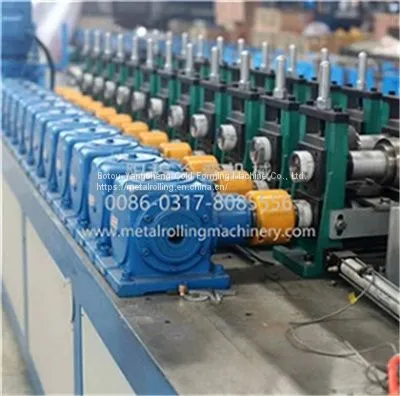

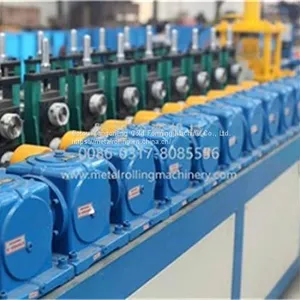

Two side separated forming rollers line for roll forming, 11 groups back rollers of one side were fixed on the machine base, then the fixed part of rollers set a baseline for other three side roller groups. The roller groups adjusted by hand slide leading screws according to different sizes of manufacturing sheet, and it adopted a bevel gear drive between two slide leading screw to synchronize the two side, it has self-lock function as well.

By adjusting eccentricity of the driven rollers can adjust the forming thickness. Thickness variation not required to be adjusted except for big difference.

C&Z interchanging adjustment through 180 degree rotate by hand.

Change two edging rollers to produce 90 degree lip Z purlin.

TECHNOLOGY

CZ 75-300 quick interchangeable roll forming line is comprised of 3T manual decoiler, in-feed guiding device, 7 rollers leveling device, CZ quick interchangeable roll forming machine, punching device, cutting device, auto controlling system, hydraulic system.
