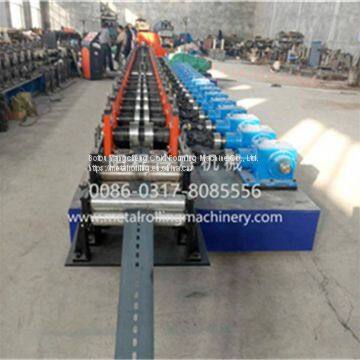

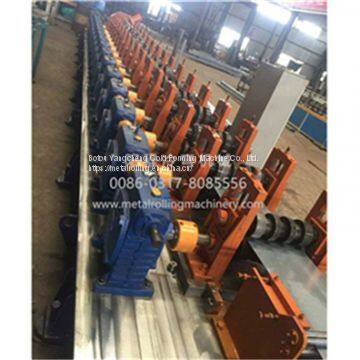

Perforated Solar Bracket Roll Forming Machine

Perforated Solar Bracket Roll Forming Machine

Solar Bracket Roll Forming Machine

Taking with 63-Ton Auto Punching Machine with Auto Feeding System

We will design the Perforated Solar Bracket Roll Forming Machine strictly according to your required sizes.

Solar Bracket Roll Forming Machine QUALITY STANDARDS

1). Main Roll Forming Machine

2). 63-Ton Auto Punching Machine with Auto Feeding System

SPECIFICATIONS

SURFACE TREATMENT

1) Processing material: steel strip, coil tensile strength Q235

2) Material thickness: 2.5-3.0mm

3) Formed sizes: 41x41&41x21

4) Main motor power: 11kw+11kw

5) Pump power: 5.5kw

6) Productivity: 0-20m/min

7) Roller stations: 16-18 steps

8) Roller material: GCr15SiMo steel

9) Active shaft material: 40Cr steel

10) Shaft diameter: Ф70mm

11) Cutting system: mould cutting, automatic cut to any length you need

12) Cutting blade material: SKD11

12) Machine structure: as per above machine photos

13) Driving type: double chain

14) Punching machine feeding table: with auto feeding system

15) Punching machine productivity: 40-60 times/min

16) Punching mould material: Gr12

17) Control system: Taiwan Delta PLC computer control system

18) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

Bracket Roll Forming Machine TECHNOLOGY

3T hydraulic decoiler→leveling machine→63-ton punching machine with auto feeding device→guiding platform→main roll forming machine→hydraulic cutting system→2m output table, two 11kw electric-motors, hydraulic station with 5.5kw electric motor, PLC control system

SALES TERMS

1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3). Package: naked with simple plastic film and loaded in one 20-feet container

4). Delivery time: 50 working days after receipt of the deposit

5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.

6). After sales service

This producing line is maintained free of charge for 12 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad, and pay 100USDdayperson.
