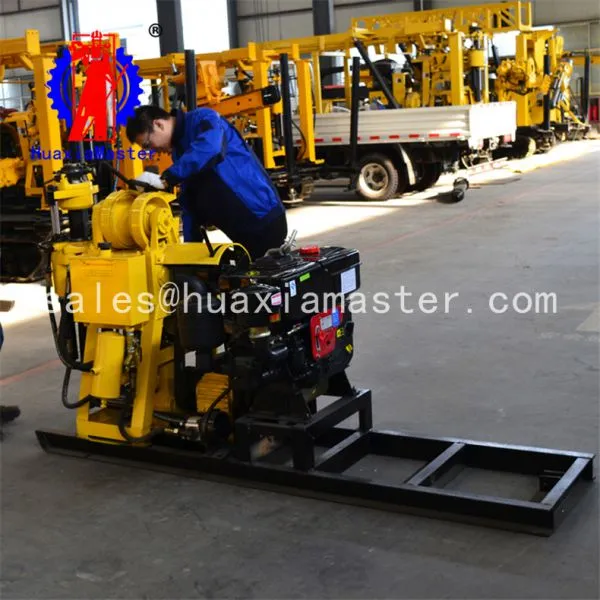

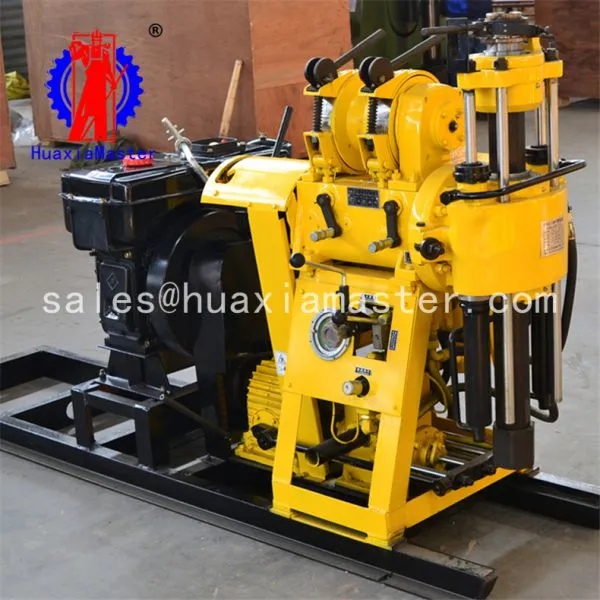

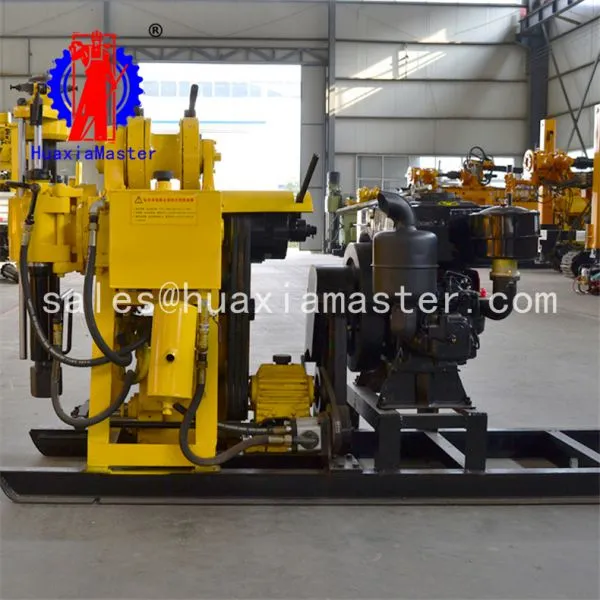

Help CenterThe HZ-130Y Hydraulic Core Sampling Drill Can be Built to a Depth of 130 Meters
Related Products
-
Popular Large Civil 200 Meters Truck Type Water Well Drilling Rig Multi-function Hydraulic Truck Vertical Shaft Rotary Type RigUS$ 1600 - 1700MOQ: 1 Set -
It is Convenient to Lift Geological Sampling Rig Small - Scale Exploration Machine Saves Time and Effort With Manual HoistUS$ 1600 - 1900MOQ: 1 Set
-
High Quality XYX-3 Wheeled Mobile Hydraulic Rotary Water Well Drilling Rig On Sale in Low PricesUS$ 1200 - 1600MOQ: 1 Set
-
HZ-200Y Hydraulic Core Drilling Rig Foundation Exploration Drilling MachineUS$ 1500 - 1600MOQ: 1 Set
-
Portable Crawler Type Easy to Start Without Hurting the Road Surface Rig Hydraulic Slide Frame Type Water Well High Support LegUS$ 1200 - 1300MOQ: 1 Set
1.Applications of HZ-130Y hydraulic water well drilling rig
· civil water well
· geological survey and exploration
· basic exploration for roads
· high-rise buildings
· inspection holes for various concrete structures
· river embankments
· grouting holes
· direct grouting,
· ground temperature central air conditioners.
2. Features of HZ-130Y hydraulic water well drilling rig
· Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
· Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
· This drilling rig adopts the conical clutch, which has the characteristics of large transmission torque, convenient operation and no maintenance required.
· Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
3. Specifications of HZ-130Y hydraulic water well drilling rig
HZ-130Y hydraulic water well drilling rig | |
Drilling depth |
130m |
Maximum open hole caliber |
220mm |
End hole caliber |
75mm |
Drill rod caliber |
50mm |
Drilling angle |
90-75° |
Drill weight (Not include power) |
750kg |
Spindle | |
Spindle speed |
142、285、570r/min |
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Tightrope caliber |
27m |
Mud pump | |
Type |
Horizontal single urn twin-action |
Electric motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
href="" Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
