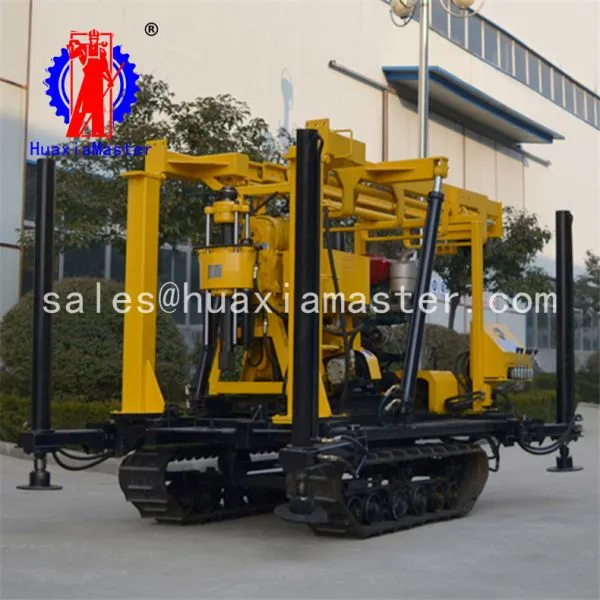

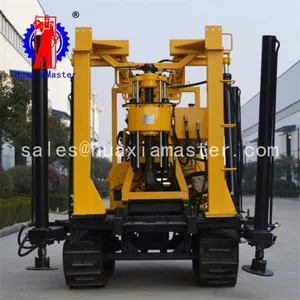

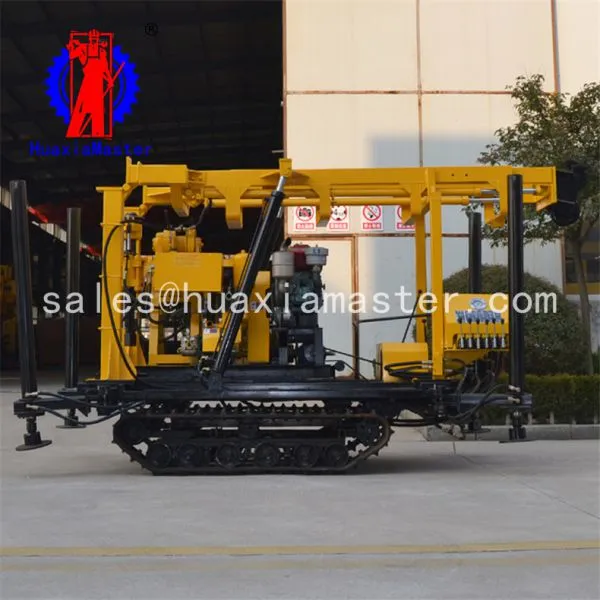

Help CenterXYD-130 Strong Recommend Full Hydraulic Crawler Drilling Rig Water Well Drilling Rig in China on Sale
Related Products
-
Huaxiamaster Cheap Price HZ-130Y Water Well Drilling Rig 130m Deep Mobile Small Hydraulic Water Well Drilling Rig EquipmentUS$ 4200 - 5200MOQ: 1 Set -
HZ-130YY Hydraulic Water Well Drilling Rig Adds Shifting Slipway Easy to Move 100 Meters Well Drilling Rig for SaleUS$ 4500 - 5500MOQ: 1 Set
-
XYX-130 Wheeled Hydraulic Water Well Drilling Rig Easy to Move Trailer Type Water Well Drilling Rig for SaleUS$ 4500 - 5500MOQ: 1 Set
-
Crawler Hydraulic Rotary Drilling Machine 130m Depth Water Well Drilling Rig Machine On SaleUS$ 12200 - 13200MOQ: 1 Set
-
HZ-200Y High Power Agricultural Household Drilling Machine Deep Well Drilling RigUS$ 6000 - 7000MOQ: 1 Set
1. The features of XYD-130 crawler hydraulic water well drilling rig
The XYD-130 crawler hydraulic water well drilling rig adopts the automatic Telescopic style with two high strength oil cylinder support, a set of hydraulic valve control rigs operating supine, which is time-saving, safe and reliable to maximize the benefits for users.
The chassis adopts rubber track, light weight and low life cycle cost, which can reduce noise of vehicle running mechanism, reduce car body vibration, and reduce fuel consumption greatly. It can walk on urban roads without hurting the road surface.

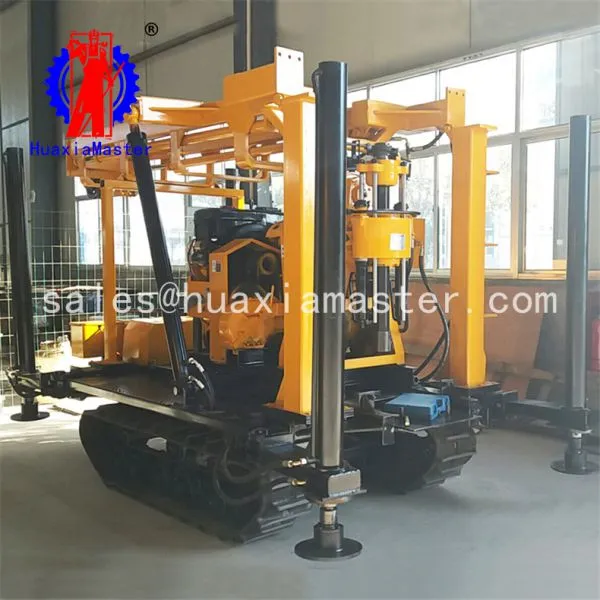

The crawler hydraulic water well drilling rig is equipped with four high strength threaded legs (or hydraulic high leg). The installation and adjustment is fast and convenient. It can be used for leveling of work plane, loading and unloading vehicle, which reduces the hoisting cost and improves efficiencyand works as auxiliary support.

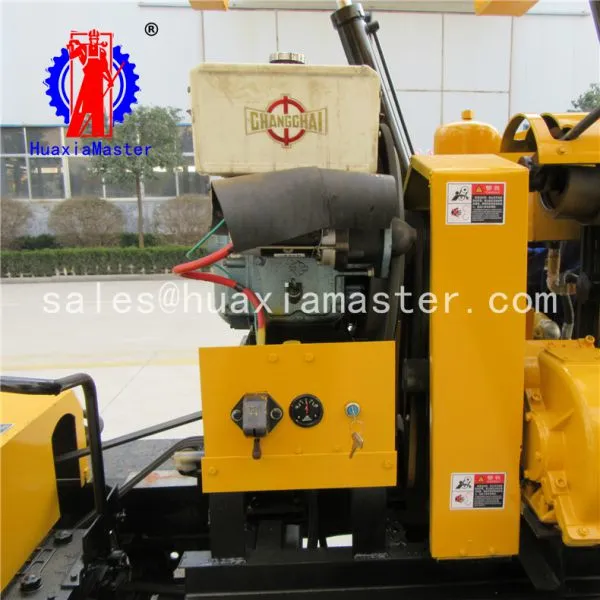

The crawler hydraulic water well drilling rig uses 48V electricty to start the diesel engine , which greatly reduces the labor usage, especially in the cold season. When the diesel engine has difficulty activiting, this starting mode shows greater advantages.
2. Technical parameters of XYD-130 crawler hydraulic water well drilling rig
XYD-130 crawler hydraulic water well drilling rig | |
Drilling depth |
130m |
Maximum opening diameter |
220mm |
Diameter of the end hole |
75mm |
Drilling rod caliber |
50mm |
Drilling angle |
90°-75° |
Drill weight (no include power) |
2600kg |
Spindle | |
Spindle speed |
142/285/570r/min |
Spindle stroke |
450mm |
Windlass | |
Max single line hoisting capacity |
1600kg |
Single line lifting speed |
0.41/0.82/1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Wire rope capacity |
27m |
Mud pump | |
Type |
horizontal single urn twin-action |
Displacement |
95 /77L/min |
Maximum pressure |
1.2mpa |
Work pressure |
0.7mpa |
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
Shandong Master Machinery Group Co.,Ltd.
Sales Manager:Candice Cheng
Tel:0086-537-2335787
Mob: 0086-18865479502
Wechat:008618865479502
Whatsapp:008618865479502
QQ:1447852867
E-mail:sale02@huaxiamaster.com
Website:
