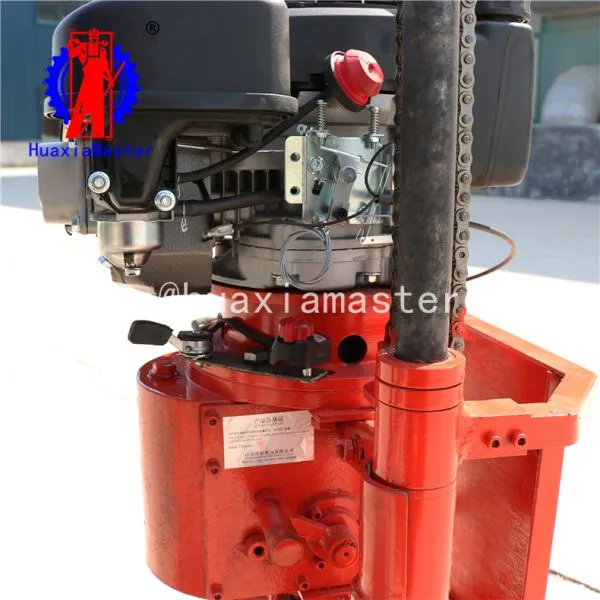

Help CenterIt is Convenient to Lift Geological Sampling Rig Small - Scale Exploration Machine Saves Time and Effort With Manual Hoist
Related Products
-
High Quality XYX-3 Wheeled Mobile Hydraulic Rotary Water Well Drilling Rig On Sale in Low PricesUS$ 1200 - 1600MOQ: 1 Set -
HZ-200Y Hydraulic Core Drilling Rig Foundation Exploration Drilling MachineUS$ 1500 - 1600MOQ: 1 Set
-
Portable Crawler Type Easy to Start Without Hurting the Road Surface Rig Hydraulic Slide Frame Type Water Well High Support LegUS$ 1200 - 1300MOQ: 1 Set
-
Civilian Small Pneumatic Drill Mechanical Equipment Wheel Portable Drill Well Rig Efficiency Quick 150 m Track Pneumatic RigUS$ 5800 - 5900MOQ: 1 Set
-
Economical Mining and Quarry Used Borehole Portable Rock Drilling Machine/core Drilling Rig Manufacturers for Sale in JapanUS$ 1600 - 1900MOQ: 1 Set
1. Brief introductions of QZ-2C gasoline engine sampling drilling rig
QZ-2C gasoline engine sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.
QZ-2C gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2. Technical parameters of QZ-2C gasoline engine sampling drilling rig
QZ-2C gasoline engine sampling drilling rig | ||
Bottom hole diameter (mm) |
32-91 |
|
|
Drilling depth（m） |
soil layer φ91：10-15m φ91：5-10m lithosphereφ75：10-15m lithosphereφ60：15-20m lithosphereφ46：20-30m |
|
Drilling pipe diameter (mm) |
30 |
|
Gasoline engine |
horse power(hp） |
6(4.5kw) |
displacement（cc） |
224 |
|
Dimension（l*w*h） |
600*450*1900 |
|
Weight（kg） |
95 |
|
3. Configuration list of QZ-2C gasoline engine sampling drilling rig
Item |
Parameter |
Unit |
Quantity |
Gasoline engine sampling drilling rig |
QZ-2C |
set |
1 |
Drilling pipe |
30*1500 |
pc |
6 |
Drilling pipe |
30*800 |
pc |
14 |
Pipe joint |
38 |
pc |
20 |
Reducing nipple |
58/38 |
pc |
2 |
Core barrel |
58*800 |
pc |
1 |
Core barrel |
58*1500 |
pc |
1 |
Alloy bit |
60 |
pc |
1 |
Diamond bit |
60 |
pc |
1 |
Reducing nipple |
73/38 |
pc |
2 |
Core barrel |
73*800 |
pc |
1 |
Alloy bit |
75 |
pc |
1 |
Diamond bit |
75 |
pc |
1 |
Three-wing bit |
75 |
pc |
1 |
Safety clamp |
pc |
1 |
|
Water seal |
Y 30*50*10 |
pc |
4 |
Oil seal |
30*50*10 |
pc |
1 |
Pipe wrench |
18 |
pc |
2 |
Monkey wrench |
pc |
1 |
|
Shaft snap ring clamp |
pc |
1 |
|
Hole snap ring clamp |
pc |
1 |
|
Clamp |
pc |
1 |
|
Cross screwdriver |
pc |
1 |
|
Hex wrench |
pc |
1 |
|
Control wheel |
pc |
1 |
If you need a wooden base, a high pressure pump, and a high pressure water pipe, please specify.
