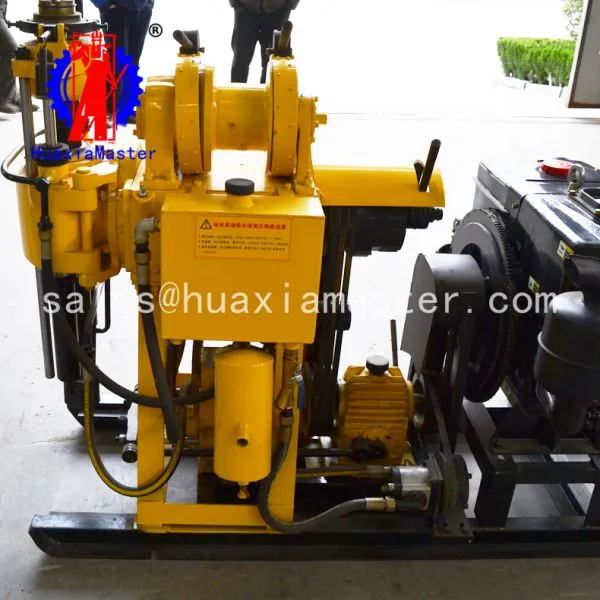

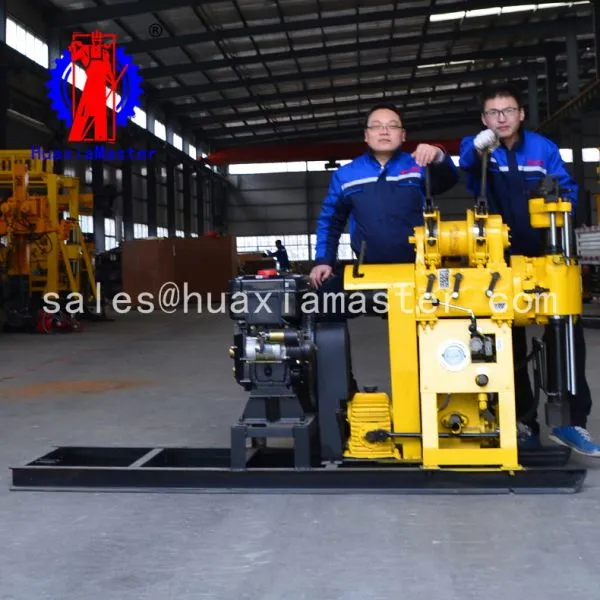

Help CenterHZ-200Y Hydraulic Core Drilling Rig Foundation Exploration Drilling Machine
Related Products
-
Portable Crawler Type Easy to Start Without Hurting the Road Surface Rig Hydraulic Slide Frame Type Water Well High Support LegUS$ 1200 - 1300MOQ: 1 Set -
Civilian Small Pneumatic Drill Mechanical Equipment Wheel Portable Drill Well Rig Efficiency Quick 150 m Track Pneumatic RigUS$ 5800 - 5900MOQ: 1 Set
-
Economical Mining and Quarry Used Borehole Portable Rock Drilling Machine/core Drilling Rig Manufacturers for Sale in JapanUS$ 1600 - 1900MOQ: 1 Set
-
Low Price New Design Portable Well Drilling Rig Drilling Equipment With Good for SaleUS$ 1500 - 1600MOQ: 1 Set
-
Water Borehole Drilling Machine XY-180 , Borewell Drilling Machine , Drilling Rigs WaterUS$ 1500 - 1800MOQ: 1 Set
1. Applications of HZ-200Y hydraulic water well drilling rig
Civil water well,geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting, ground temperature central air conditioners.
2. Features of HZ-200Y hydraulic water well drilling rig
· adopts 53*59 hexagon drilling, which has high rigidity and strong delivery torque.
· the drilling rig is equipped with taper clutch, with the charactristics of strong transmission troque, easy operation and free of maintenance.
· for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
· vertical spindle are fixed by four groups of bearings to ensure that the water well drilling rig is rigid enough for gravel layer and other complex geological conditions.
· we are the first one to equip mud pump with the flow 160L/min in China so that it will save cost and also make the machine compct, moblie and light in weight.
3. Specifications of HZ-200Y hydraulic water well drilling rig
HZ-200Y hydraulic water well drilling rig | |
Drilling depth |
200m |
Max open hole caliber |
300mm |
End hole caliber |
75mm |
Drill rod caliber |
60mm |
Drilling angle |
90°-75° |
Drill weight(without power) |
1100kg |
Triangle conveyer belt |
B950*4 B1700*3 |
The main machine moving distance |
300mm |
Power |
Diesel engine 22HP Electric motor 15kw |
Spindle | |
Spindle speed |
64/128/287/557 r/min |
Spindle stroke |
450mm |
Hoist | |
Max.lifting capacity |
2400kg |
Single line lifting speed |
0.41/ 0.82/1.64m/s |
Wirerope caliber |
13mm |
Wirerope length |
35m |
Hug floodgate caliber |
260mm |
Hug floodgate belt width |
70mm |
Mud pump | |
Type |
Horizontal single-urn twin-action |
Displacement |
Diesel engine 170L/min Electric motor 150L/min |
Maximum pressure |
3Mpa |
Work pressure |
1.5Mpa |
Inlet pipe caliber |
40mm |
Outlet pipe caliber |
30mm |
Triangle conveyer belt |
B1728mm |
Mud pump | |
Type |
CBT—F—314 |
Triangle conveyer belt |
B1100× 1 |
