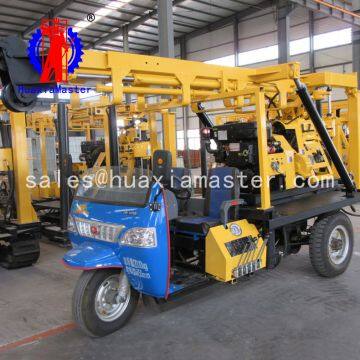

Help CenterSupply Hydraulic Household Well Digging Rig Agricultural Tricycle Travel Around the Countryside Convenient 200 Meters to Dig
Related Products
-
New Design QZ-2DS Mini Drilling Rig Hoist Type Core Geological Prospecting Drilling RigUS$ 4500 - 5000MOQ: 1 Set -
High Quality Simple to Operate Rock Electric Drilling Rig KHYD75 Borehole Drilling Machine/mining MachineryUS$ 1200 - 1300MOQ: 1 Set
-
XYX-130 Wheeled Core Sample Machine Hydraulic Rotary Water Well Drilling Rig Convenient and QuickUS$ 4500 - 5000MOQ: 1 Set
-
200 Meter Hydraulic Drilling Machine Geological Exploration Core Drilling RigUS$ 4500 - 5000MOQ: 1 Set
-
Small Portable Core Exploration Rig QZ-2D Electric Shallow Core Drilling Rig is Simple to Operate and EfficientUS$ 4500 - 5000MOQ: 1 Set

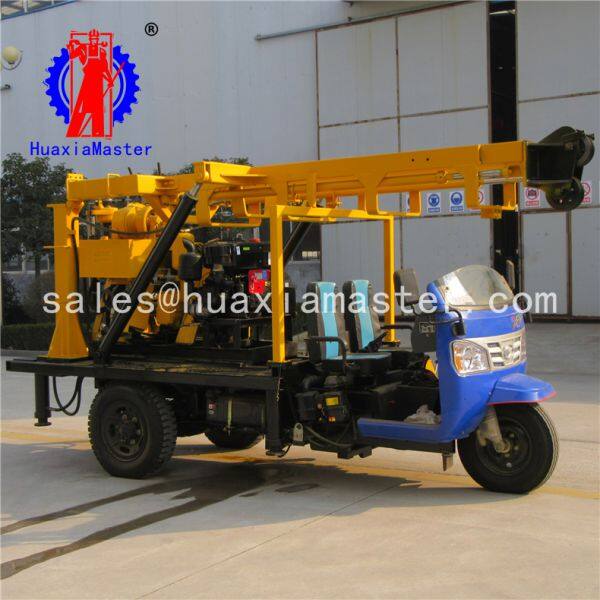

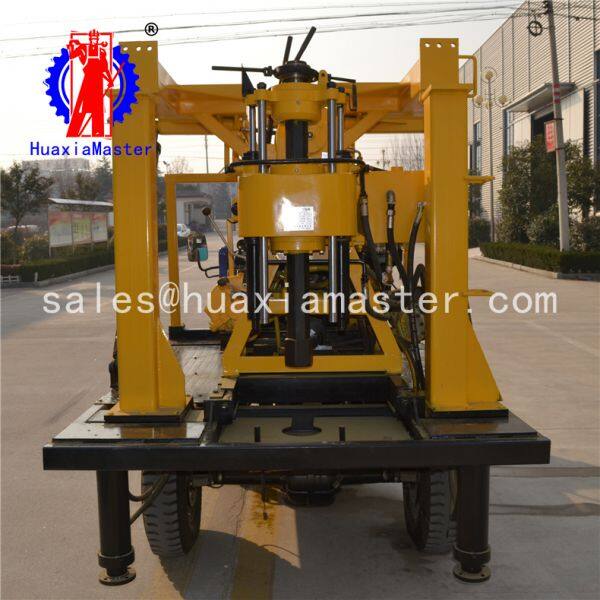

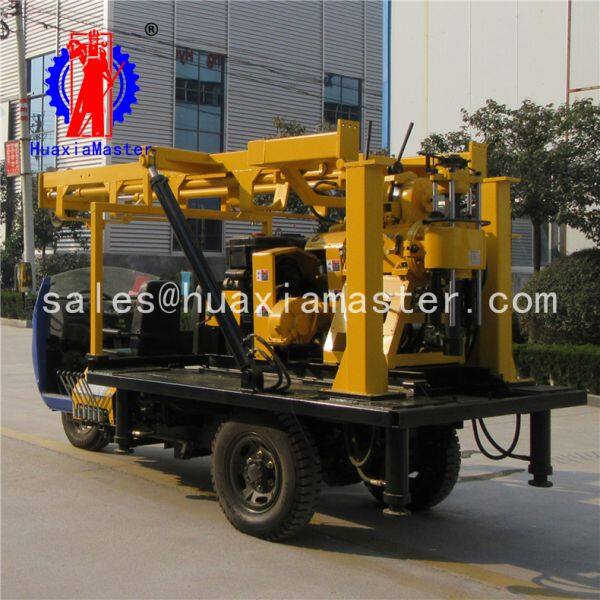

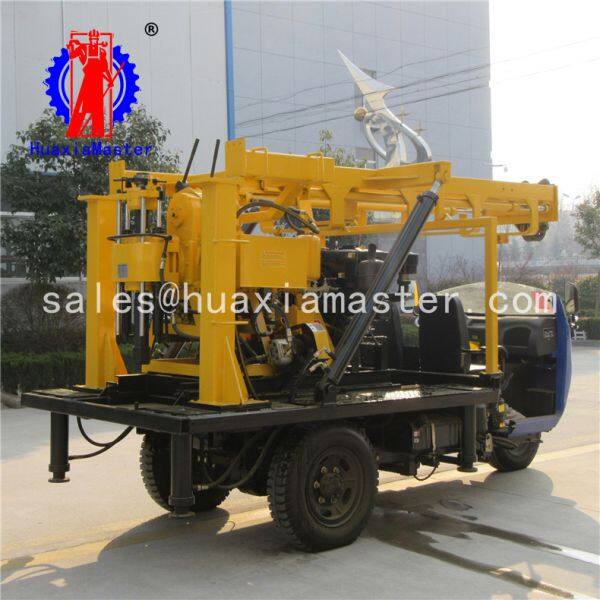

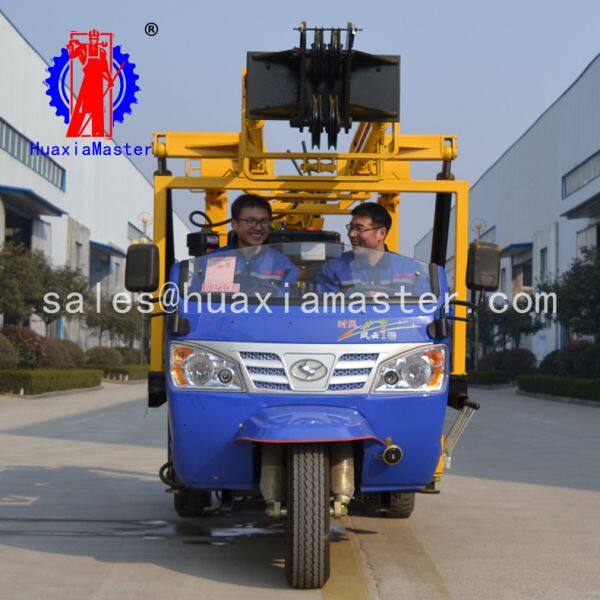

XYC-200A tricycle drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil wells and earth temperature central air-conditioner.
1. Characteristic of XYC-200A tricycle drilling rig
a. XYC-200A tricycle drilling rigs is Multi-function hydraulic vehicle-mounted shaft rotary drilling machine .
b. The tricycle is Tricar 7YP-1475D1,drilling rig、engine、BW-160 pump and hydraulic dril tower all install on the tricycle，easy for transportation.
c. XYC-200A drilling rigs with BW160 pump, high pressure and high flux, protect the depth and hole diameter.
d.The tricycle drilling rig is equip with shift unit,drilling rig can back and forward.
e. The highest speed can reach 1045r/min with 5 gears, improved drill efficiency
f. Adopted 53x59 drilling rod, high rigidity and strong delivery torque
g. Equipped with national patent technology---taper clutch, make the machine easy to operate and free maintenance.
h.Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
i.Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
2. Technical Specification of XYC-200A tricycle drilling rig
Drilling Depth |
200m |
Max. Open Hole Diameter |
75-260mm |
End Hole Diameter(mm) |
75 |
Drill Rod Diameter |
50mm |
Drilling tower height |
6500mm |
Drilling Angle |
90-75 |
Spindle | |
Spindle Speed |
64/128/287/557r/min |
Spindle Stroke |
450mm |
Hoist | |
Max. Single Line Hoisting Capacity |
1600kg |
Single line lifting speed |
17/35/75/151r/min |
Tightrope Diameter |
12.5mm |
Tightrope Cubic Measure |
35mm |
Hug Floodgate Belt Width |
70mm |
Mud Pump | |
Type |
Horizontal Single Urn Twin-action |
Discharge/Displacement |
170L/Min. |
Diesel |
S1115 22HP |
Electric Motor |
15KW,1440r/min |
Max. Pressure |
1.5Mpa |
Work Pressure |
0.7Mpa |
Water Inlet Diameter |
30mm |
Water Outlet Diameter |
25mm |
Triangle Conveyre Belt |
B1728mm |
Chassis | |
Chassis model |
Tricar 7YP-1475D1 |
Drive mode |
Rear wheel drive |
Engine brand |
Changchai ZS1115E2. |
Rated power |
16.2KW/2200rpm |
